Removal & Installation

  1. Disconnect the negative (-) battery terminal.
  2. Remove the lower crash panel.
  3. Remove the ETACS CM from the junction block and disconnect the connectors. See Fig 1 .
  4. To install, reverse removal procedure.

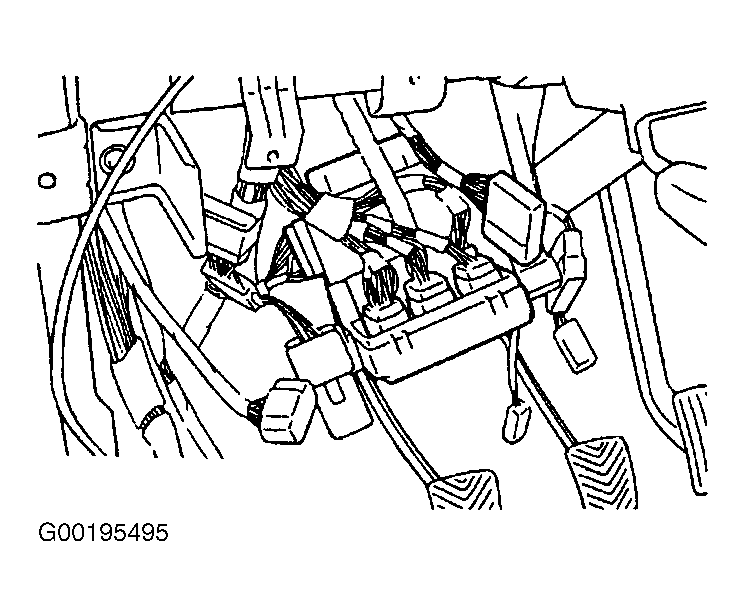

Fig 1: Removing ETACS CM From Junction Block
G00195495Courtesy of HYUNDAI MOTOR CO.
