Grounding Point: Locations

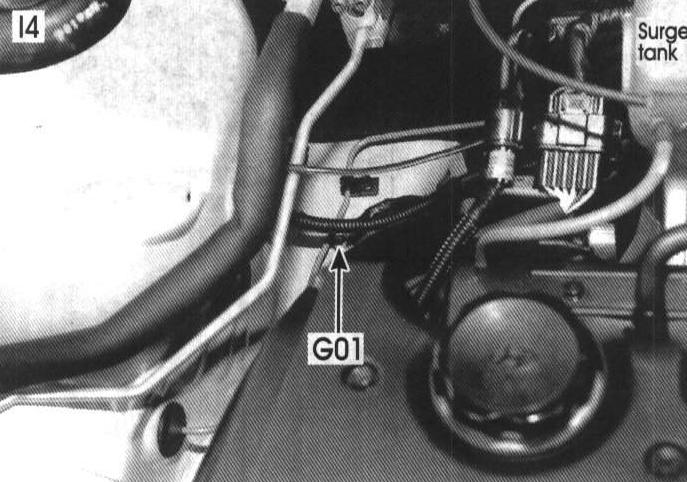

G01:

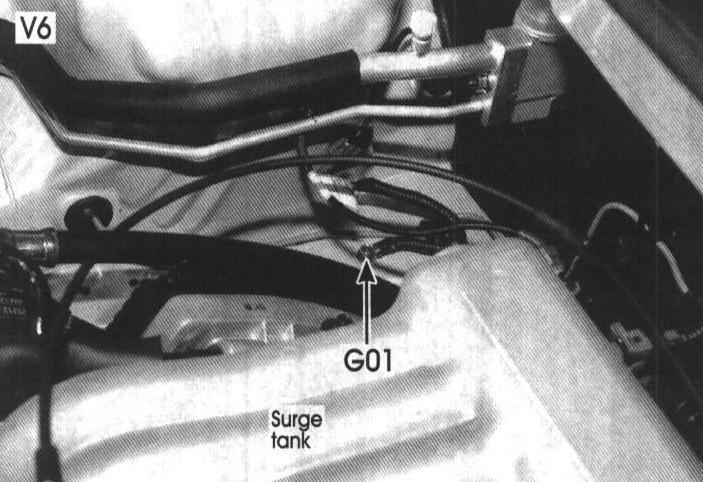

G01:

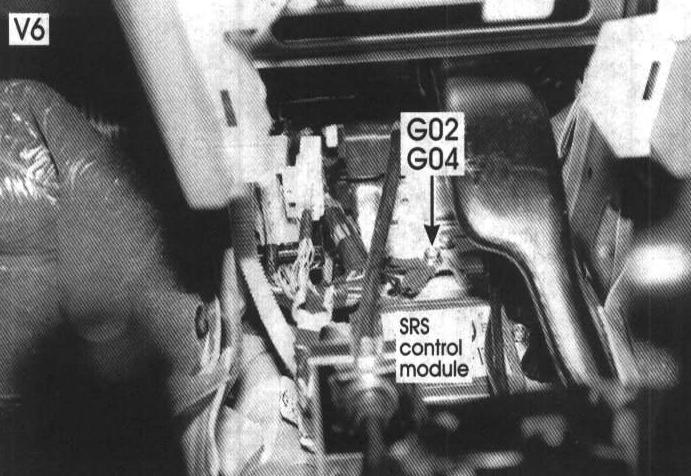

G02, G04:

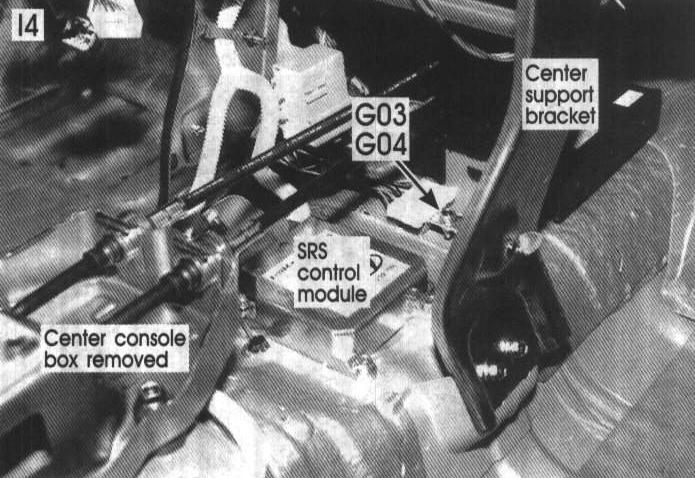

G03, G04:

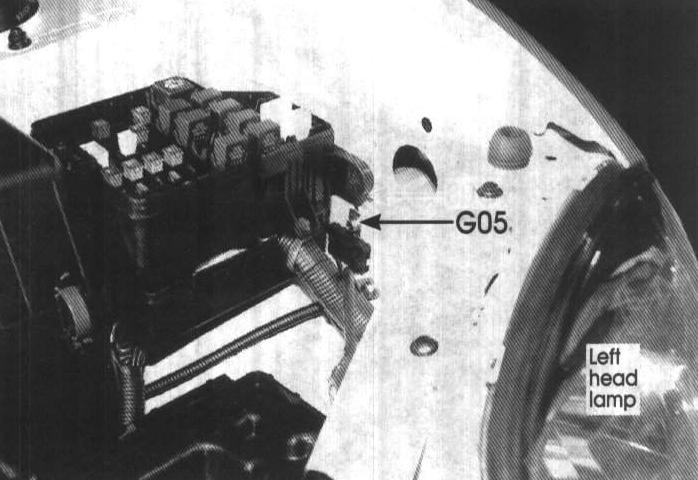

G05:

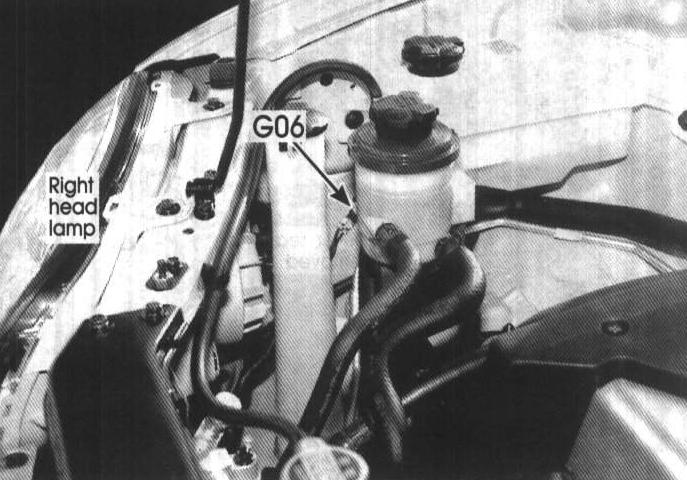

G06:

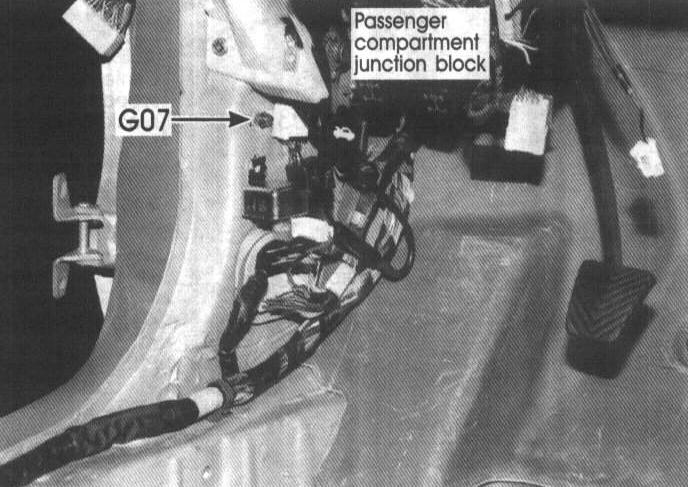

G07:

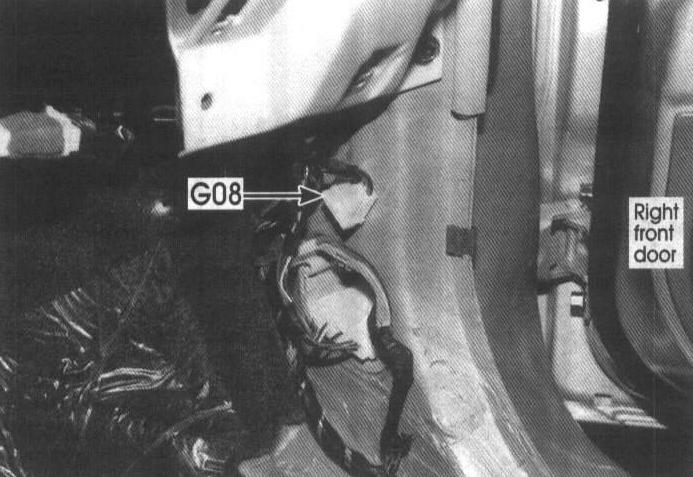

G08:

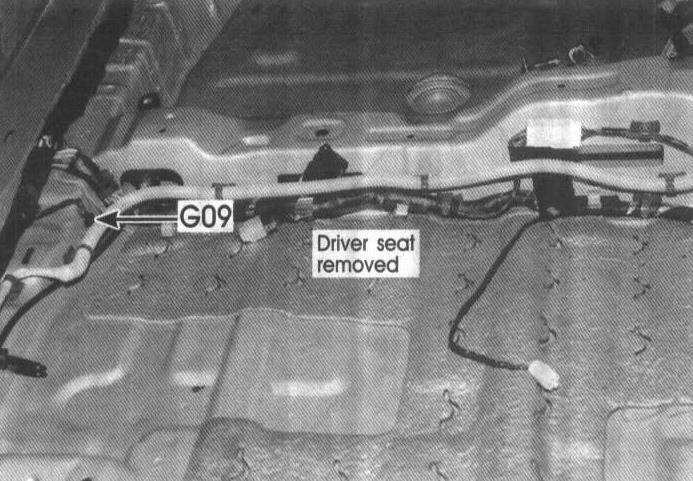

G09:

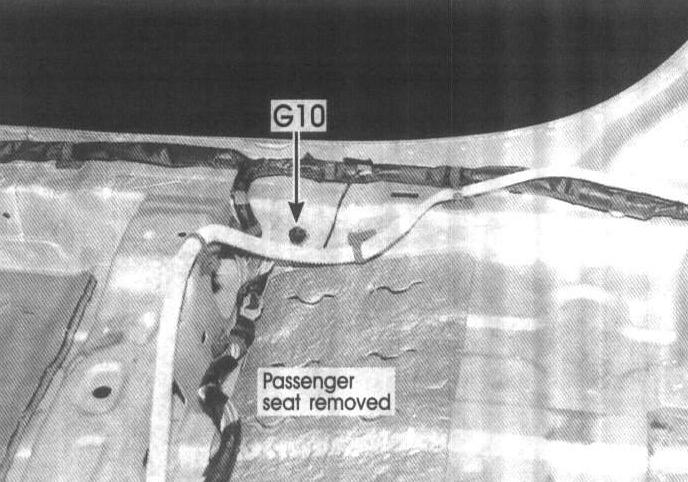

G10:

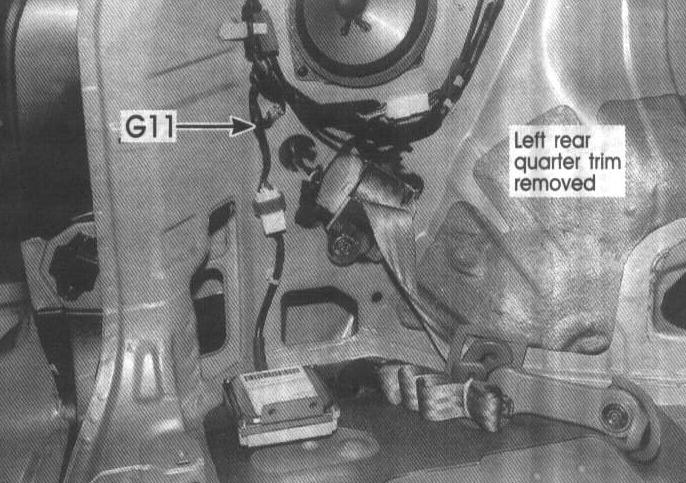

G11:

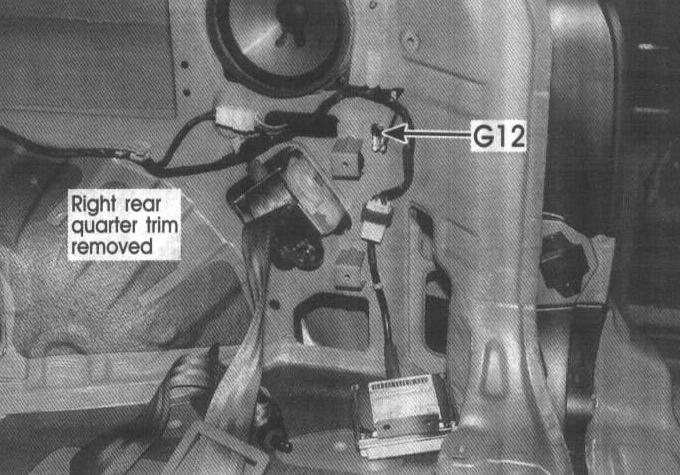

G12:

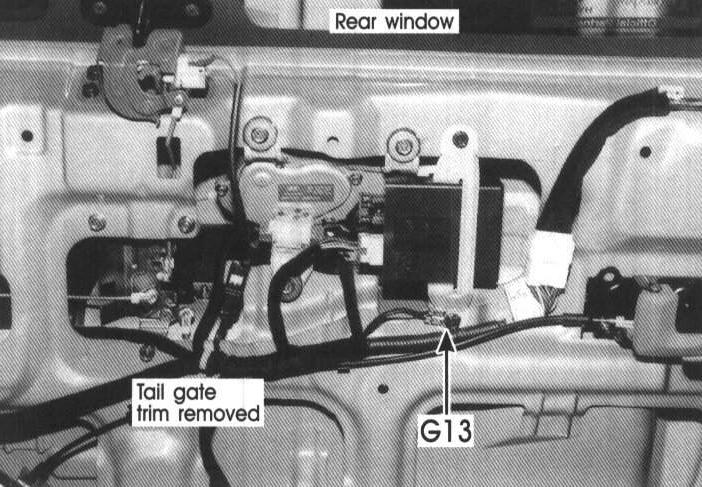

G13:

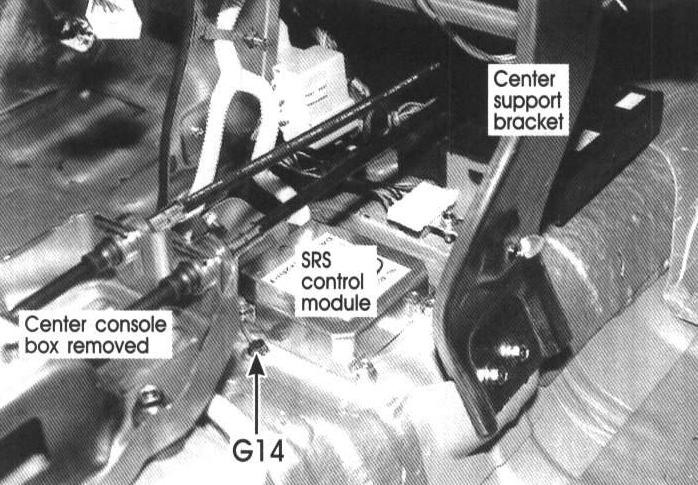

G14:

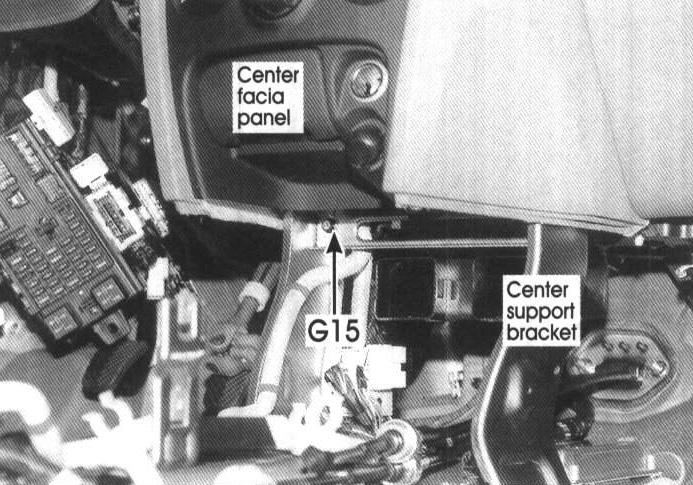

G15:
