Connector Locations

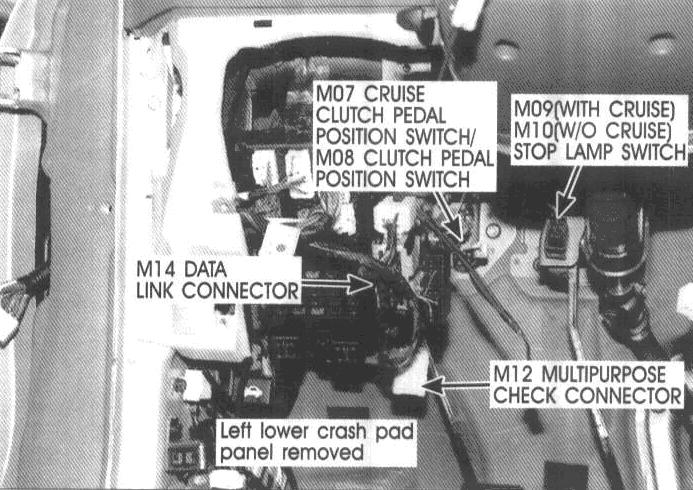

M07 Cruise Clutch Pedal Position Switch, M08 Clutch Pedal Position Switch (M/T), M09 Stop Lamp Switch (With Cruise), M10 Stop Lamp Switch (w/o Cruise), M12 Multipurpose Check Connector, M14 Data Link Connector:
