Automatic Transmission/Transaxle

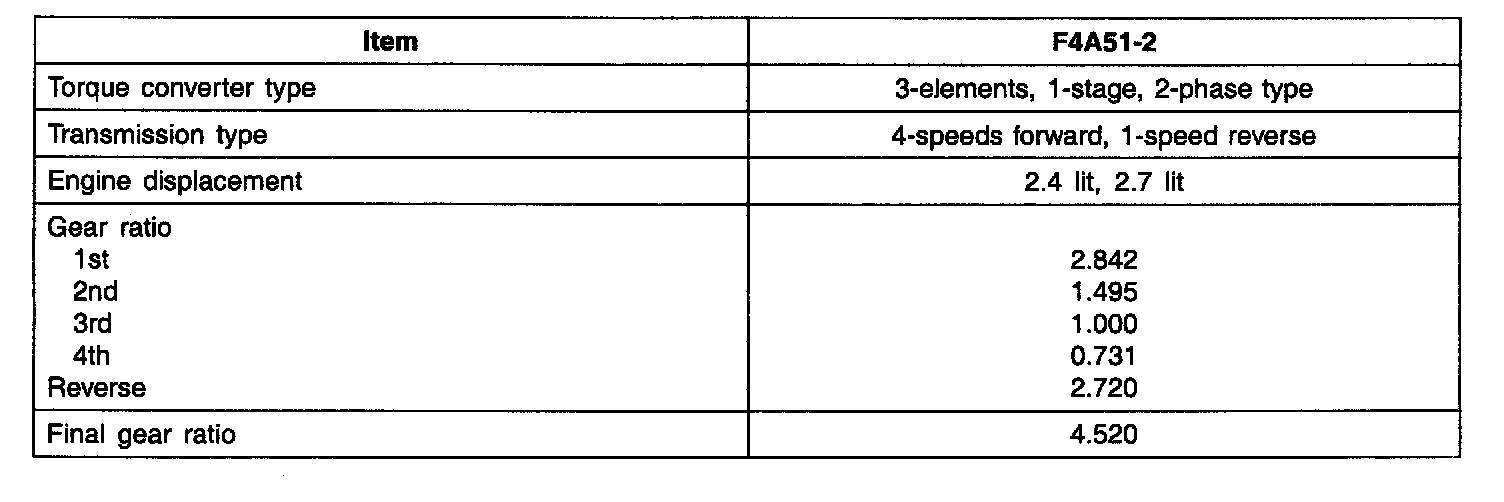

SPECIFICATIONS (A/T)





Torque converter type 3-elements, 1-stage, 2-phase type
Transmission type 4-speeds forward, 1-speed reverse
Engine displacement 2.4 lit, 2.7 lit
Gear ratio
1st 2.842
2nd 1.495
3rd 1.000
4th 0.731
Reverse 2.720
Final gear ratio 4.520

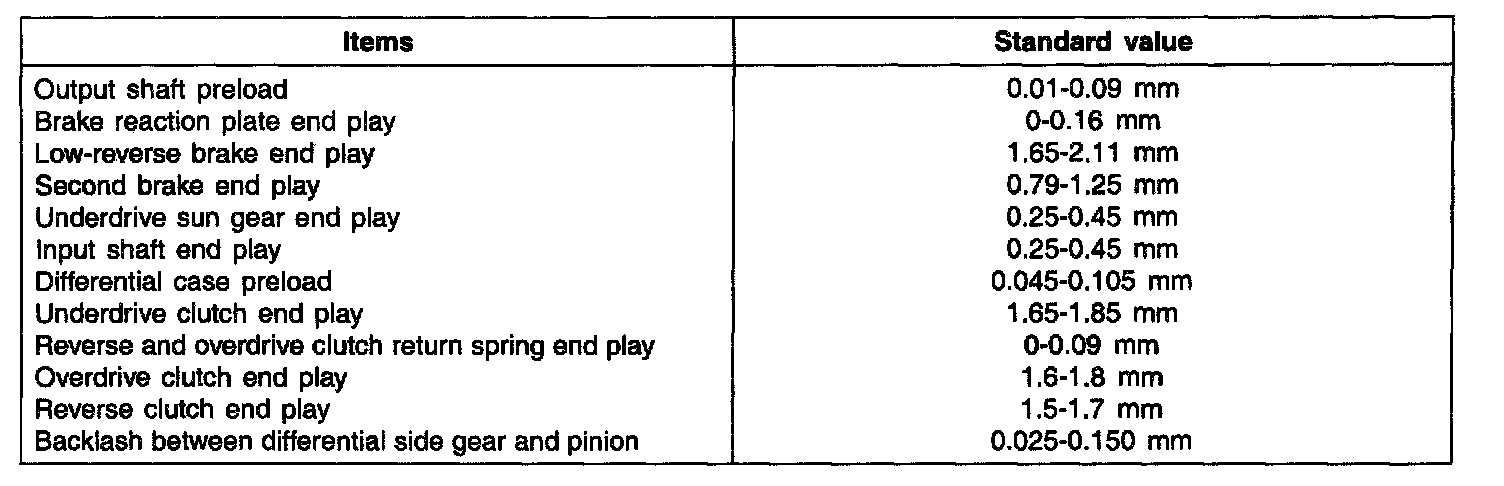

SERVICE SPECIFICATIONS





Output shaft preload 0.01 - 0.09 mm
Brake reaction plate end play 0 - 0.16 mm
Low-reverse brake end play 1.65 - 2.11 mm
Second brake end play 0.79 - 1.25 mm
Underdrive sun gear end play 0.25 - 0.45 mm
Input shaft end play 0.25 - 0.45 mm
Differential case preload 0.045 - 0.105 mm
Underdrive clutch end play 1.65 - 1.85 mm
Reverse and overdrive clutch return spring end play 0 - 0.09 mm
Overdrive clutch end play 1.6 - 1.8 mm
Reverse clutch end play 1.5 - 1.7 mm
Backlash between differential side gear and pinion 0.025 - 0.150 mm

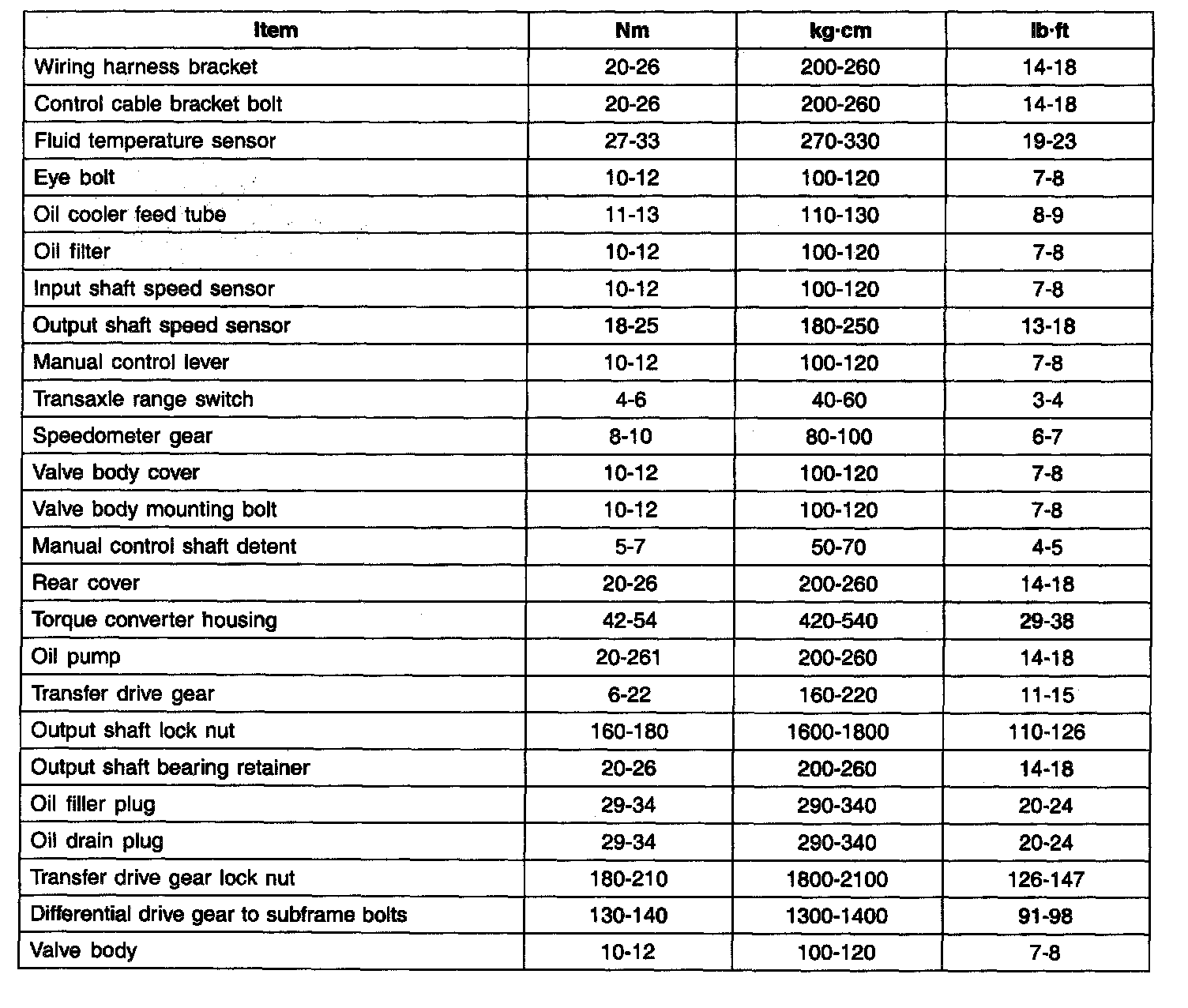

TIGHTENING TORQUE








Wiring harness bracket 20 - 26 Nm (14 - 18 ft. lbs.)
Control cable bracket bolt 20 - 26 Nm (14 - 18 ft. lbs.)
Fluid temperature sensor 27 - 33 Nm (19 - 23 ft. lbs.)
Eye bolt 10 - 12 Nm (7 - 8 ft. lbs.)
Oil cooler feed tube 11 - 13 Nm (8 - 9 ft. lbs.)
Oil filter 10 - 12 Nm (7 - 8 ft. lbs.)
Input shaft speed sensor 10 - 12 Nm 7 - 8 ft. lbs.)
Output shaft speed sensor 18 - 25 Nm (13 - 18 ft. lbs.)
Manual control lever 10 - 12 Nm (7 - 8 ft. lbs.)
Transaxle range switch 4 - 6 Nm (3 - 4 ft. lbs.)
Speedometer gear 8 - 10 Nm (6 - 7 ft. lbs.)
Valve body cover 10 - 12 Nm 7 - 8 ft. lbs.)
Valve body mounting bolt 10 - 12 Nm (7 - 8 ft. lbs.)
Manual control shaft detent 5 - 7 Nm (4 - 5 ft. lbs.)
Rear cover 20 - 26 Nm (14 - 18 ft. lbs.)
Torque converter housing 42 - 54 Nm (29 - 38 ft. lbs.)
Oil pump 20 - 261 Nm (14 - 18 ft. lbs.)
Transfer drive gear 6 - 22 Nm (11 - 15 ft. lbs.)
Output shaft lock nut 160 - 180 Nm (110 - 126 ft. lbs.)
Output shaft bearing retainer 20 - 26 Nm (14 - 18 ft. lbs.)
Oil filler plug 29 - 34 Nm (20 - 24 ft. lbs.)
Oil drain plug 29 - 34 Nm (20 - 24 ft. lbs.)
Transfer drive gear lock nut 180 - 210 Nm (126 - 147 ft. lbs.)
Differential drive gear to subframe bolts 130 - 140 Nm (91 - 98 ft. lbs.)
Valve body 10 - 12 Nm (7 - 8 ft. lbs.)

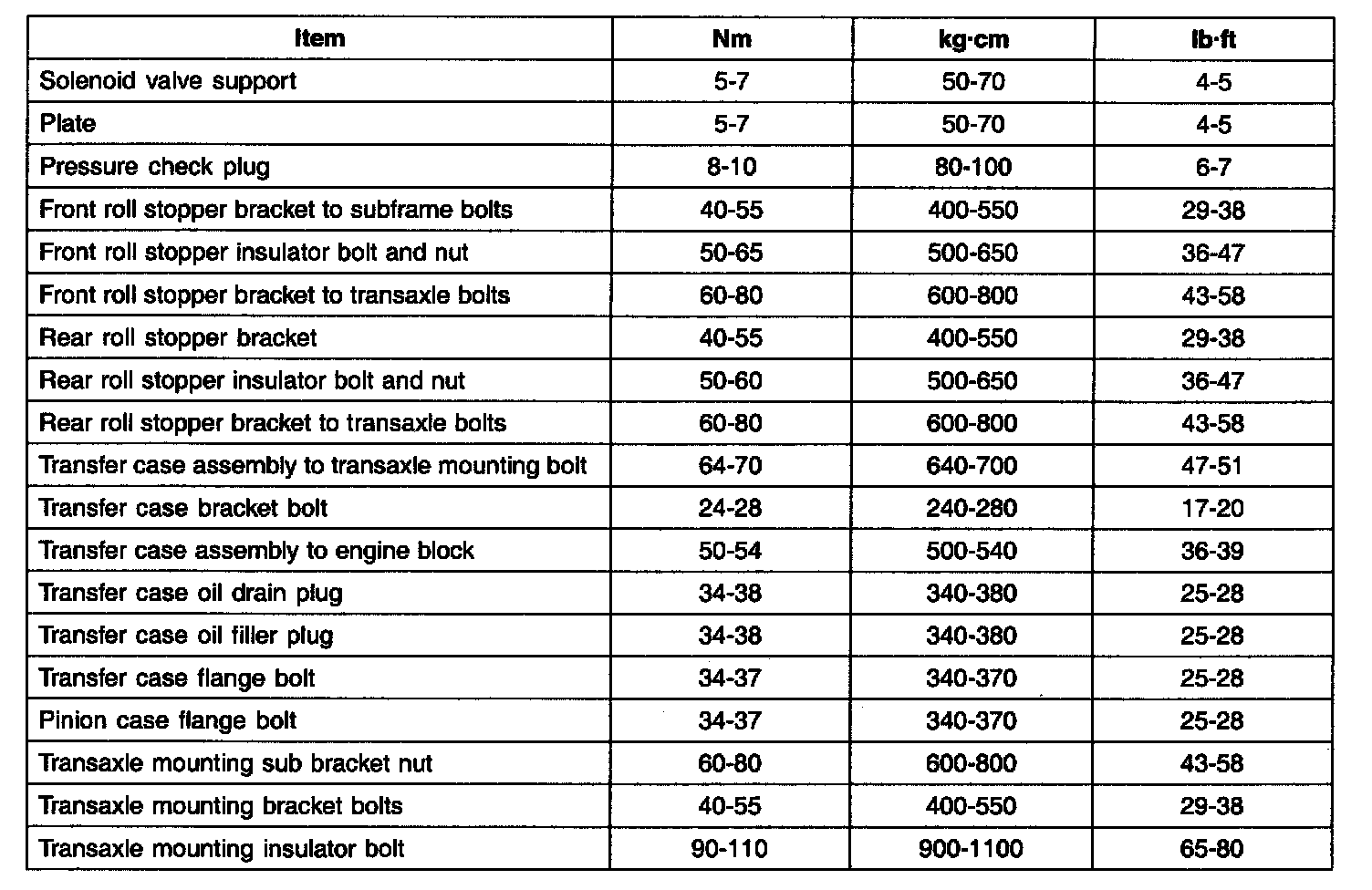

Solenoid valve support 5 - 7 Nm (4 - 5 ft. lbs.)
Plate 5 - 7 Nm (4 - 5 ft. lbs.)
Pressure check plug 8 - 10 Nm (6 - 7 ft. lbs.)
Front roll stopper bracket to subframe bolts 40 - 55 Nm (29 - 38 ft. lbs.)
Front roll stopper insulator bolt and nut 50 - 65 Nm (36 - 47 ft. lbs.)
Front roll stopper bracket to transaxle bolts 60 - 80 Nm (43 - 58 ft. lbs.)
Rear roll stopper bracket 40 - 55 Nm (29 - 38 ft. lbs.)
Rear roll stopper insulator bolt and nut 50 - 60 Nm (36 - 47 ft. lbs.)
Rear roll stopper bracket to transaxle bolts 60 - 80 Nm (43 - 58 ft. lbs.)
Transfer case assembly to transaxle mounting bolt 64 - 70 Nm (47 - 51 ft. lbs.)
Transfer case bracket bolt 24 - 28 Nm (17 - 20 ft. lbs.)
Transfer case assembly to engine block 50 - 54 Nm (36 - 39 ft. lbs.)
Transfer case oil drain plug 34 - 38 Nm (25 - 28 ft. lbs.)
Transfer case oil filler plug 34 - 38 Nm (25 - 28 ft. lbs.)
Transfer case flange bolt 34 - 37 Nm (25 - 28 ft. lbs.)
Pinion case flange bolt 34 - 37 Nm (25 - 28 ft. lbs.)
Transaxle mounting sub bracket nut 60 - 80 Nm (43 - 58 ft. lbs.)
Transaxle mounting bracket bolts 40 - 55 Nm (29 - 38 ft. lbs.)
Transaxle mounting insulator bolt 90 - 110 Nm (65 - 80 ft. lbs.)





LUBRICATIONS

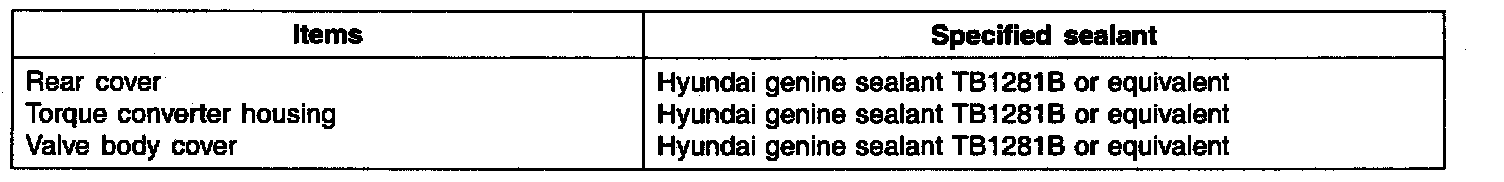

SEALANTS

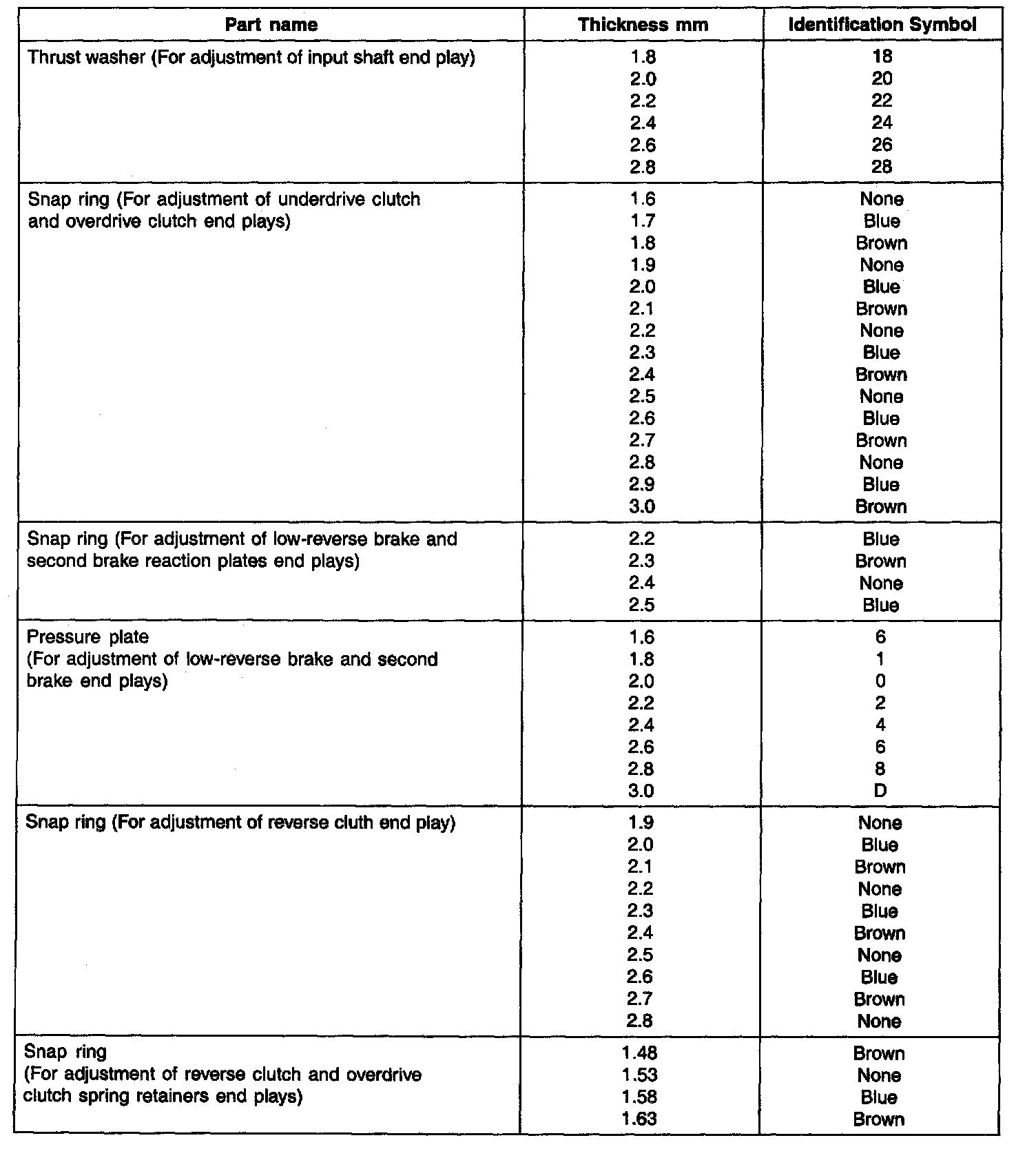

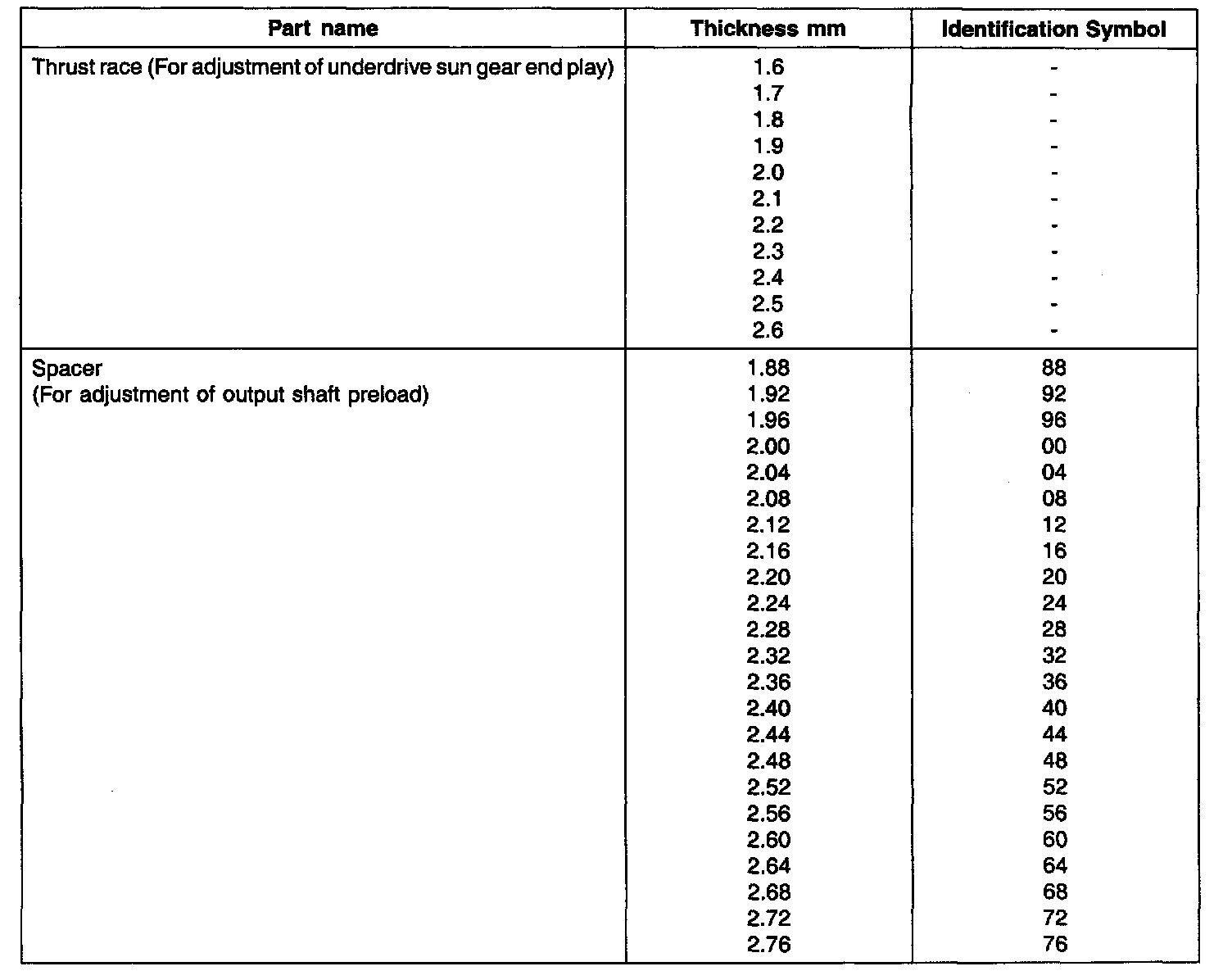

SNAP RING FOR ADJUSTMENT AND SPACER
