System Components

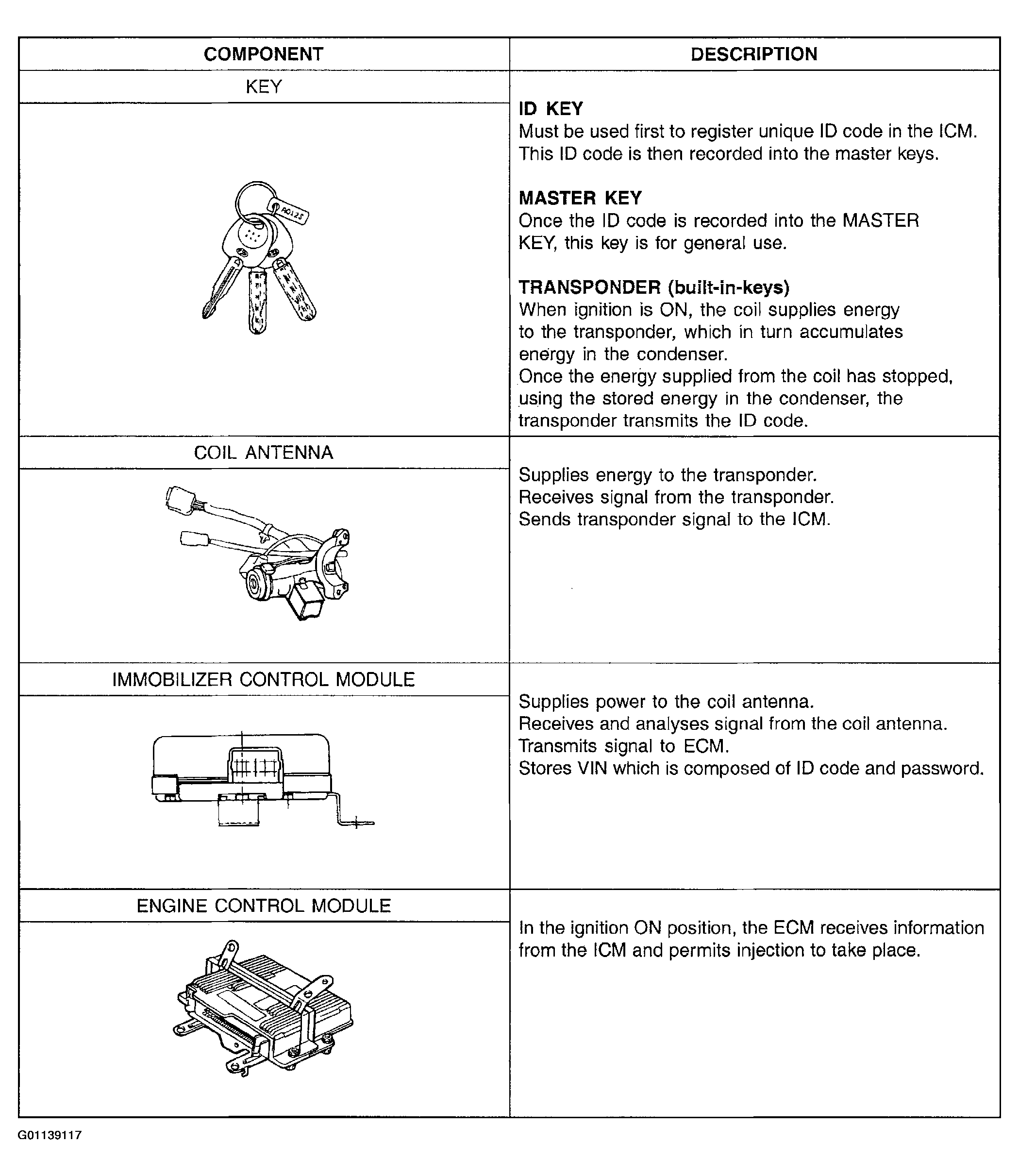

Fig 1: System Components Chart (1 Of 2)
G01139117Courtesy of HYUNDAI MOTOR CO.

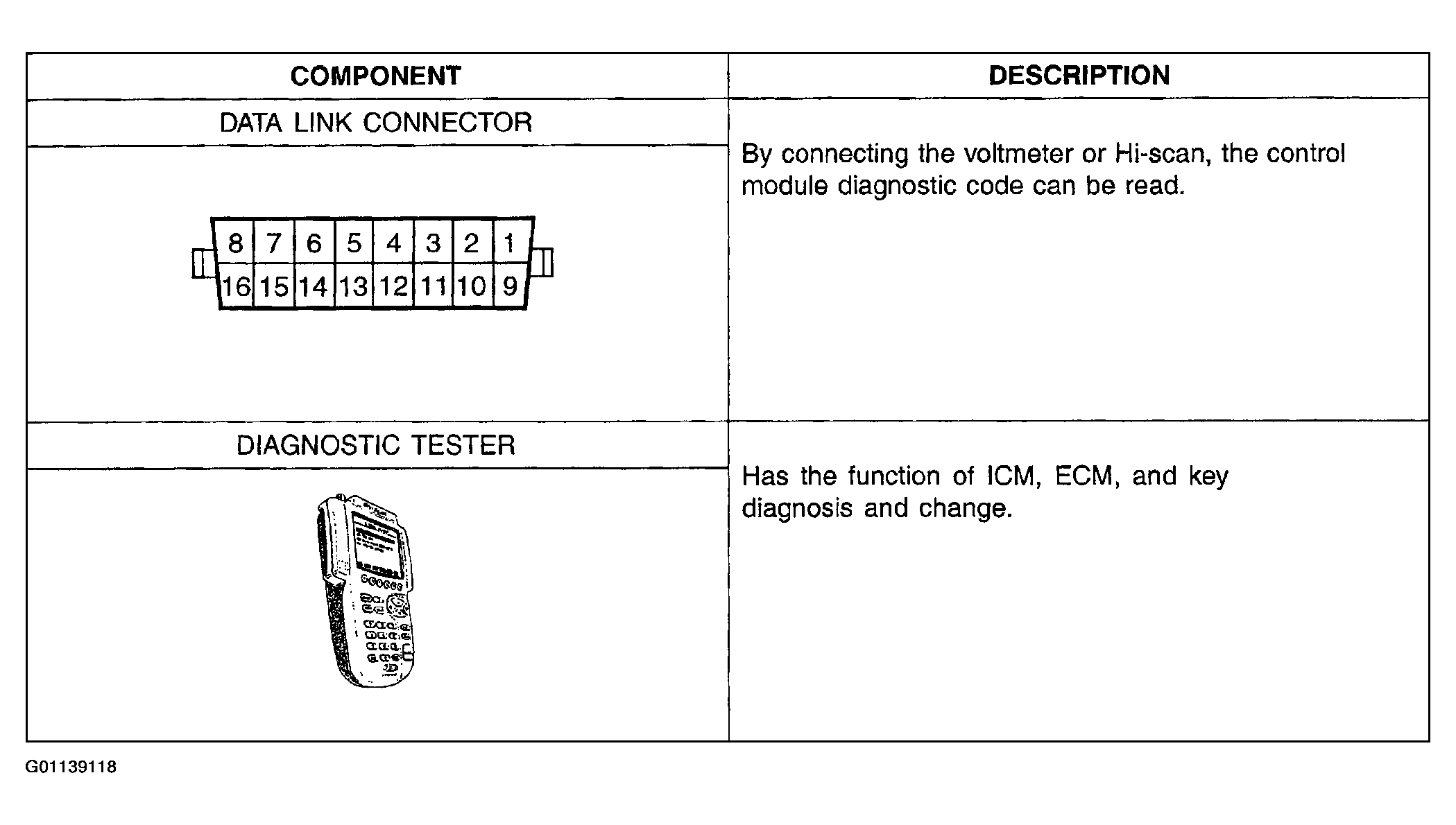

Fig 2: System Components Chart (2 Of 2)
G01139118Courtesy of HYUNDAI MOTOR CO.
