Troubleshooting (A/T): Notes

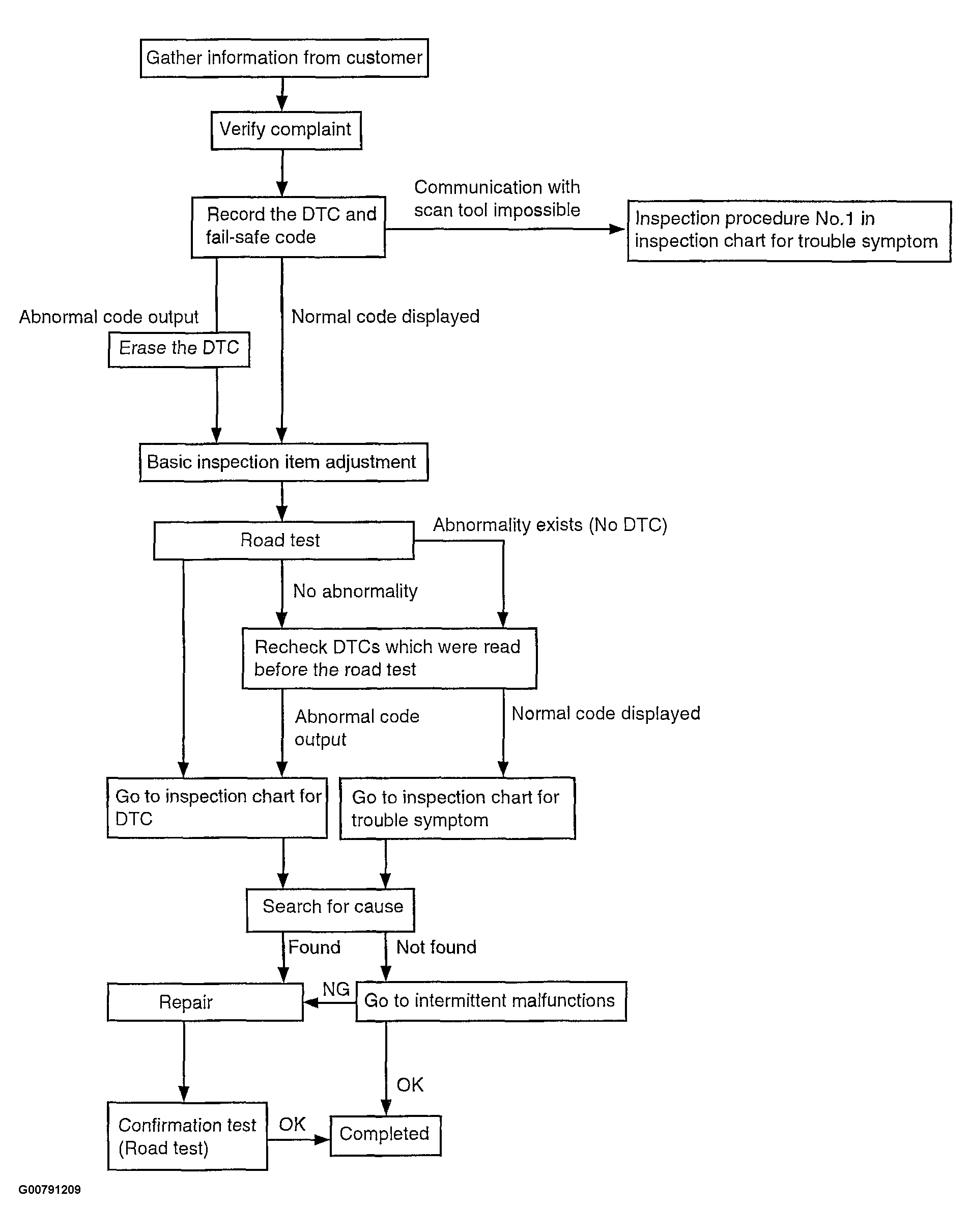

Fig 1: Troubleshooting (A/T) Flow Chart

G00791209

Courtesy of HYUNDAI MOTOR CO.
