Power Window Sub Switch

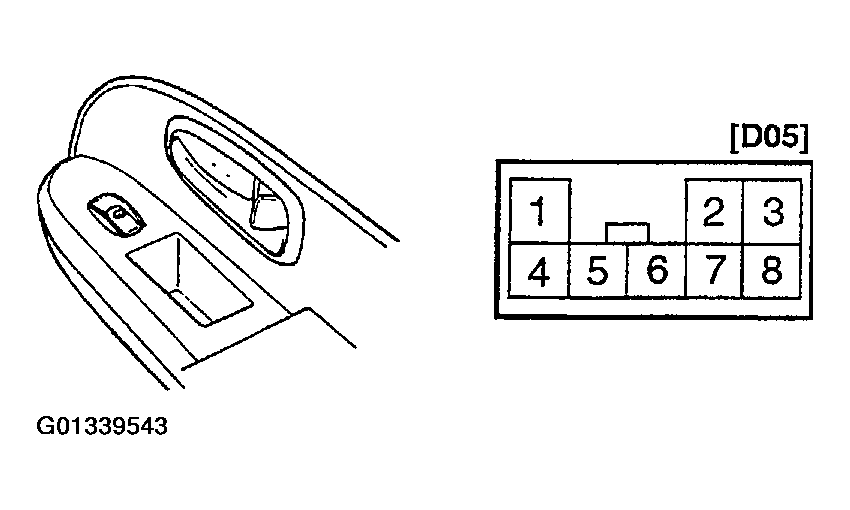

Fig 1: Identifying Power Window Sub Switch Connector Terminals
G01339543Courtesy of HYUNDAI MOTOR CO.

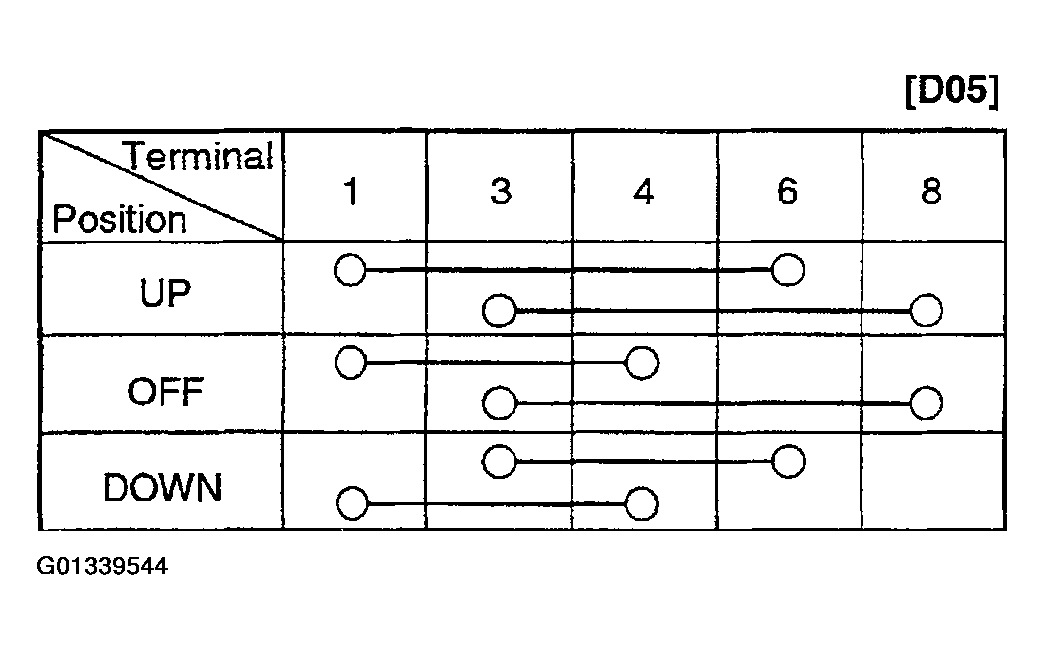

Fig 2: Power Window Sub Switch Continuity Table
G01339544Courtesy of HYUNDAI MOTOR CO.
