DTC P1723: A/T Control Relay System

WARNING: This page is about a different variant/trim than selected.

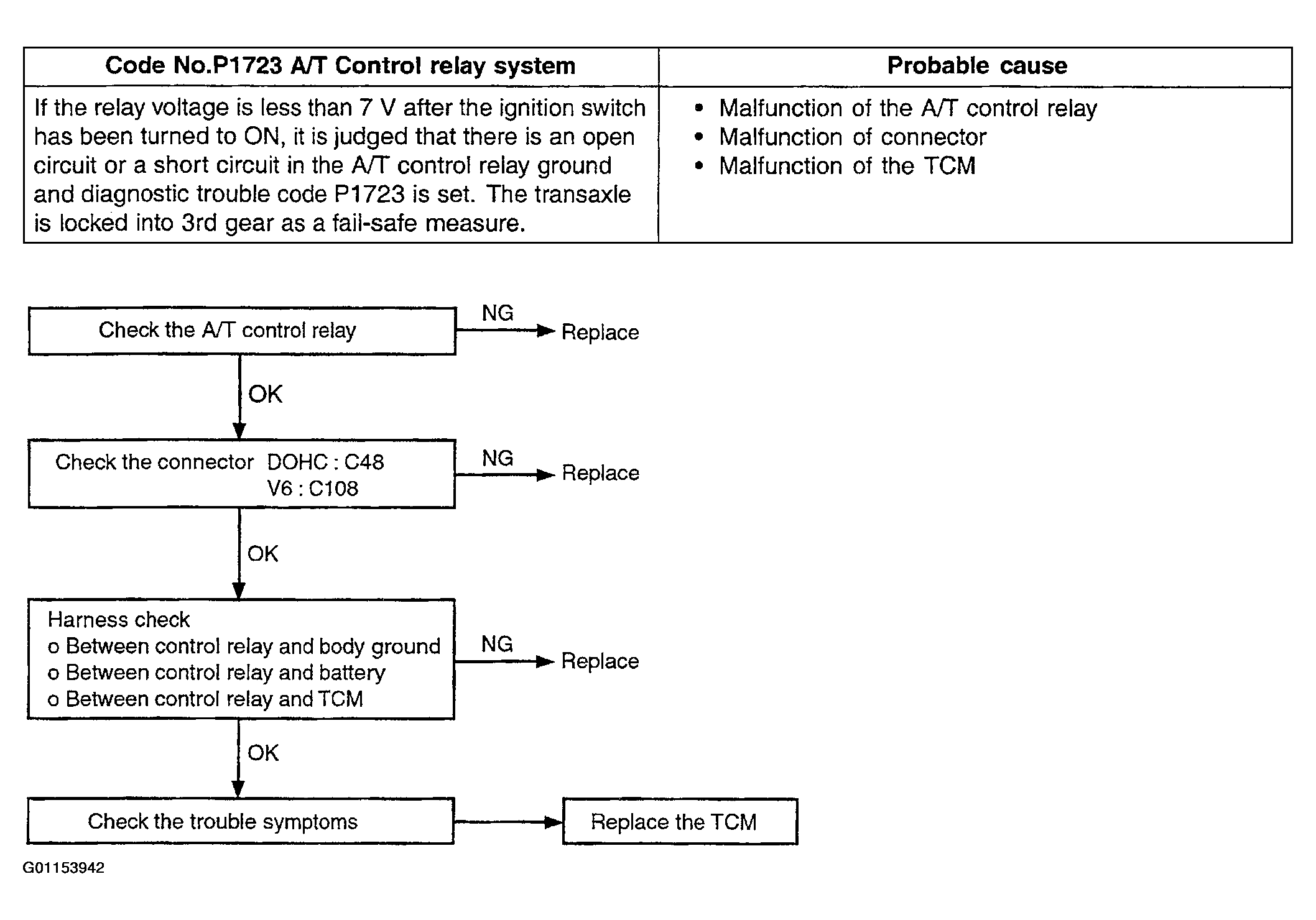

Fig 1: DTC P1723 Probable Causes & Diagnostic Flow Chart
G01153942Courtesy of HYUNDAI MOTOR CO.
