Shift Lever: Components

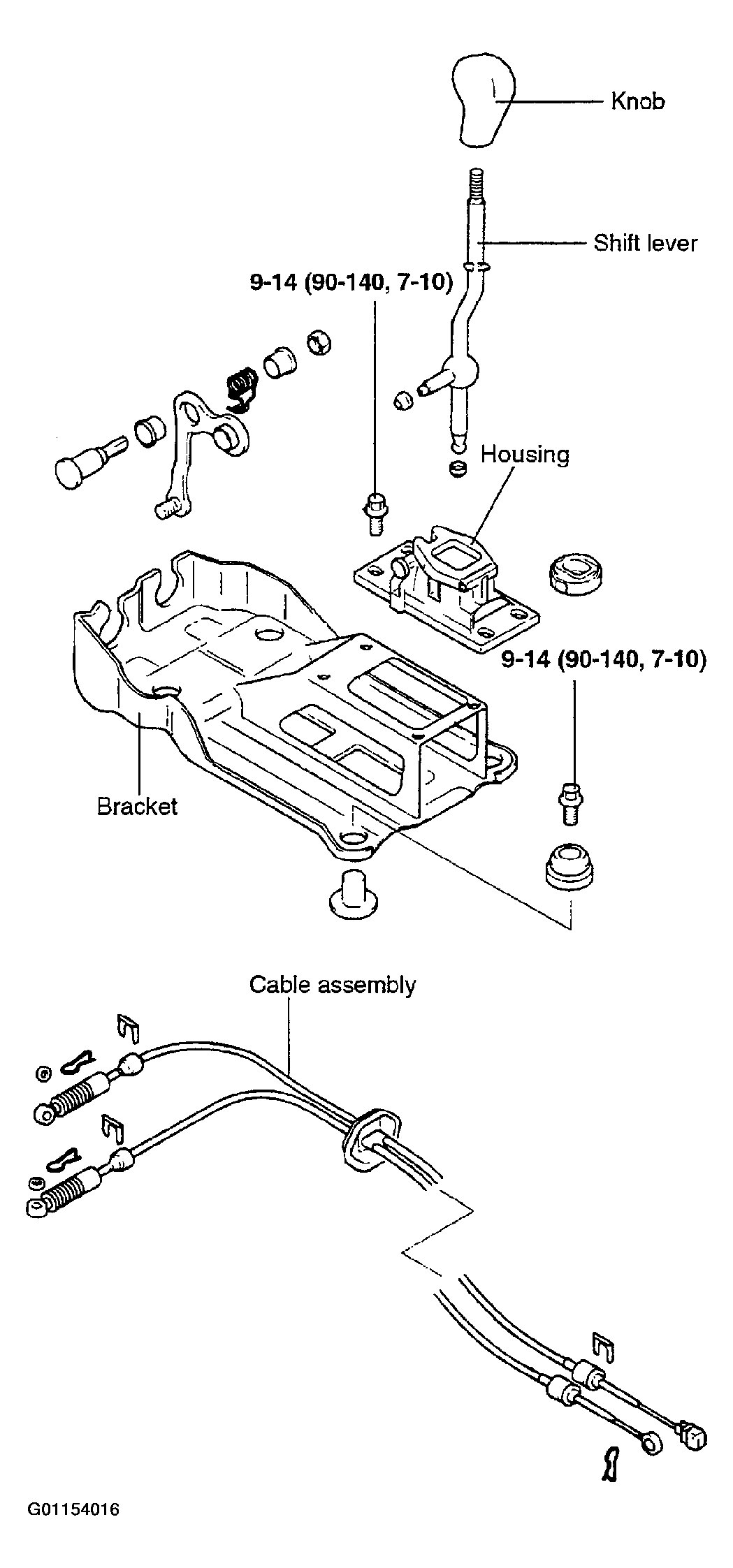

Fig 1: Shift Lever & Cables Components
G01154016Courtesy of HYUNDAI MOTOR CO.

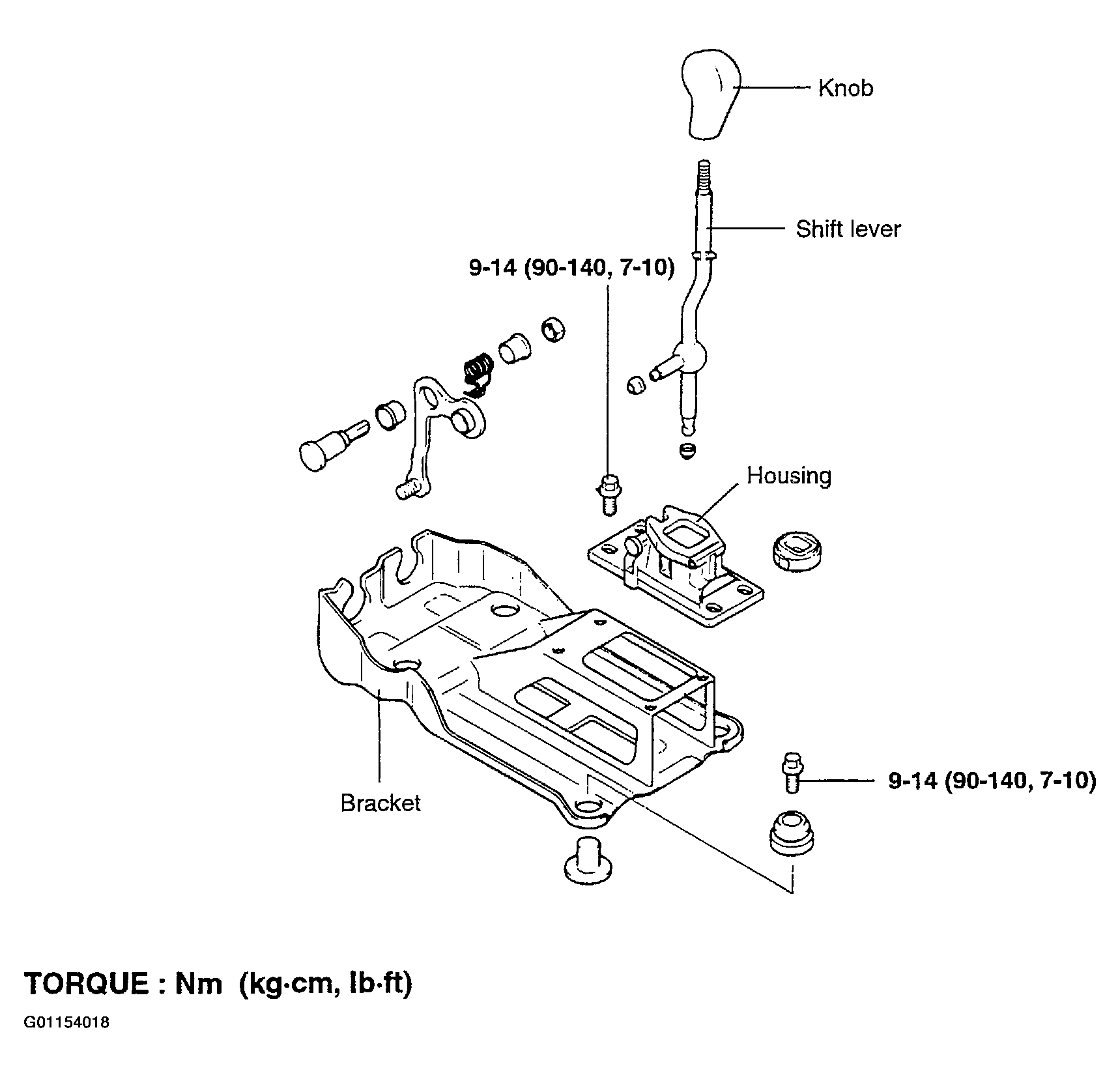

Fig 1: Shift Lever Components
G01154018Courtesy of HYUNDAI MOTOR CO.
