Connector Locations

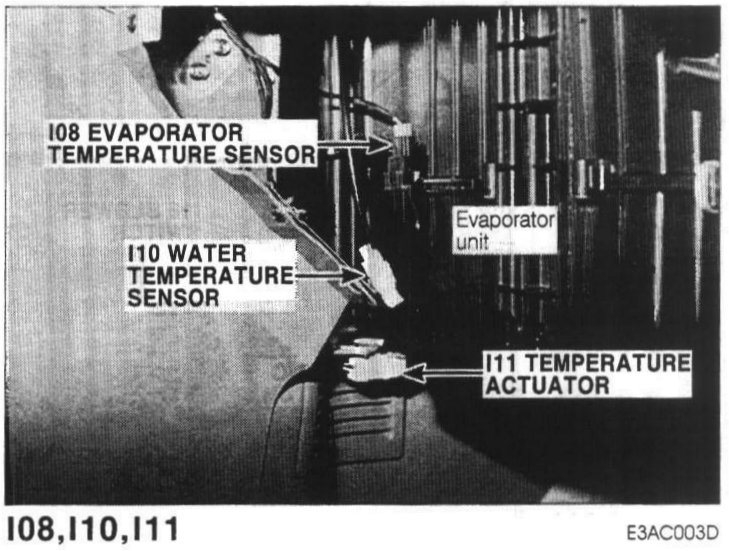

I08 Evaporator Sensor, I10 Water Temperature Sensor, I11 Temperature Actuator:

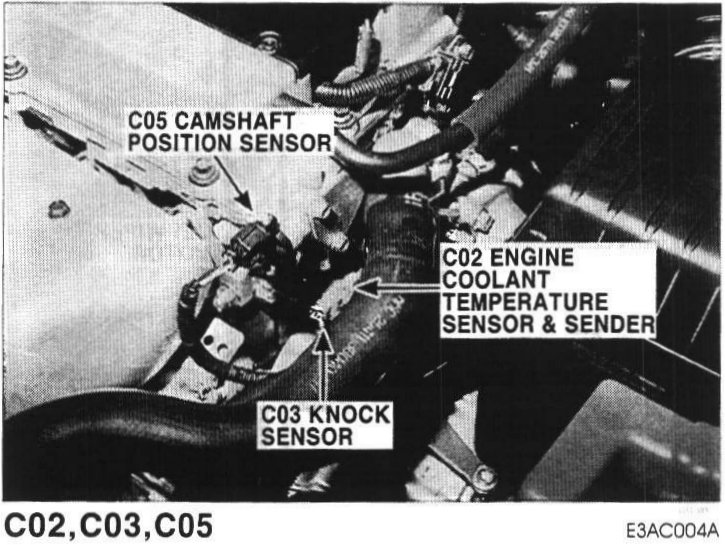

C02 Engine Coolant Temperature Sensor & Sender (DOHC), C03 Knock Sensor, C05 Camshaft Position Sensor:

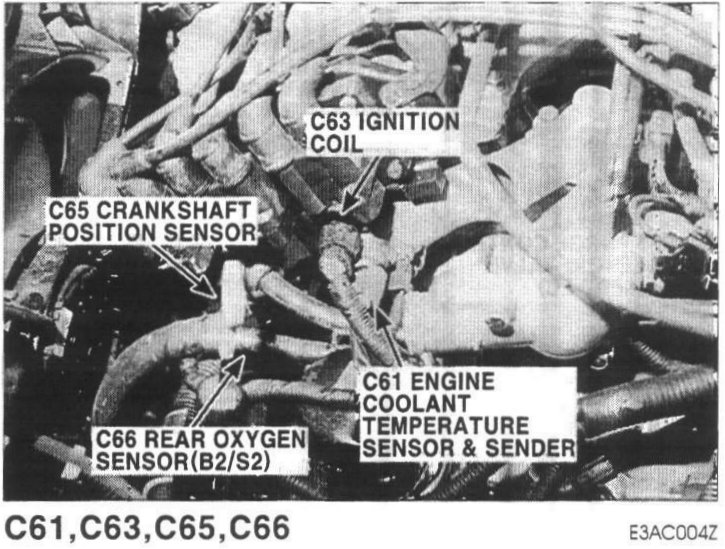

C61 Engine Coolant Temperature Sensor & Sender, C63 Ignition Coil, C65 Crankshaft Position Sensor, C66 Rear Oxygen Sensor (BANK 2 / SENSOR 2):
