Data Link Connector: Locations

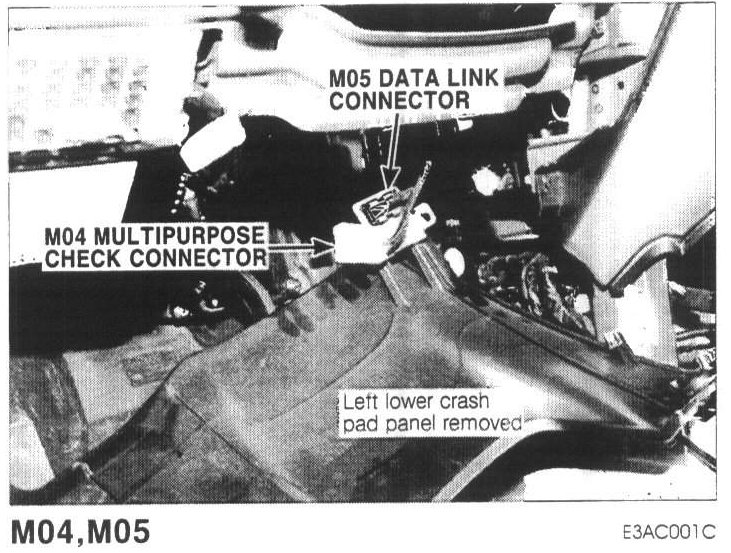

M04 Multipurpose Check Connector, M05 Data Link Connector:

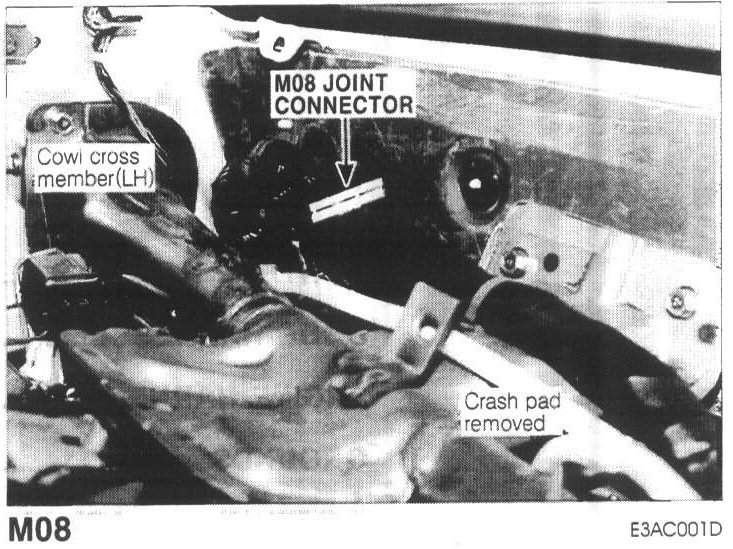

M08 Joint Connector:

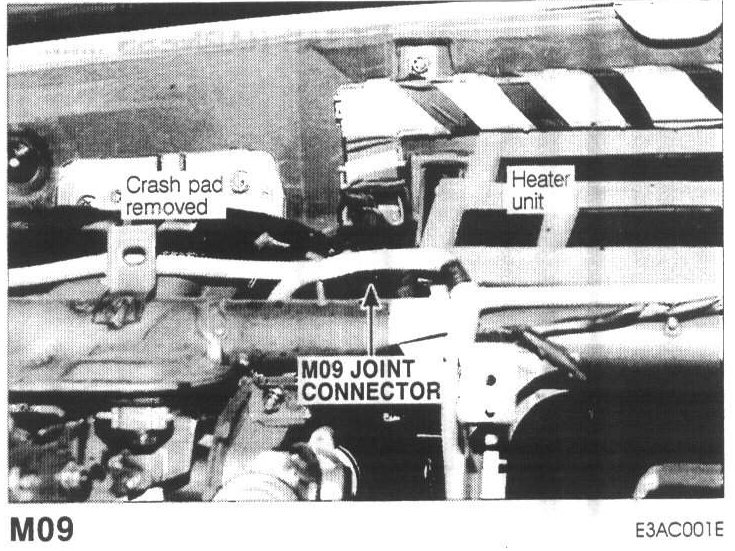

M09 Joint Connector:

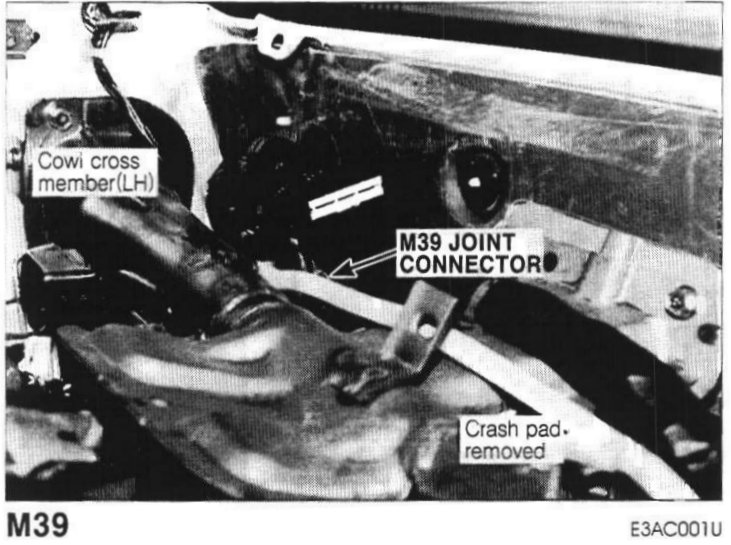

M39 Joint Connector:

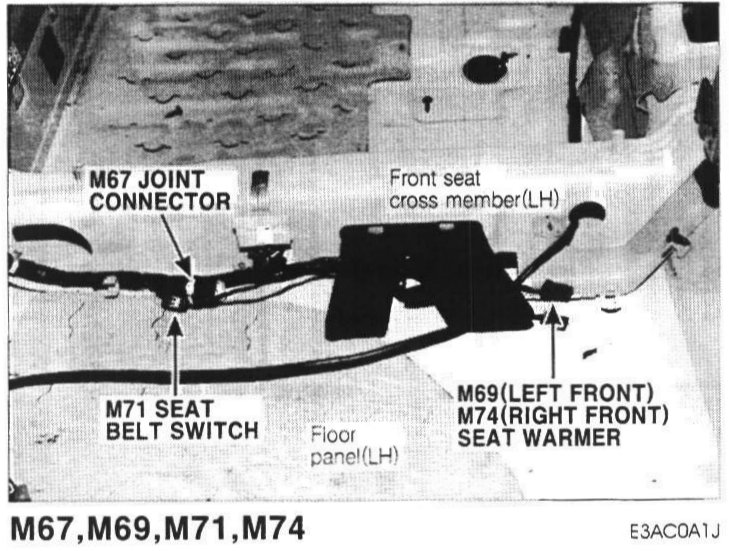

M67 Joint Connector, M69 (Left Front) Seat Warmer, M71 Seat Belt Switch, M74 (Right Front) Seat Warmer:

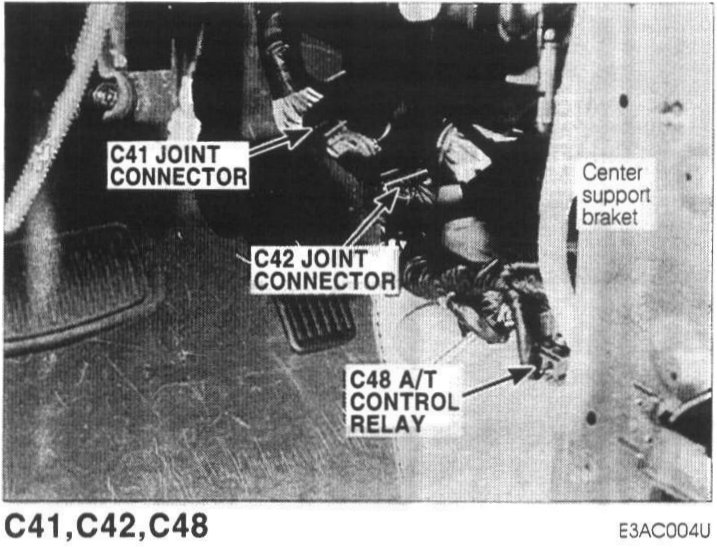

C41 Joint Connector, C42 Joint Connector, C48 A/T Control Relay:

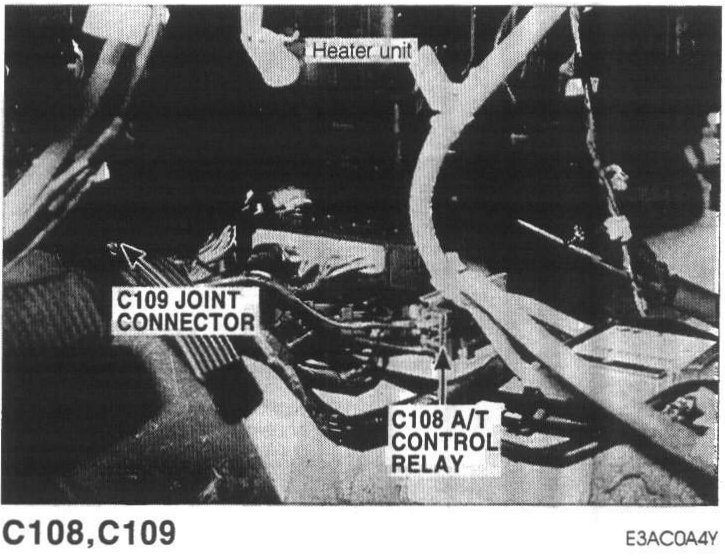

C108 A/T Control Relay, C109 Joint Connector:

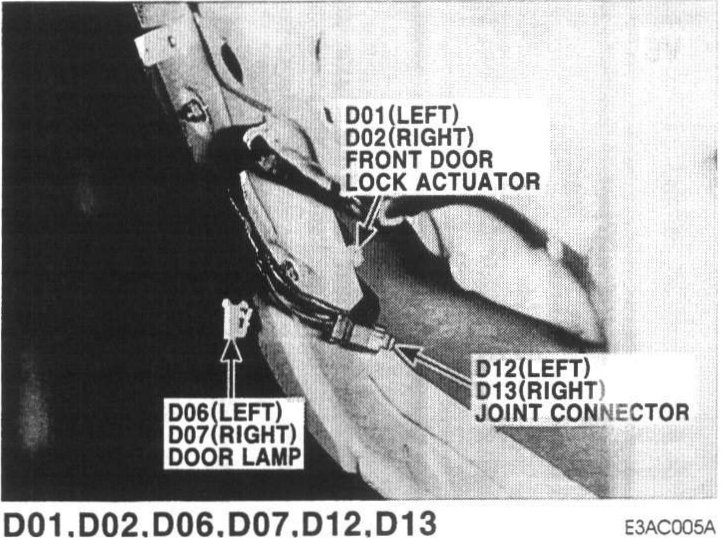

D01 Left Front Door Lock Actuator, D02 Right Front Door Lock Actuator, D06 Left Door Lamp, D07 Right Door Lamp, D12 Joint Connector, D13 Joint Connector:
