Transmission Position Sensor/Switch: Locations

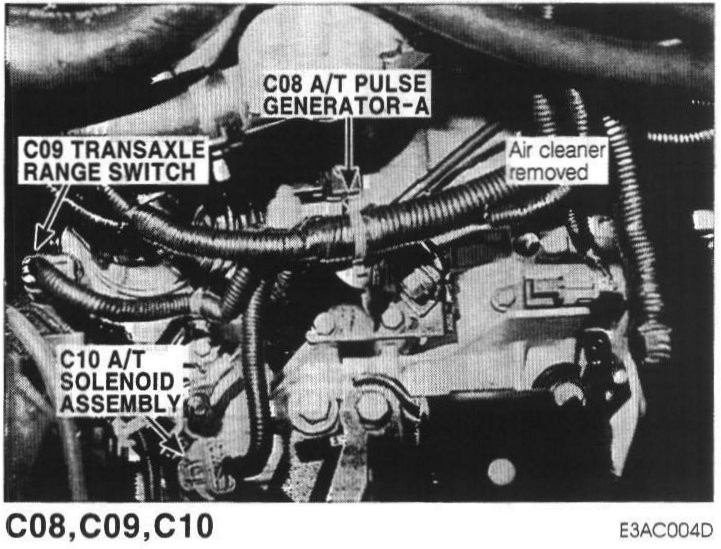

C08 A/T Pulse Generator A, C09 Transaxle Range Switch, C10 A/T Solenoid Assembly:

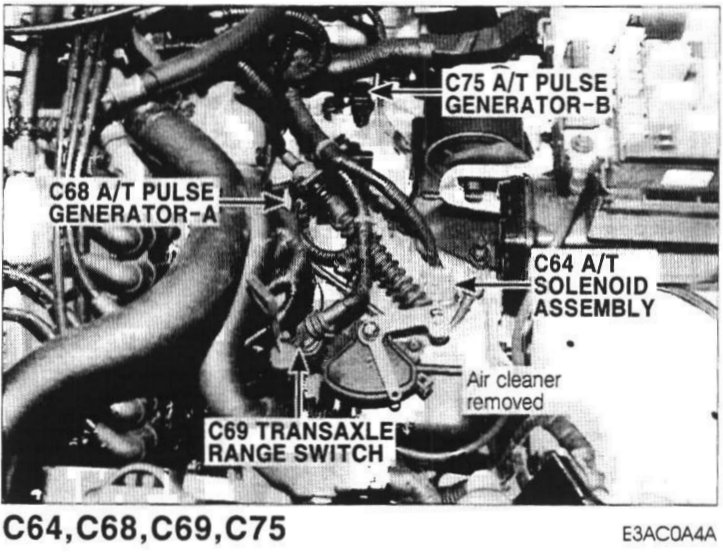

C64 A/T Solenoid Assembly, C68 A/T Pulse Generator A, C69 Transaxle Range Switch, C75 A/T Pulse Generator B:
