Ignition Key Hole Illumination

Time specification:

T1: 9-11 sec.

T2: 0-10 sec. See Fig 1 .

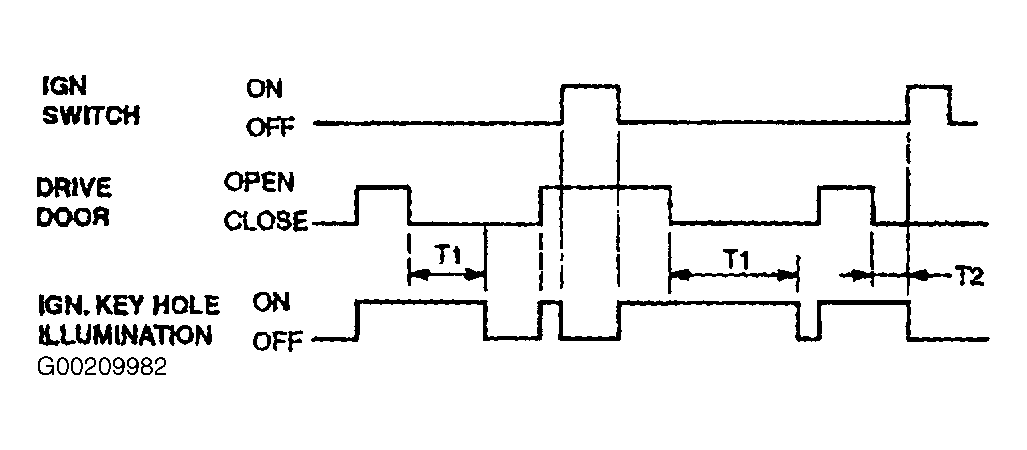

Fig 1: Checking Ignition Key Hole Illumination
G00209982Courtesy of HYUNDAI MOTOR CO.
