ON/OFF Interlock Function (Seat)

Prohibition condition of interlock:

Auto switch OFF.

Parking brake is released (Switch OFF).

Stop switch ON.

During the manual switch operation. See Fig 1 .

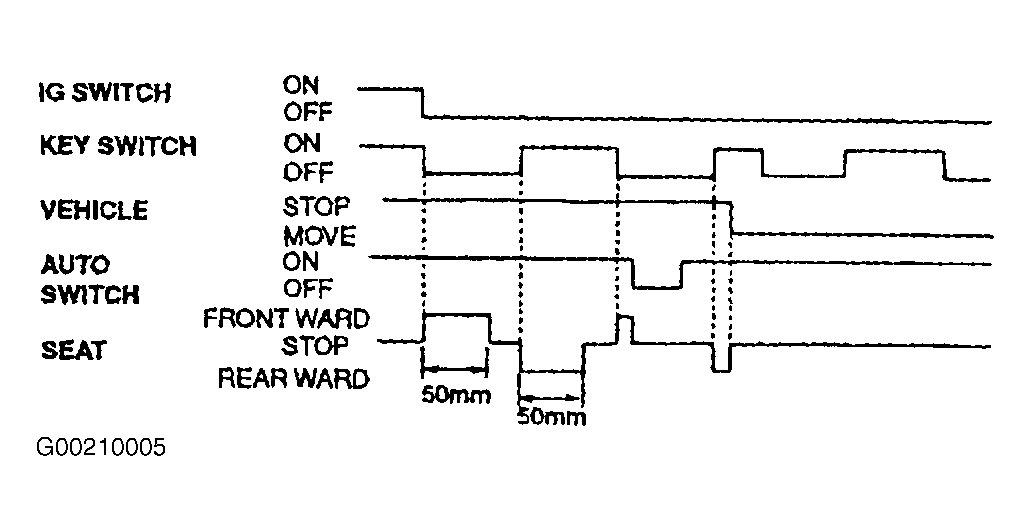

Fig 1: ON/OFF Interlock Function (Seat)
G00210005Courtesy of HYUNDAI MOTOR CO.
