Power Window Timer

Time Specification: T1: 25-35 sec.

Use illustration for timing wave form pattern. See Fig 1 .

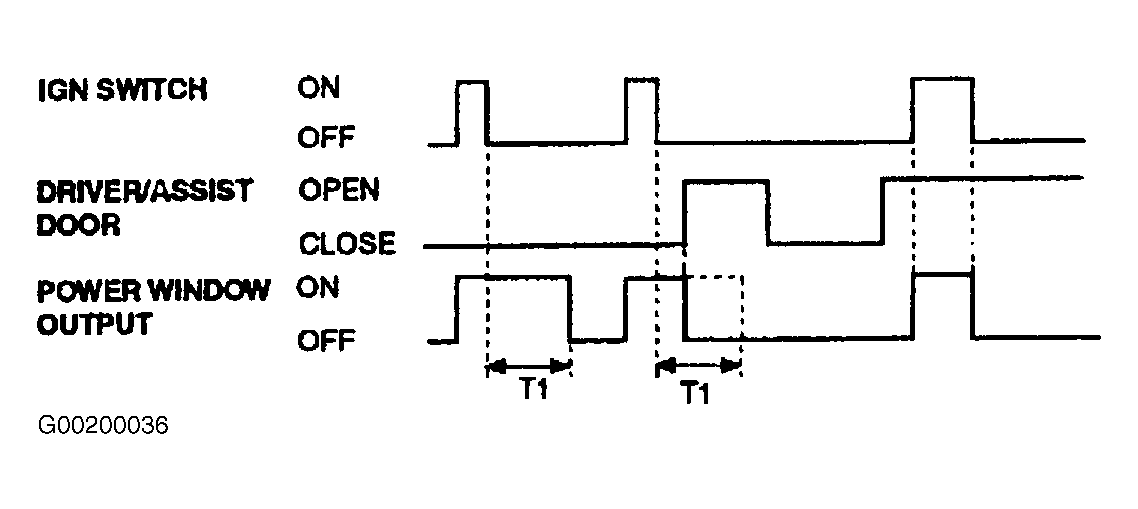

Fig 1: Checking Power Window Timer
G00200036Courtesy of HYUNDAI MOTOR CO.
