Variable Intermittent Wiper

Time Specification:

• T1: Less than 0.6 sec.
• More than 0.6 sec.
• T3: Intermittent time
  1. Min. 0.8-22 sec. (at VR=0k/ohms)
  2. Max. 7.5-13.5 sec. (at VR=50k/ohms)

  Use illustration for timing wave form pattern. See Fig 1 .

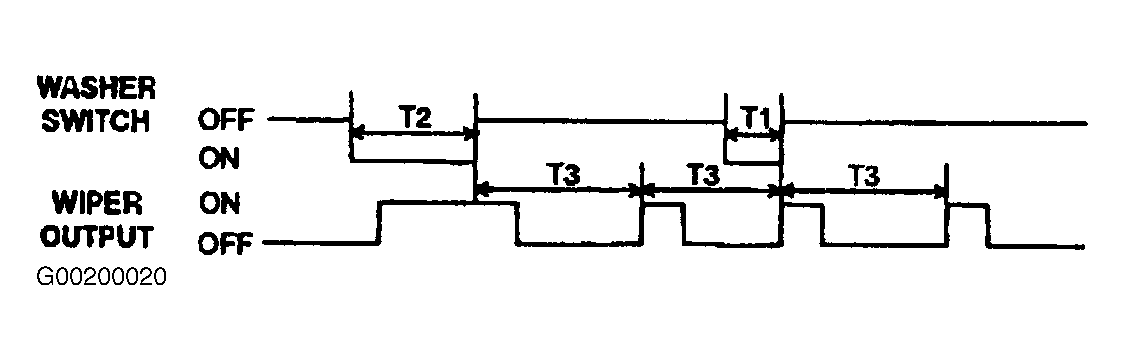

  Fig 1: Checking Variable Intermittent Wiper

  Courtesy of HYUNDAI MOTOR CO.
