Central Door Lock Function
T1: 0.2-0.4 sec. See
Fig 1
.

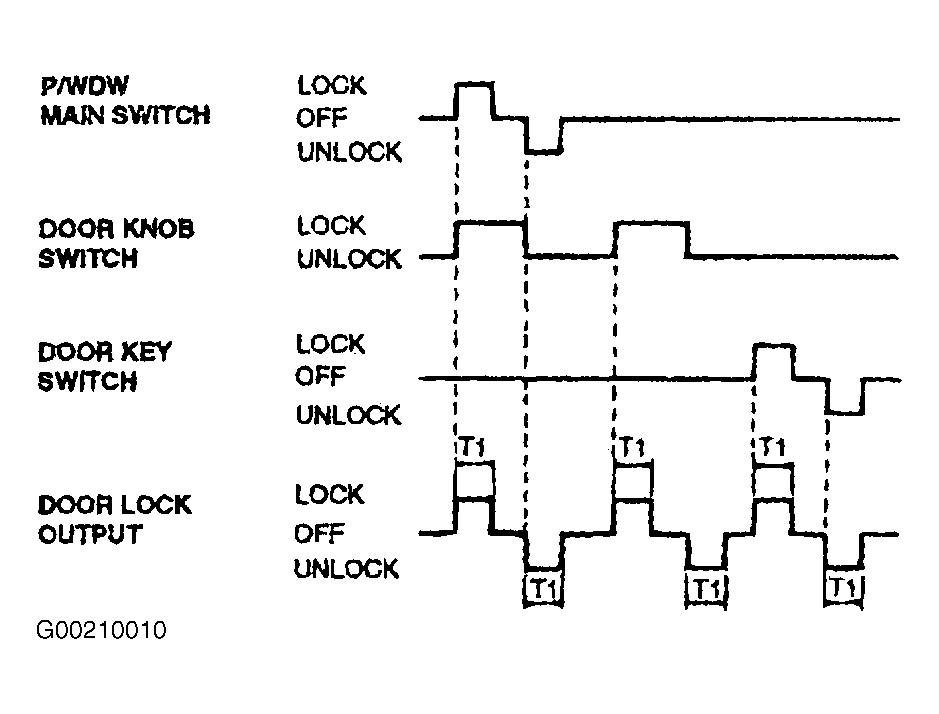

Fig 1: Central Door Lock Function
Courtesy of HYUNDAI MOTOR CO.
