Monitor Scantool Data

1. Specification:
   INTAKE AIR TEMPERATURE SENSOR SPECIFICATIONS



   Temperature	Resistance	Voltage
   20°C (68°F)	2.33~2.97 kΩ	2.5~2.7V
   80°C (176°F)	0.31~0.43 kΩ	0.6~0.8V

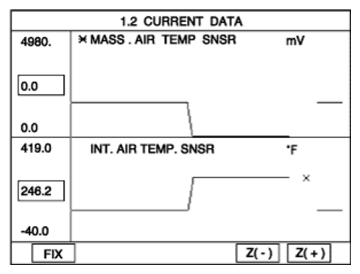

   Fig 1: Scantool Screen Display - Sensor Data At Open

   Courtesy of HYUNDAI MOTOR CO.

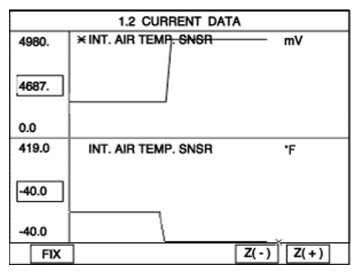

   Fig 2: Scantool Screen Display - Sensor Data At Short

   Courtesy of HYUNDAI MOTOR CO.

YES

• Fault is intermittent caused by poor contact in the sensor's and/or PCM's connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

NO

• Go to "W/HARNESS INSPECTION " procedure.
