Chart 1

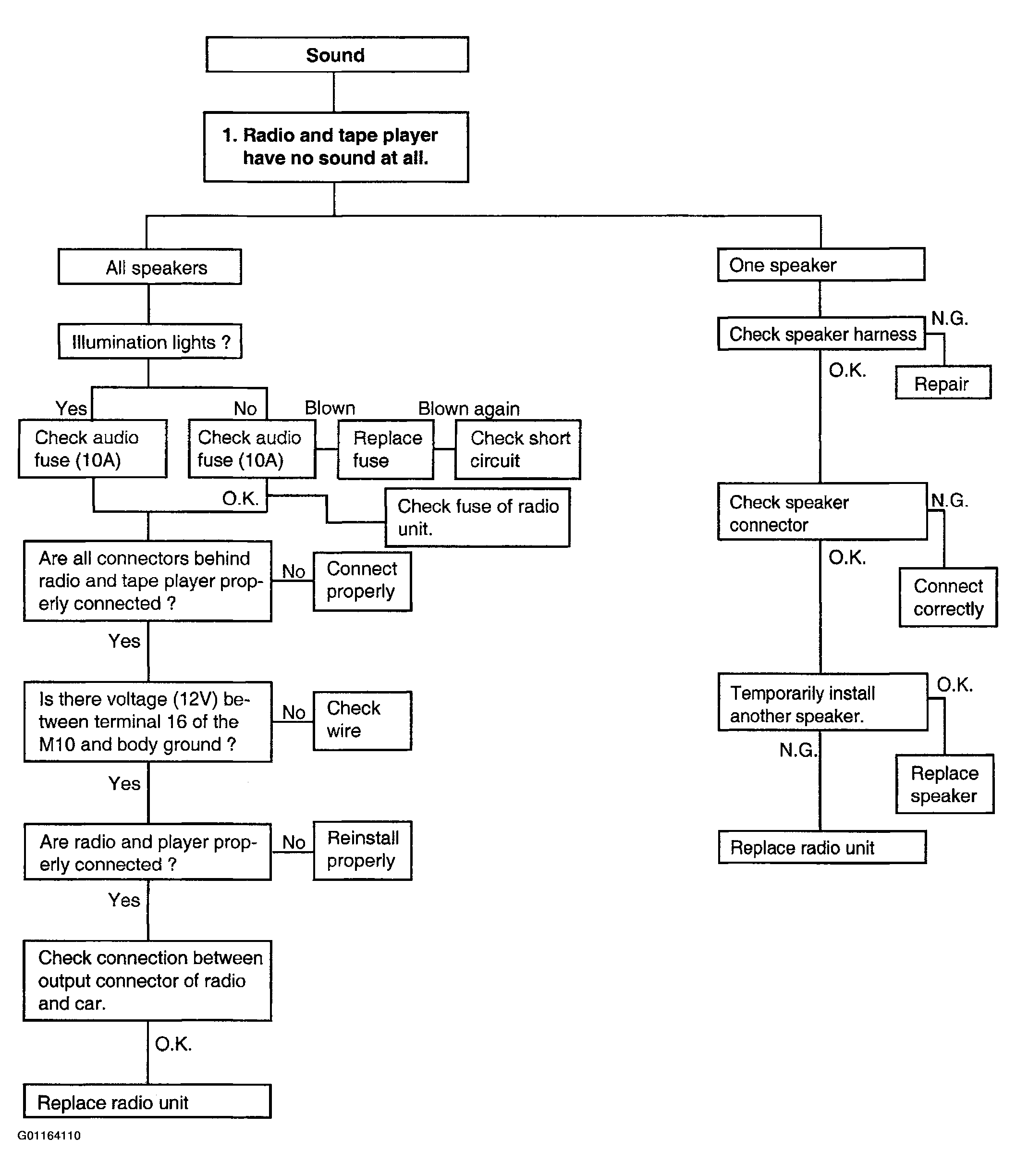

Fig 1: Troubleshooting Flow Chart - Sound
G01164110Courtesy of HYUNDAI MOTOR CO.

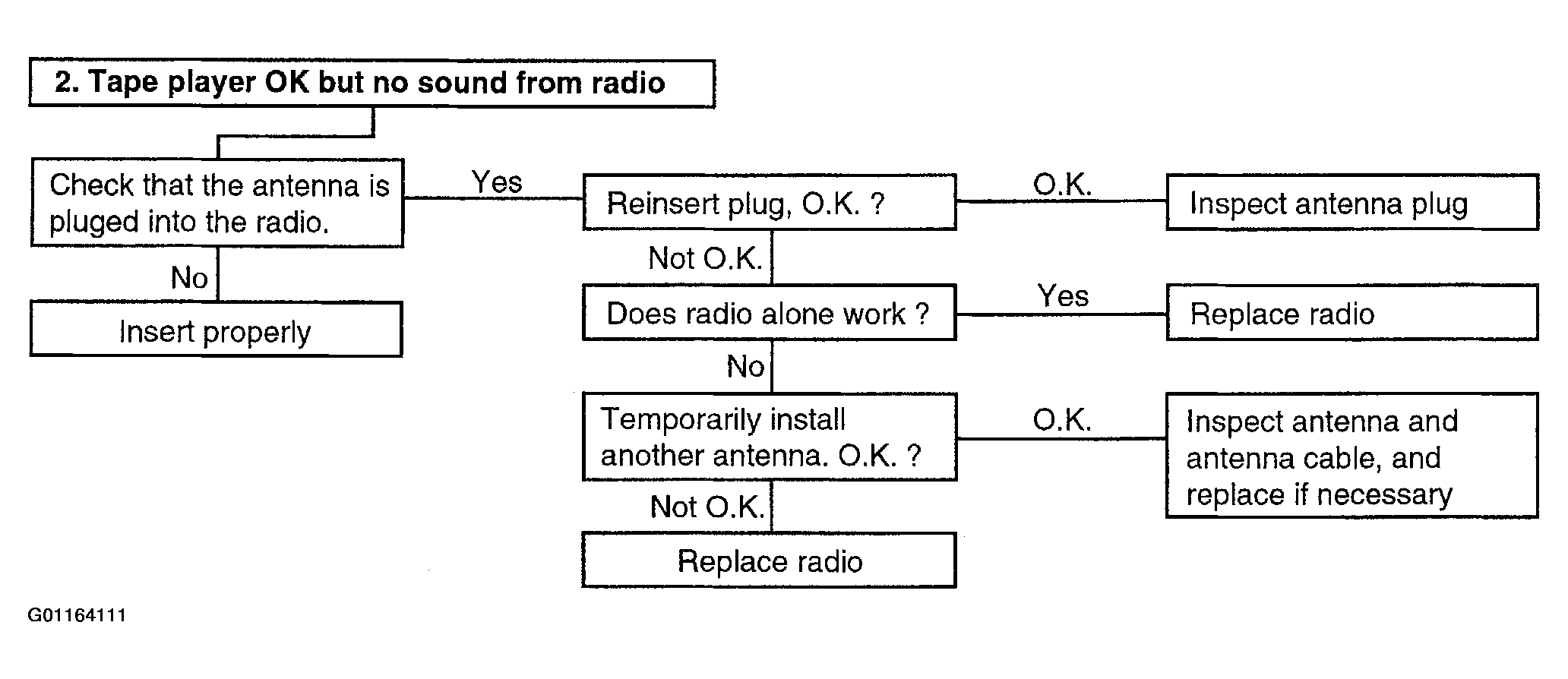

Fig 2: Troubleshooting Flow Chart - Tape Player Ok But No Sound From Radio
G01164111Courtesy of HYUNDAI MOTOR CO.
