Chart 2

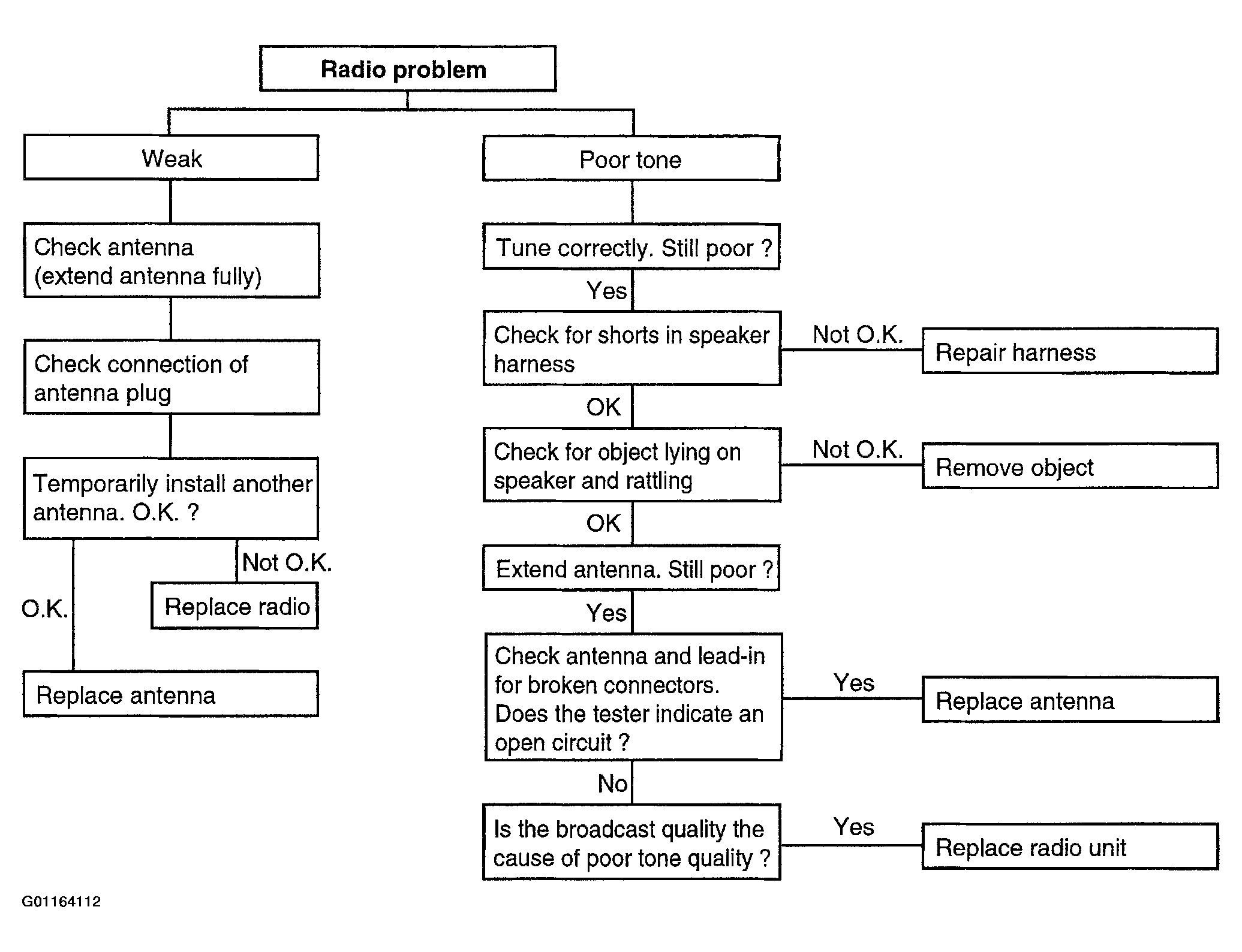

Fig 1: Troubleshooting Flow Chart - Radio Problem
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
