Chart 5

CD WILL NOT BE ACCEPTED

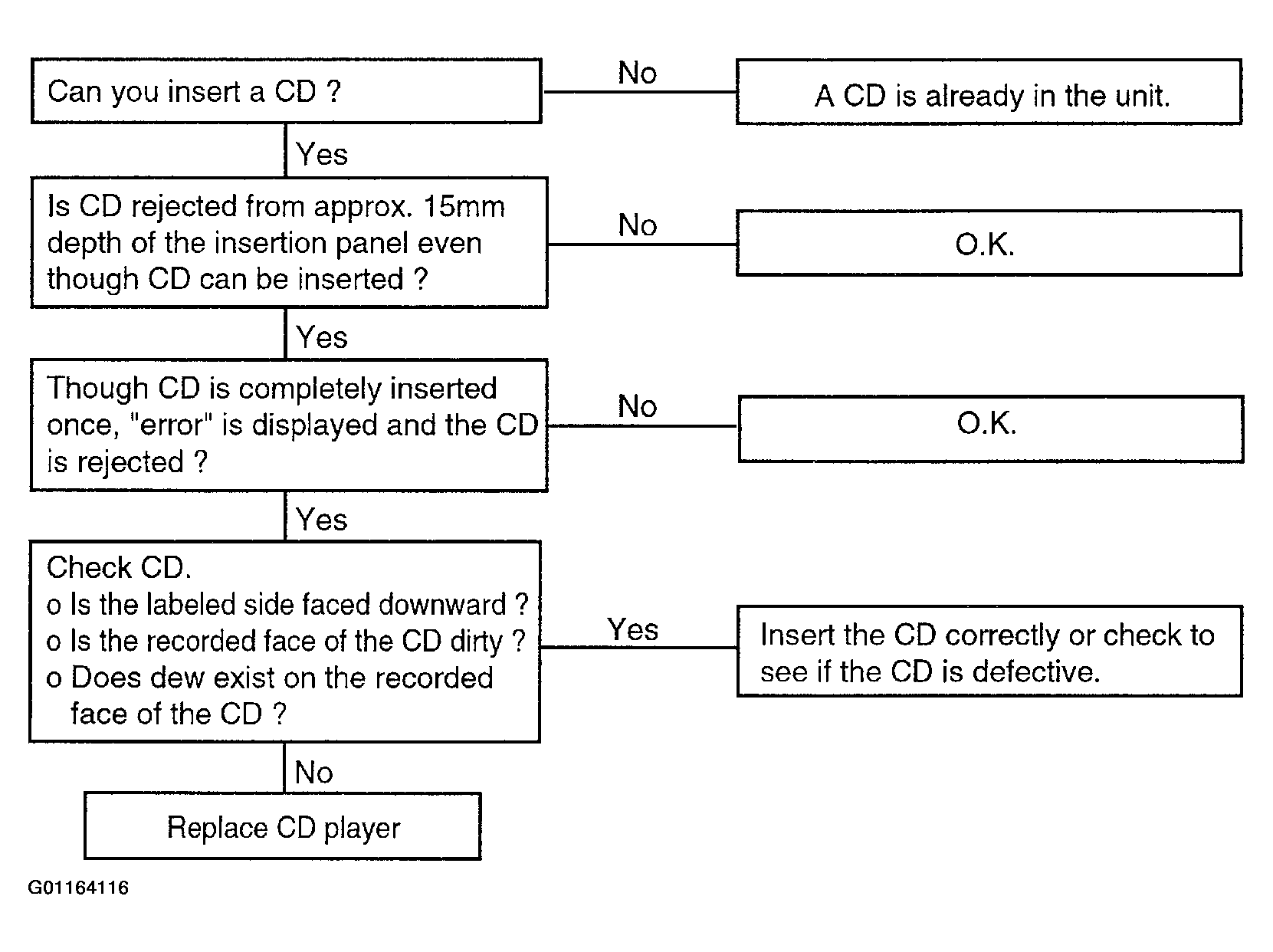

Fig 1: Troubleshooting Flow Chart - CD Will Not Be Accepted
Courtesy of HYUNDAI MOTOR CO.
NO SOUND

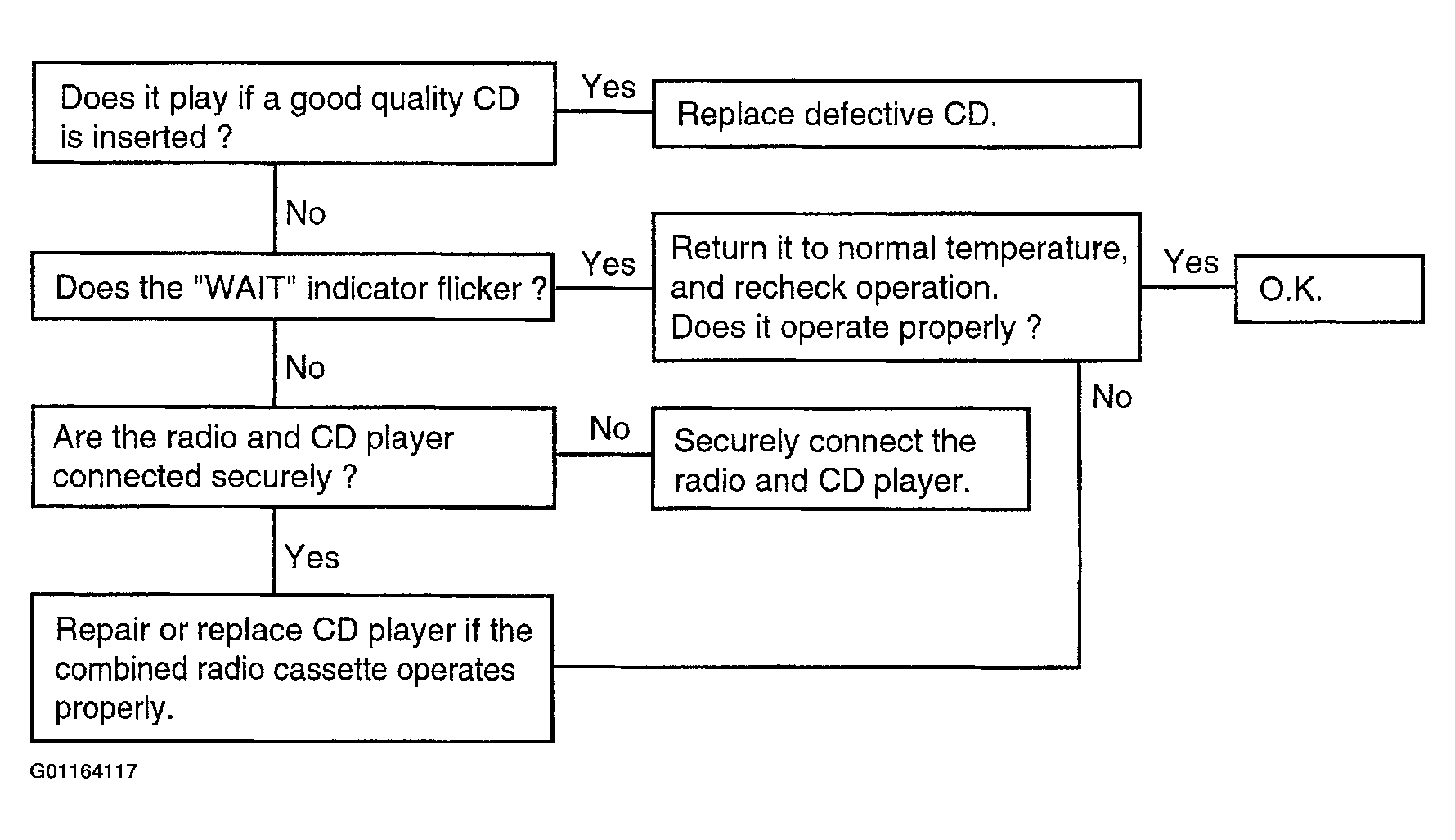

Fig 2: Troubleshooting Flow Chart - No Sound
Courtesy of HYUNDAI MOTOR CO.
CD SOUND SKIPS
1. Sound sometimes skips when parking.

  Fig 3: Troubleshooting Flow Chart - CD Sound Skips (Parking)
  Courtesy of HYUNDAI MOTOR CO.
2. Sound sometimes skips when driving. (Stop vehicle, and check it.) (Check by using a CD which is fee of scratches, dirt or other damage.)

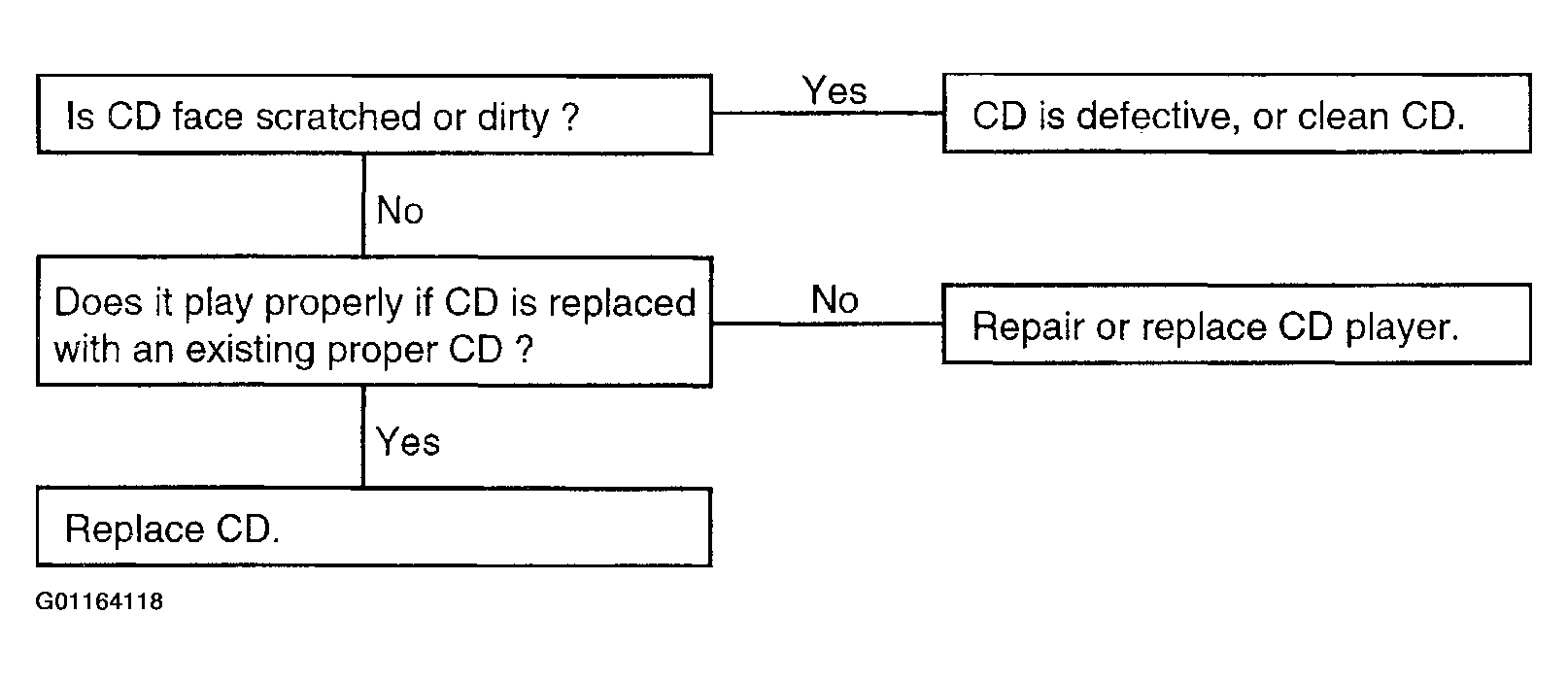

  Fig 4: Troubleshooting Flow Chart - CD Sound Skips (Driving)
  Courtesy of HYUNDAI MOTOR CO.
SOUND QUALITY IS POOR

Fig 5: Troubleshooting Flow Chart - Sound Quality Is Poor
Courtesy of HYUNDAI MOTOR CO.
CD WILL NOT EJECT

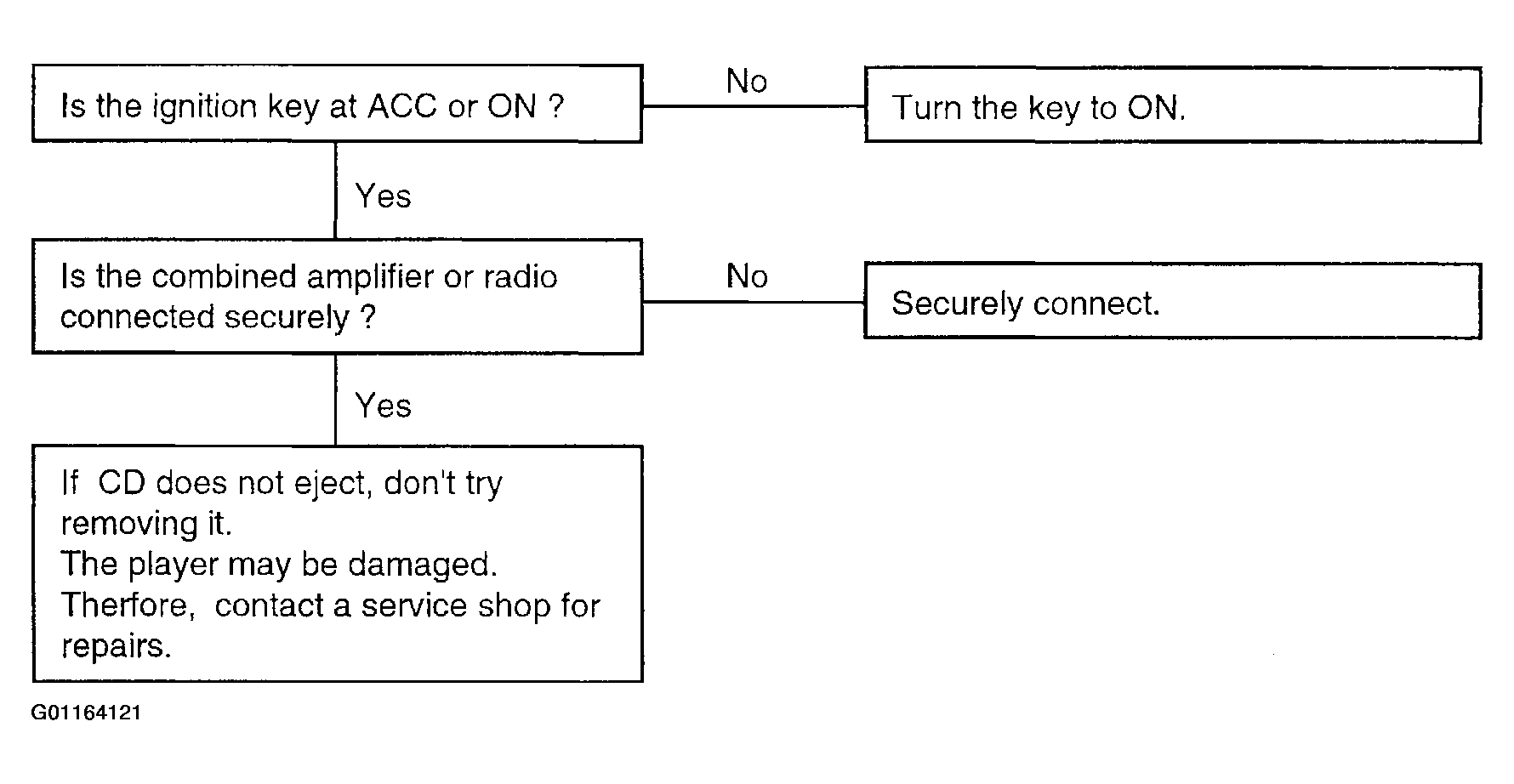

Fig 6: Troubleshooting Flow Chart - CD Will Not Eject
Courtesy of HYUNDAI MOTOR CO.
NO SOUND FROM ONE SPEAKER

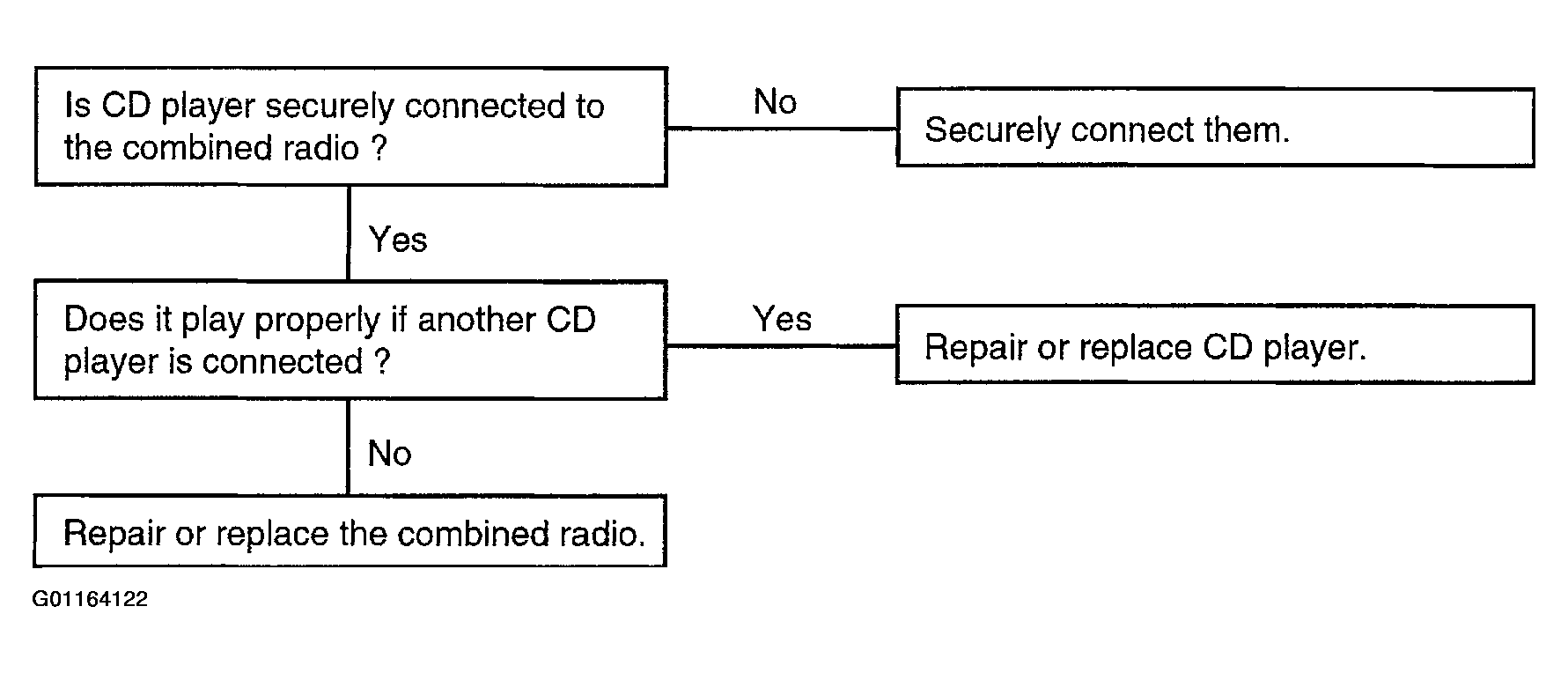

Fig 7: Troubleshooting Flow Chart - No Sound From One Speaker
Courtesy of HYUNDAI MOTOR CO.
