Chart 7

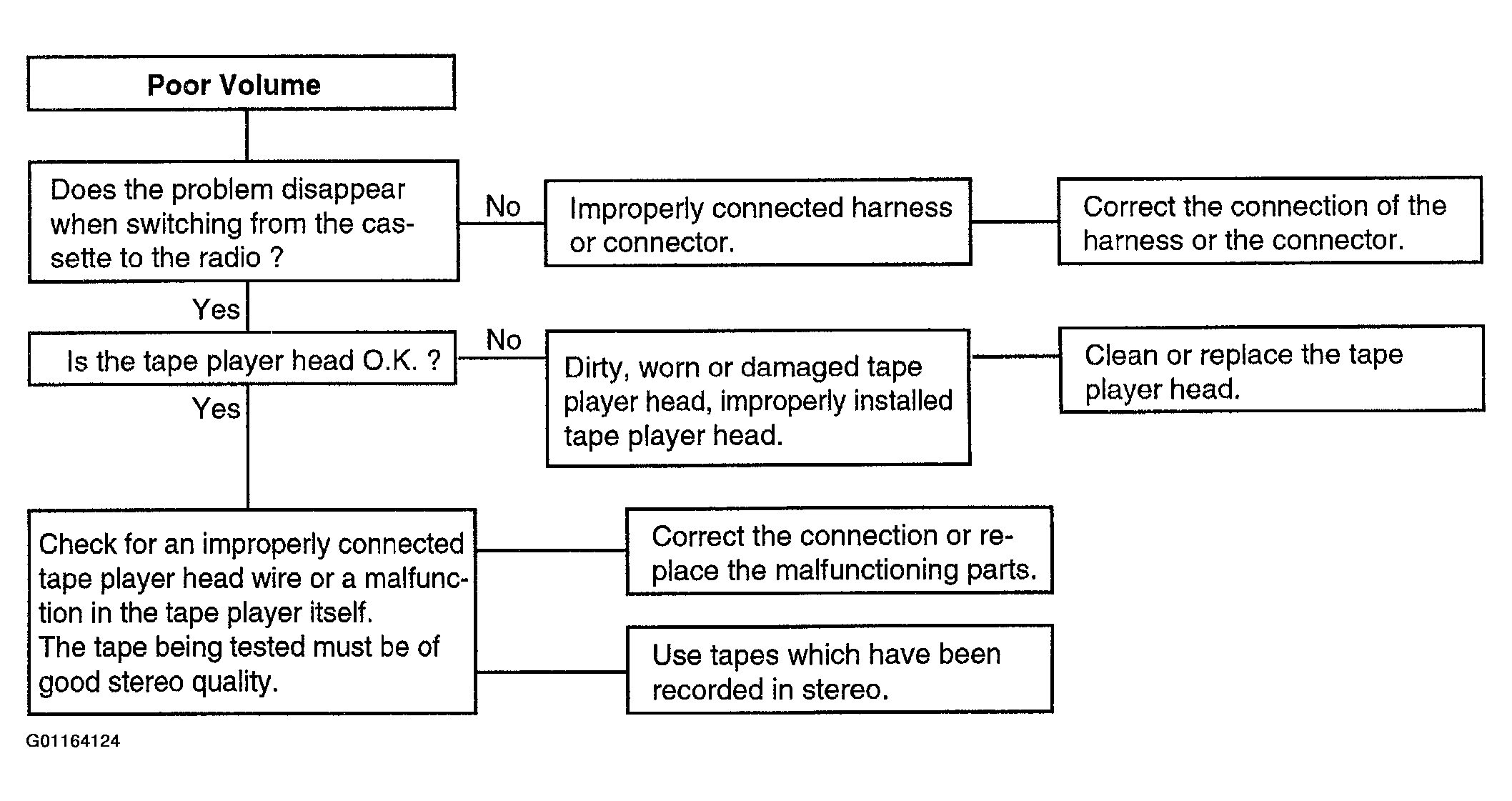

Fig 1: Troubleshooting Flow Chart - Poor Volume
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
