Special Tools

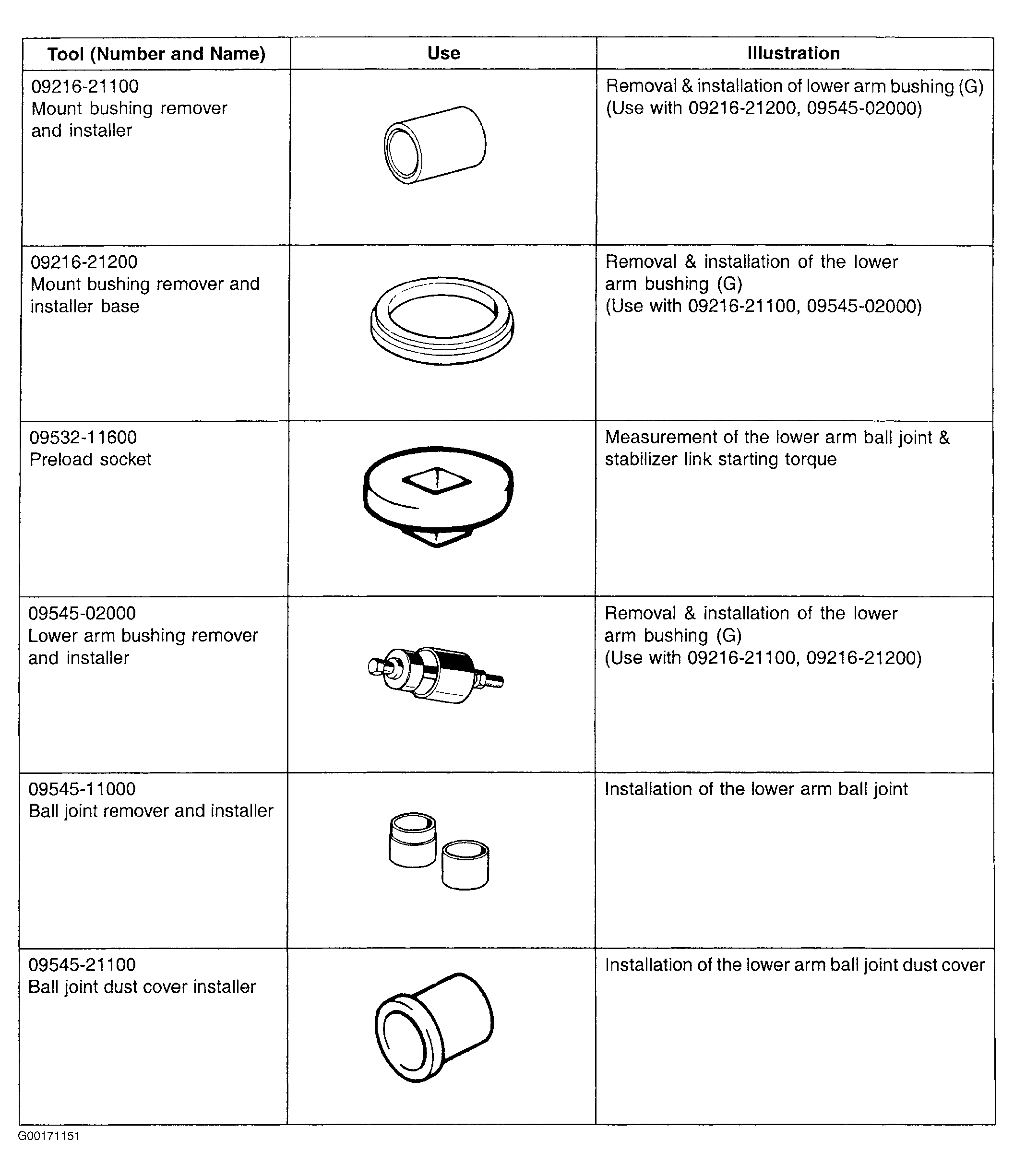

Fig 1: Identifying Special Tools (1 Of 4)
G00171151Courtesy of HYUNDAI MOTOR CO.

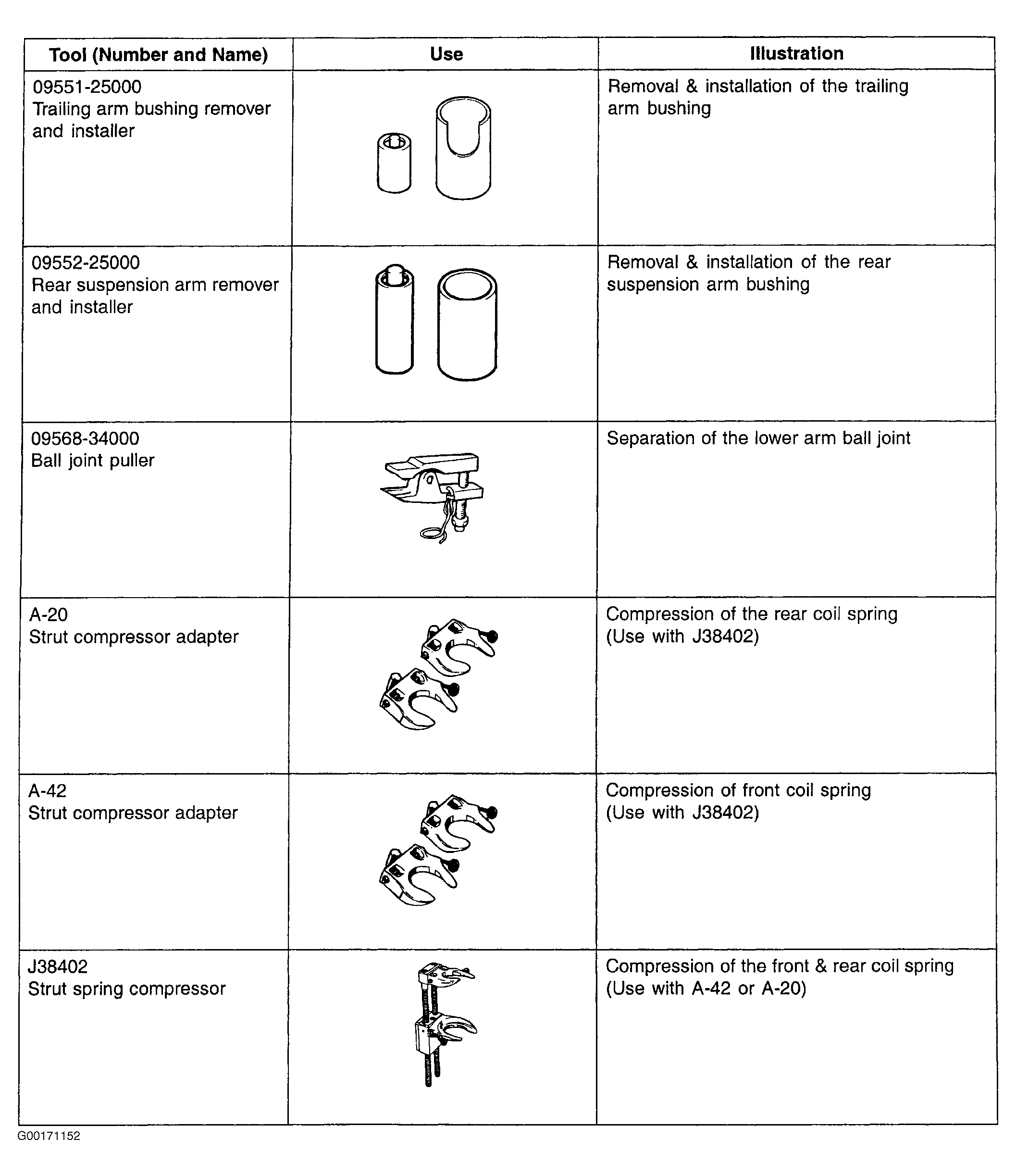

Fig 2: Identifying Special Tools (2 Of 4)
G00171152Courtesy of HYUNDAI MOTOR CO.

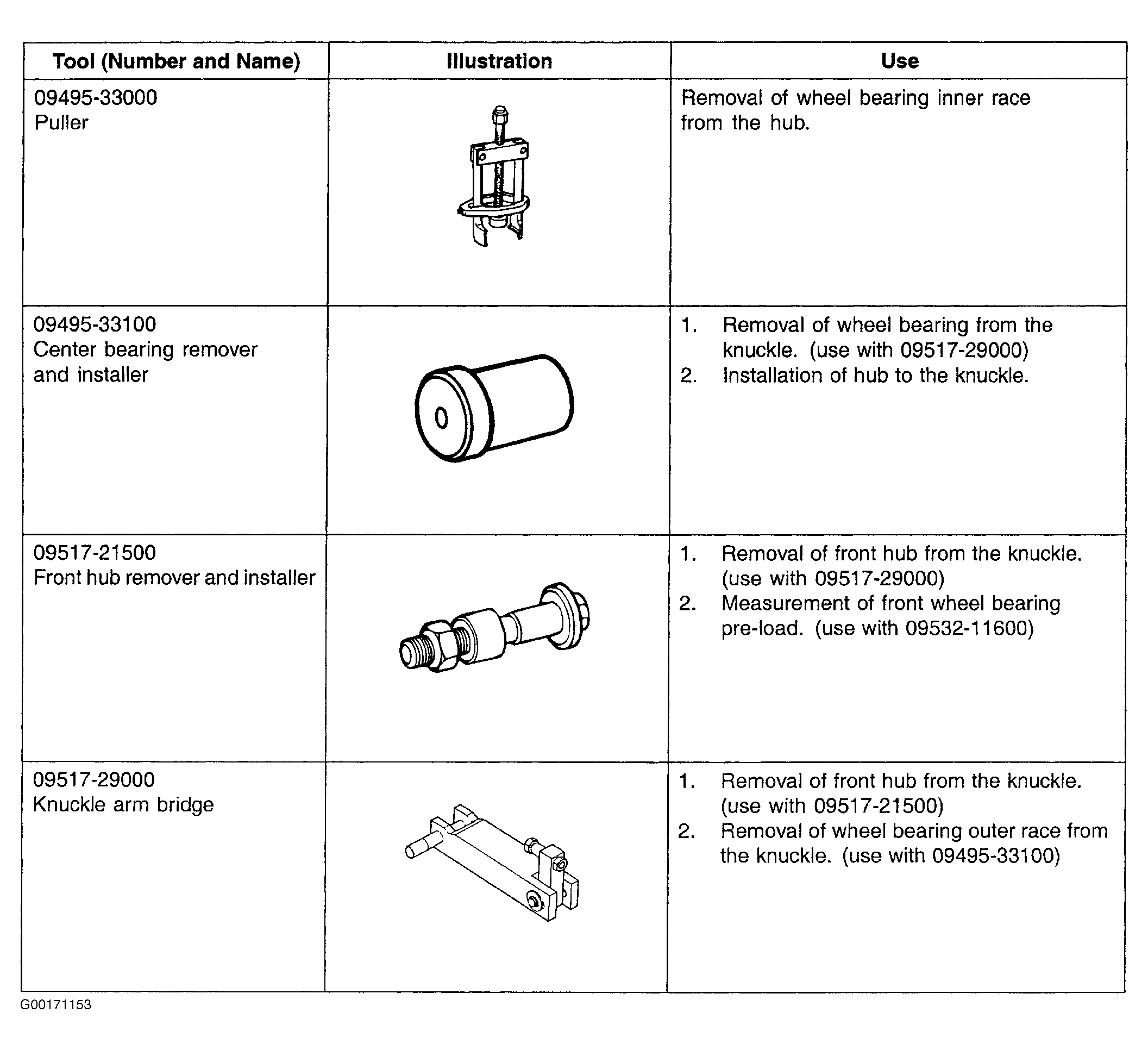

Fig 3: Identifying Special Tools (3 Of 4)
G00171153Courtesy of HYUNDAI MOTOR CO.

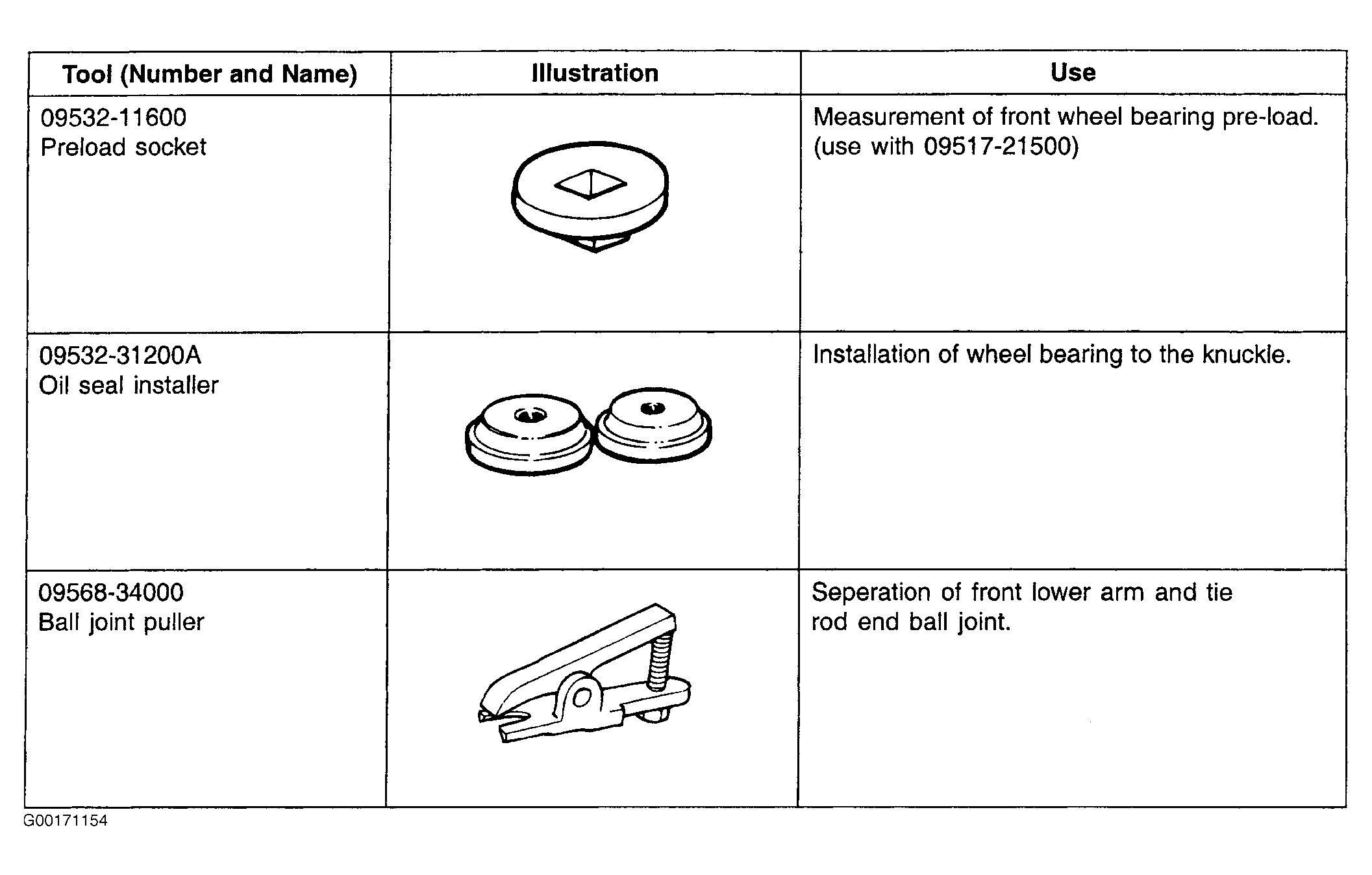

Fig 4: Identifying Special Tools (4 Of 4)
G00171154Courtesy of HYUNDAI MOTOR CO.
