Removal & Installation

  1. Disconnect the negative(-) battery terminal.
  2. Remove the 2 screws and 2 bolts holding the driver's crash pad lower panel.

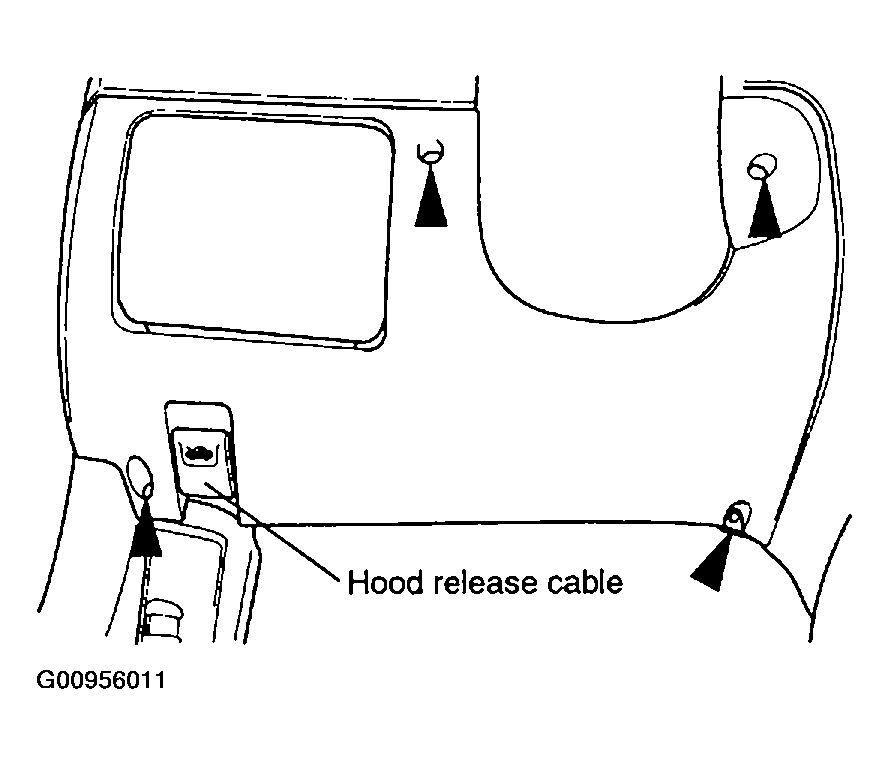

    Fig 1: Removing Drivers Crash Pad Lower Panel
    G00956011Courtesy of HYUNDAI MOTOR CO.
  3. Disconnect the hood release cable and the data link connector from beneath the driver's crash pad lower panel.

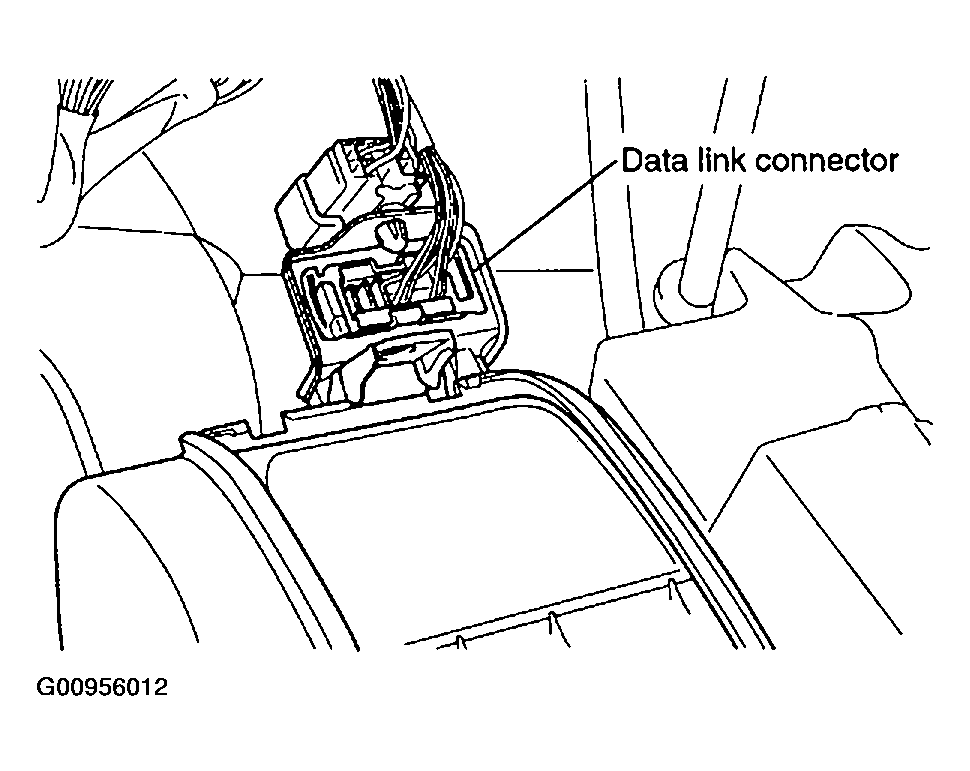

    Fig 2: Identifying Data Link Connector
    G00956012Courtesy of HYUNDAI MOTOR CO.
  4. Remove the ETACS module from the bracket after removing bolts.

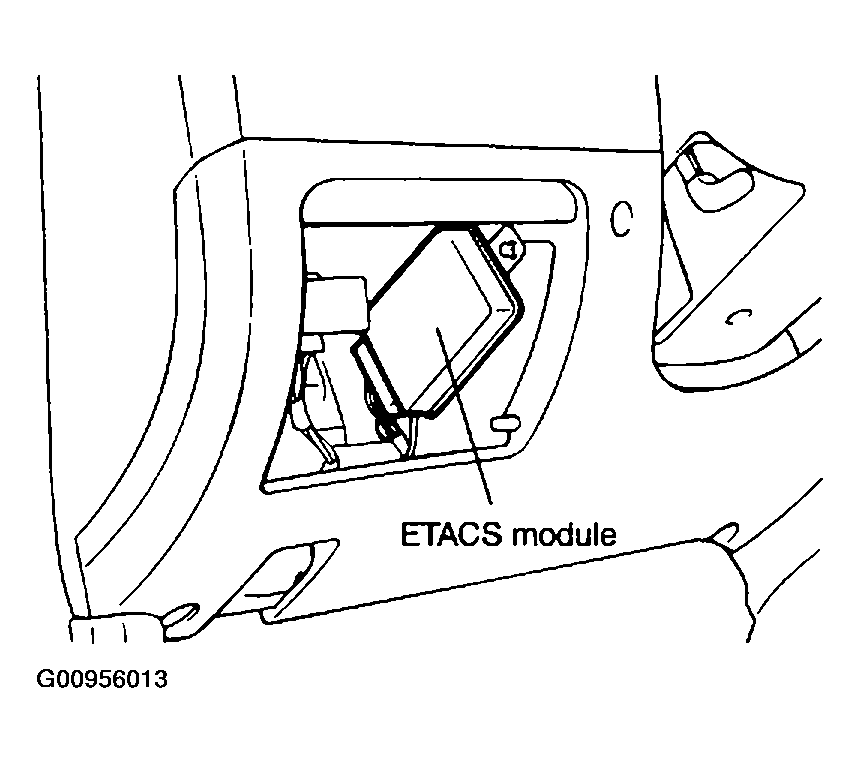

    Fig 3: Identifying ETACS Module
    G00956013Courtesy of HYUNDAI MOTOR CO.
  5. Installation is the reverse of removal.
