A/T Shift Lock Solenoid

Remove the solenoid connector.
Using an ohmmeter, measure the resistance between terminals.

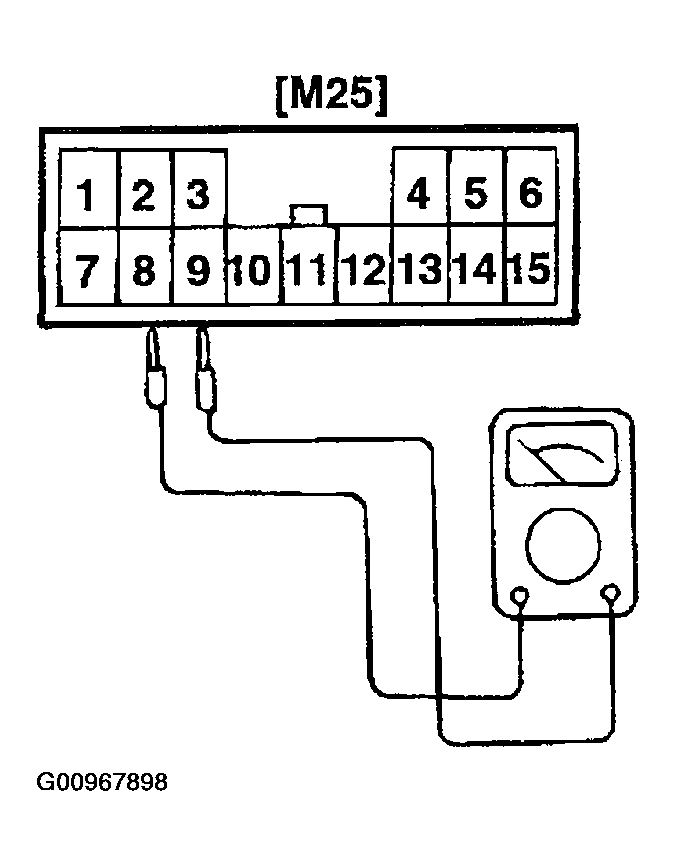

Fig 1: Checking A/T Shift Lock Solenoid Resistance
Courtesy of HYUNDAI MOTOR CO.
1. Standard resistance: 12-16 ohms
Attach the positive (+) lead from the battery to terminal #9. and the negative (-) lead to terminal #8.

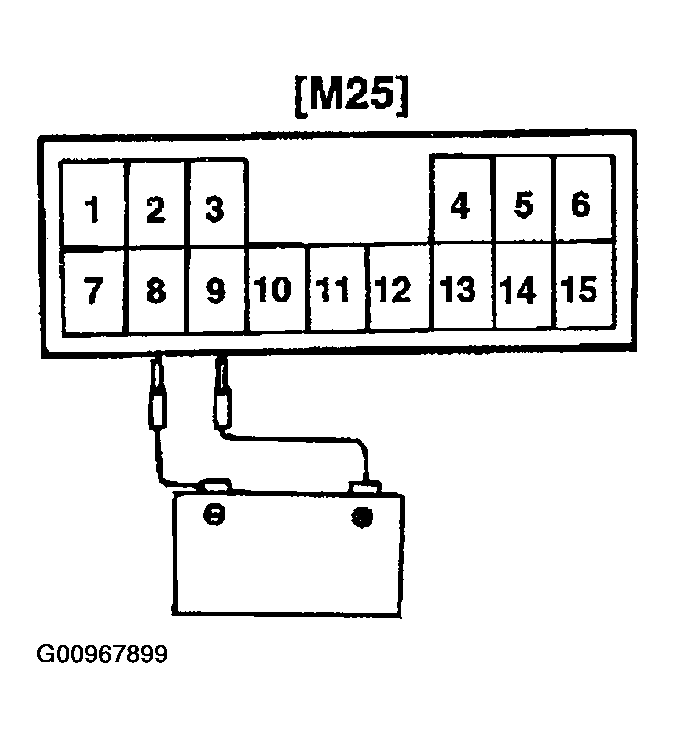

Fig 2: Checking A/T Shift Lock Solenoid For Noise
Courtesy of HYUNDAI MOTOR CO.
Check that an operation noise can be heard from the solenoid.
