Compressor Configuration

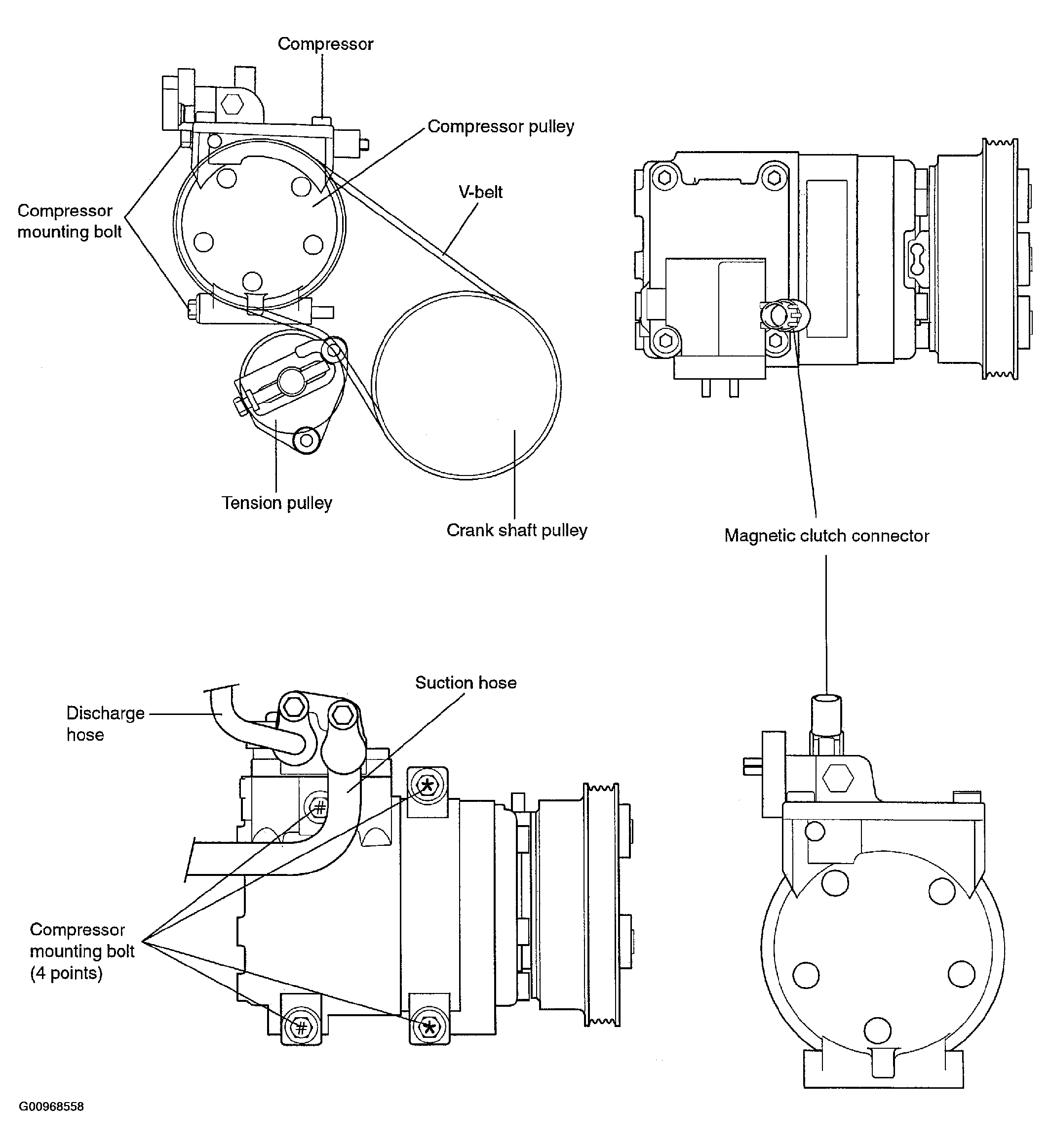

Fig 1: Compressor Configuration
G00968558Courtesy of HYUNDAI MOTOR CO.
CAUTION: '*' Marked bolt should be tightened first.
