Multi Function Switch, Horn System & Ignition Switch: Horns: Components: Adjustment

Operate the horn, and adjust the tone to a suitable level by turning the adjusting screw.

NOTE: After adjustment, apply a small amount of paint around the screw head to keep it from loosening

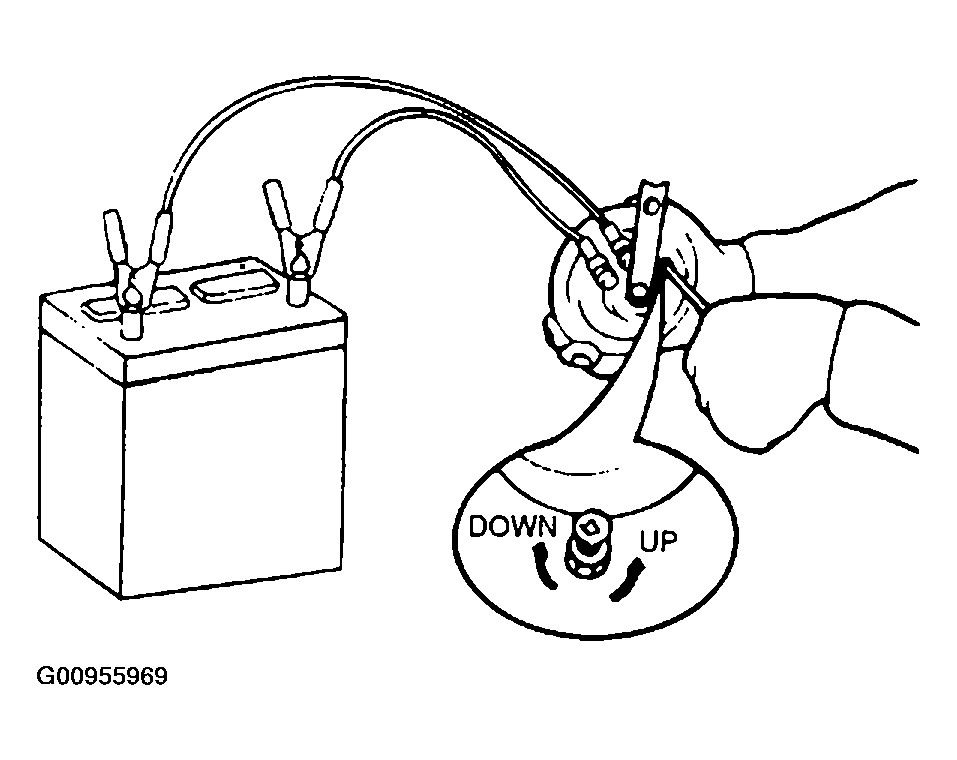

Fig 1: Adjusting Horn Tone
G00955969Courtesy of HYUNDAI MOTOR CO.
