Ignition Switch: Inspection

  1. Remove the driver's side crash pad lower panel.

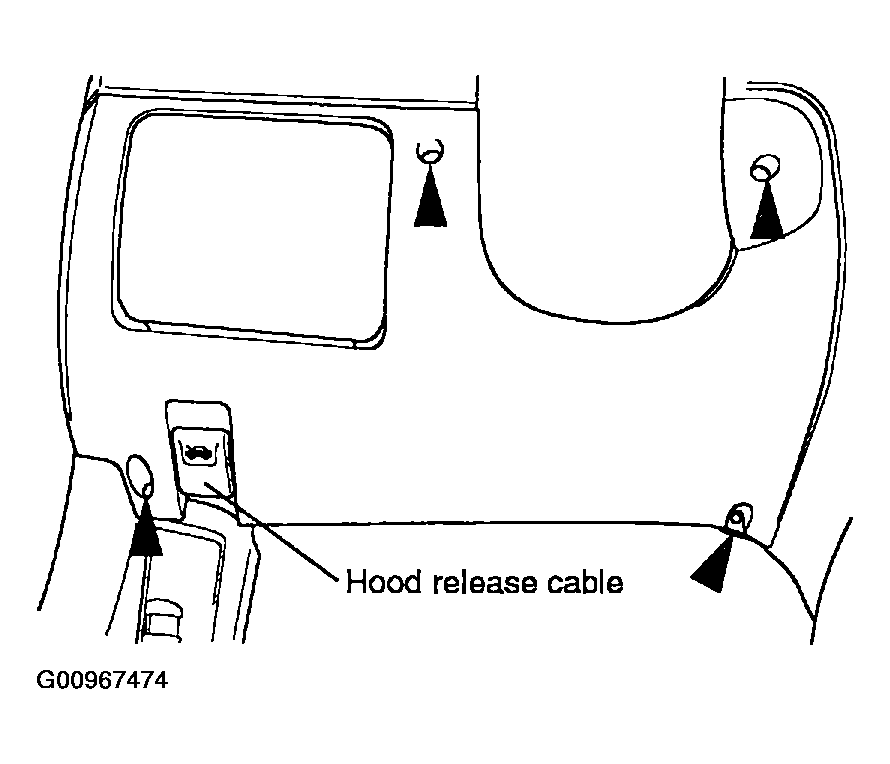

    Fig 1: Identifying Driver's Side Crash Pad Lower Panel
    G00967474Courtesy of HYUNDAI MOTOR CO.
  2. Disconnect the ignition switch connector and the door warning switch connector under the steering column.

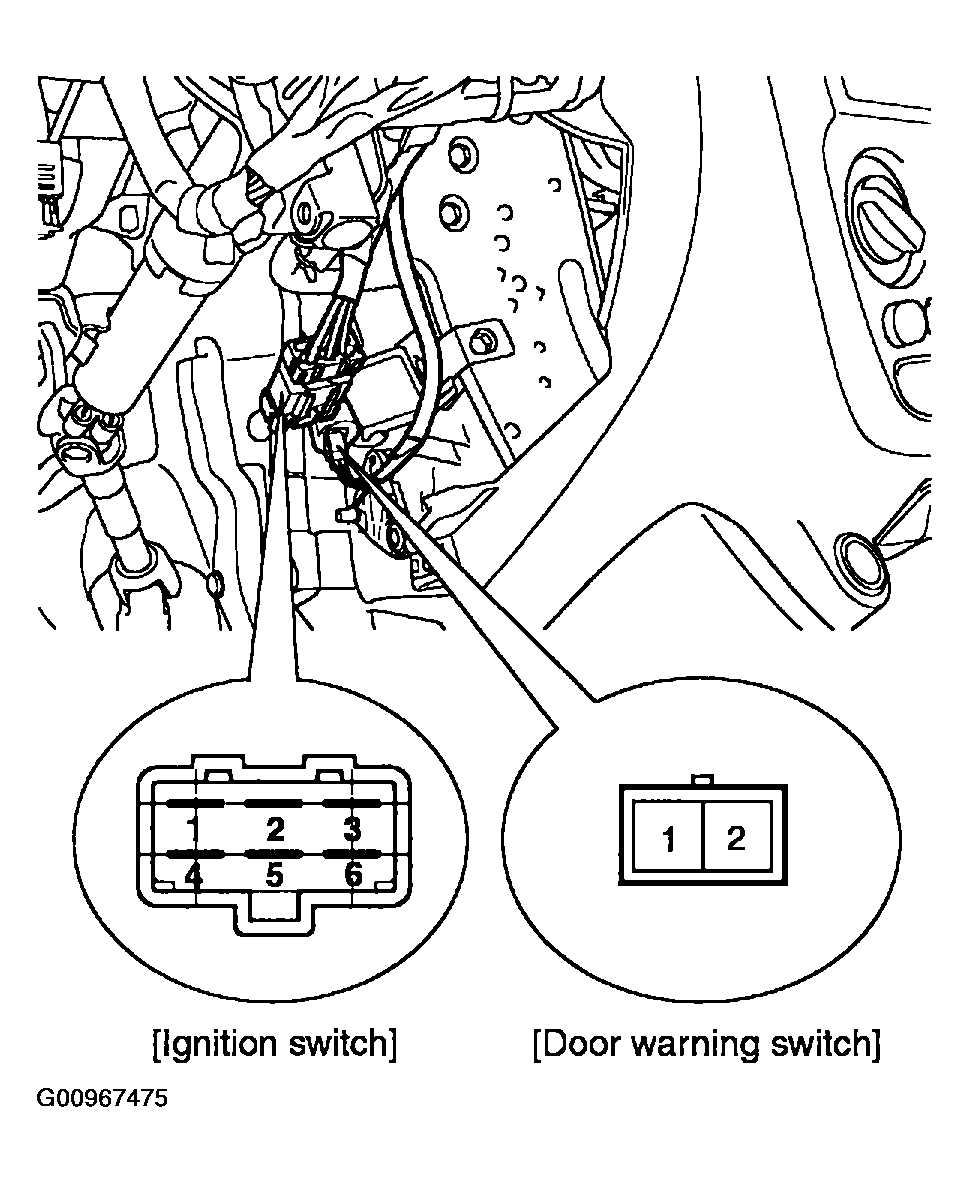

    Fig 2: Identifying Ignition Switch Connector & Door Warning Switch Connector
    G00967475Courtesy of HYUNDAI MOTOR CO.
  3. Check for continuity between the terminals.
  4. If continuity is not as specified, replace the switch.

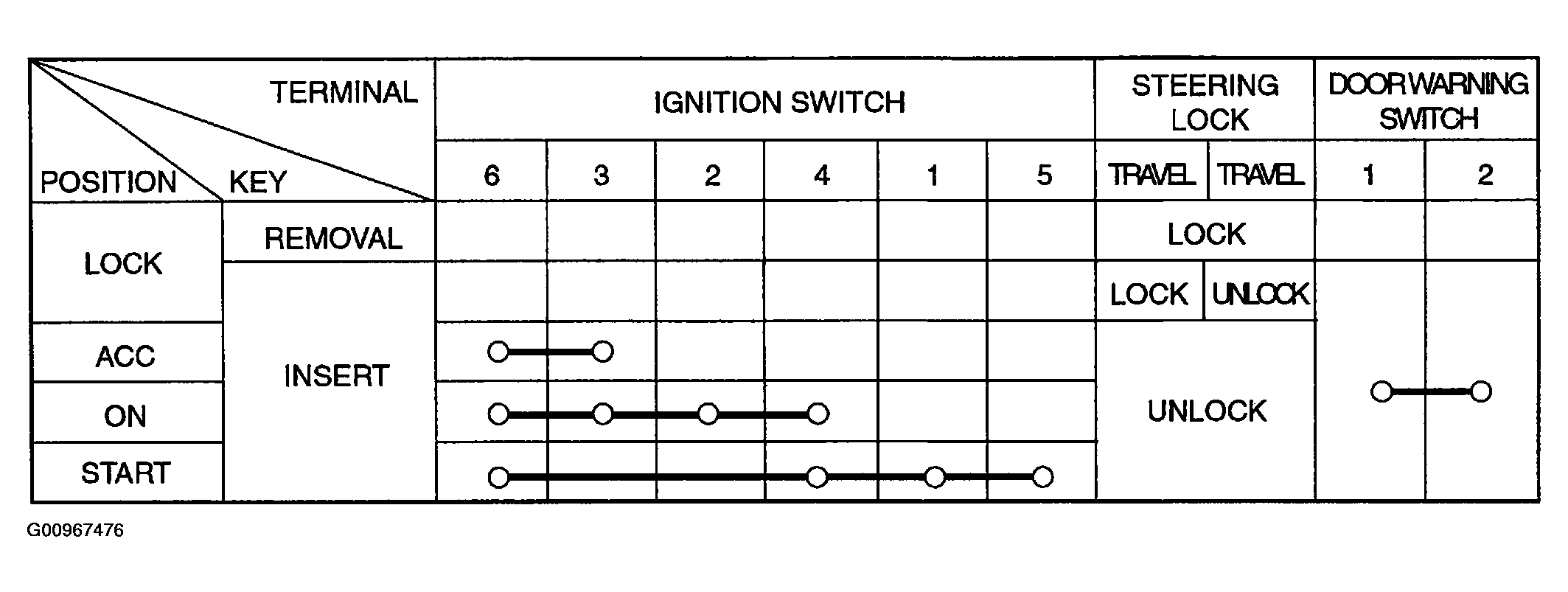

Fig 3: Ignition Switch & Door Warning Switch Continuity Table
G00967476Courtesy of HYUNDAI MOTOR CO.
