Removal & Installation

Disconnect the negative (-) battery terminal.

Fig 1: Disconnecting Battery Cable
Courtesy of HYUNDAI MOTOR CO.
Remove the 2 bolts and disconnect the airbag connector and the horn connector, then remove the airbag module.
NOTE: Remove the horn pad only for vehicle without airbag.

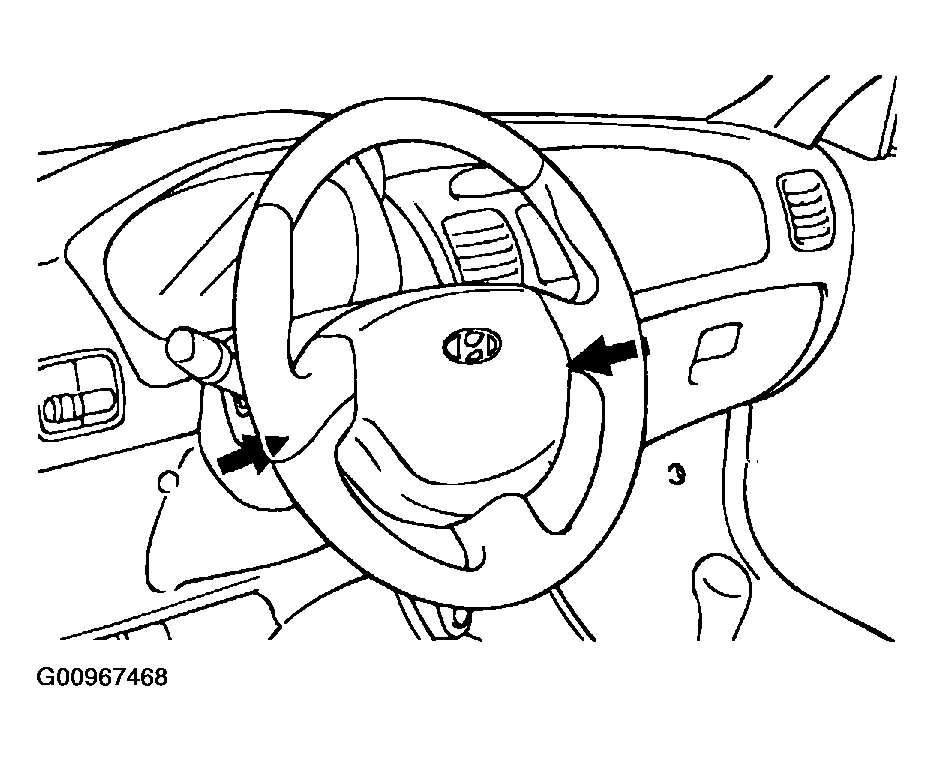

Fig 2: Identifying Horn Pad Or Air Bag Module
Courtesy of HYUNDAI MOTOR CO.
Remove the steering wheel lock nut.

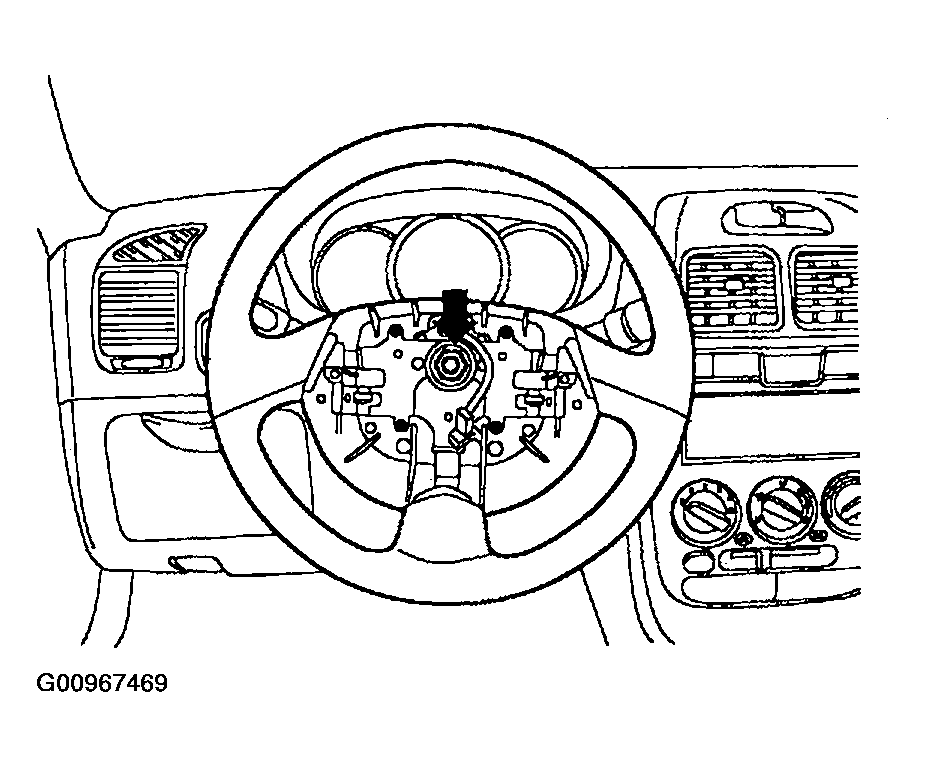

Fig 3: Identifying Steering Wheel Lock Nut
Courtesy of HYUNDAI MOTOR CO.
Remove the steering wheel with special tool (09561-11002)
NOTE: Do not hammer on the steering wheel to remove it. Doing so may damage the collapsible mechanism.

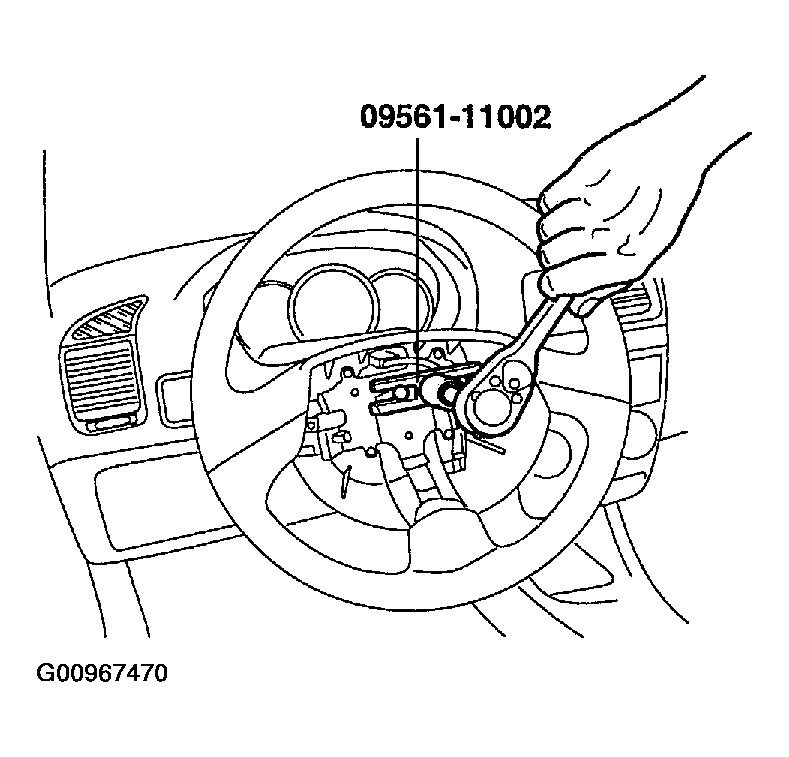

Fig 4: Removing Steering Wheel
Courtesy of HYUNDAI MOTOR CO.
Remove the steering column shroud after removing 3 screws.

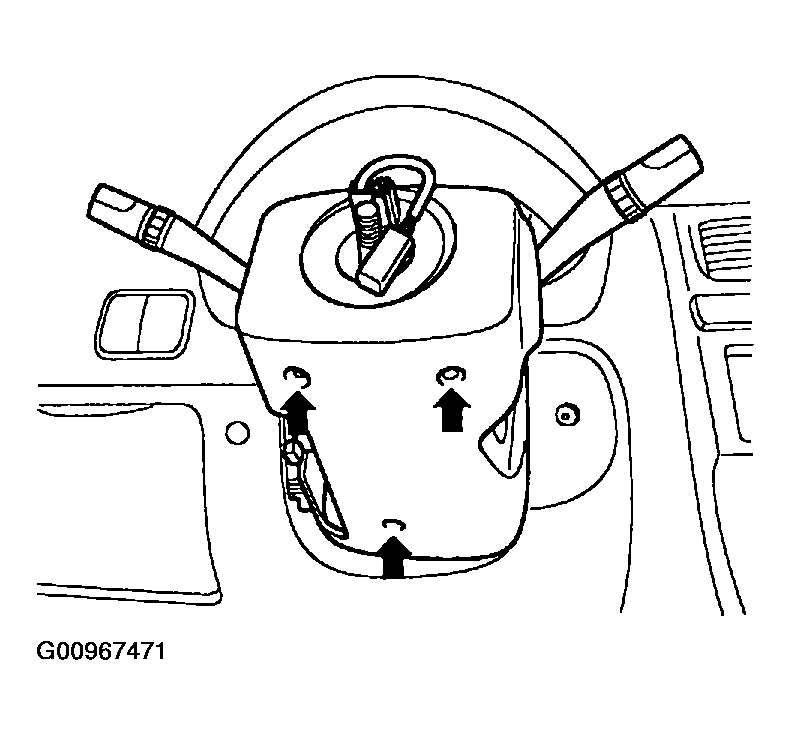

Fig 5: Identifying Steering Column Shroud Screws
Courtesy of HYUNDAI MOTOR CO.
Remove the screws holding the multi-function switch, then disconnect the wire connector.
Remove the multi-function switch assembly.

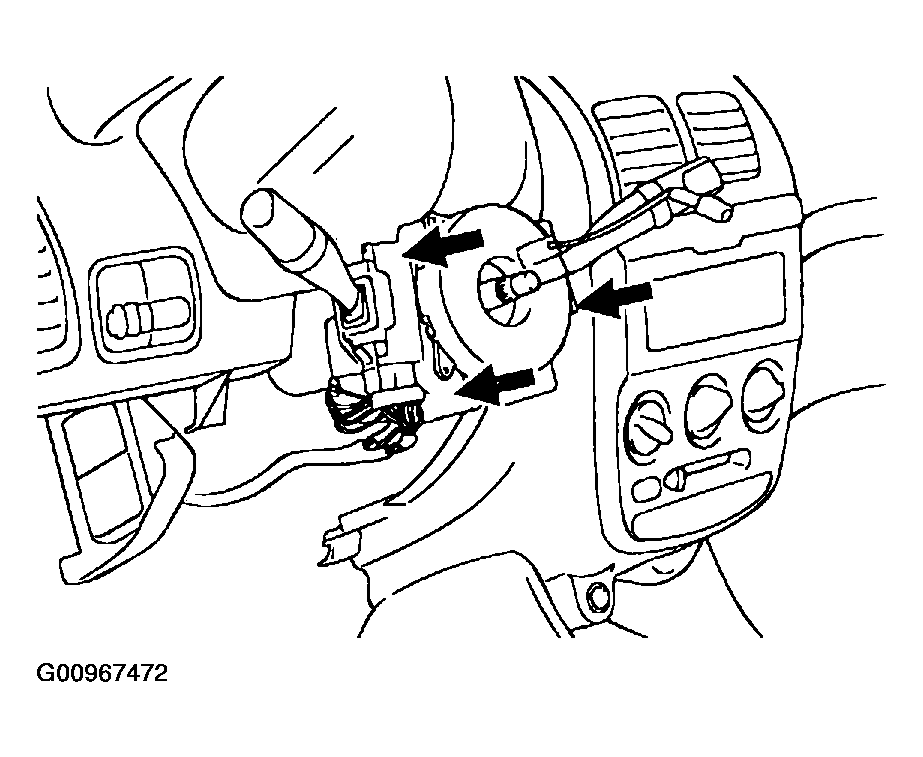

Fig 6: Identifying Multi Function Switch
Courtesy of HYUNDAI MOTOR CO.
Remove the steering column mounting bolts.

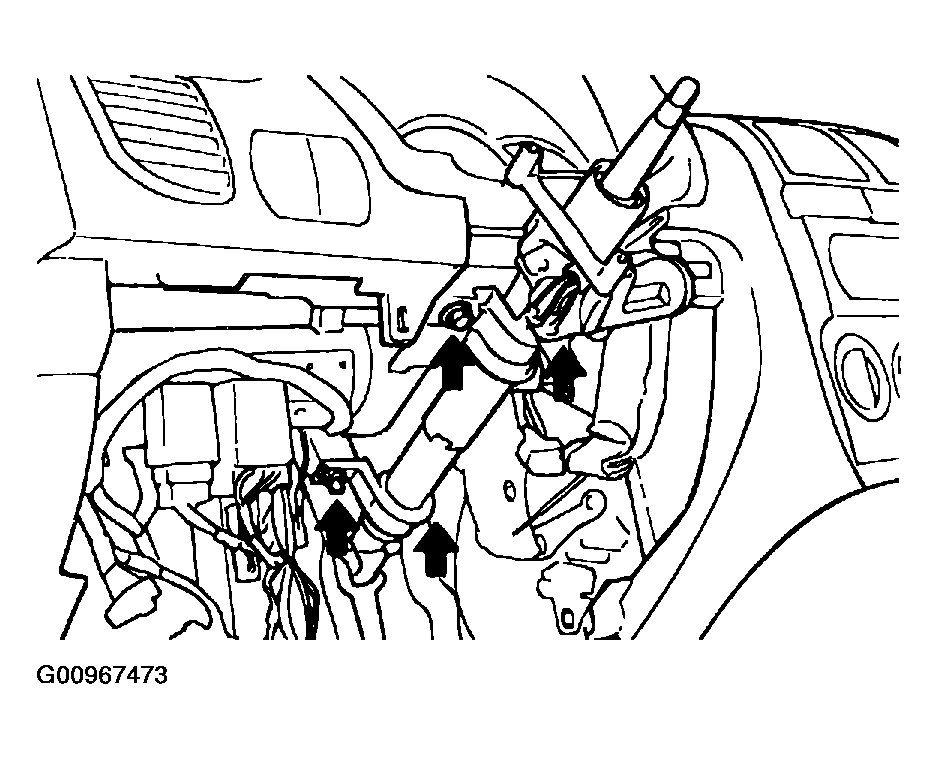

Fig 7: Identifying Steering Column Mounting Bolts
Courtesy of HYUNDAI MOTOR CO.
Remove the key lock assembly from the steering column shaft.
Installation is the reverse of removal.
