Dimmer & Passing Switch (Connector No. : M10-2)

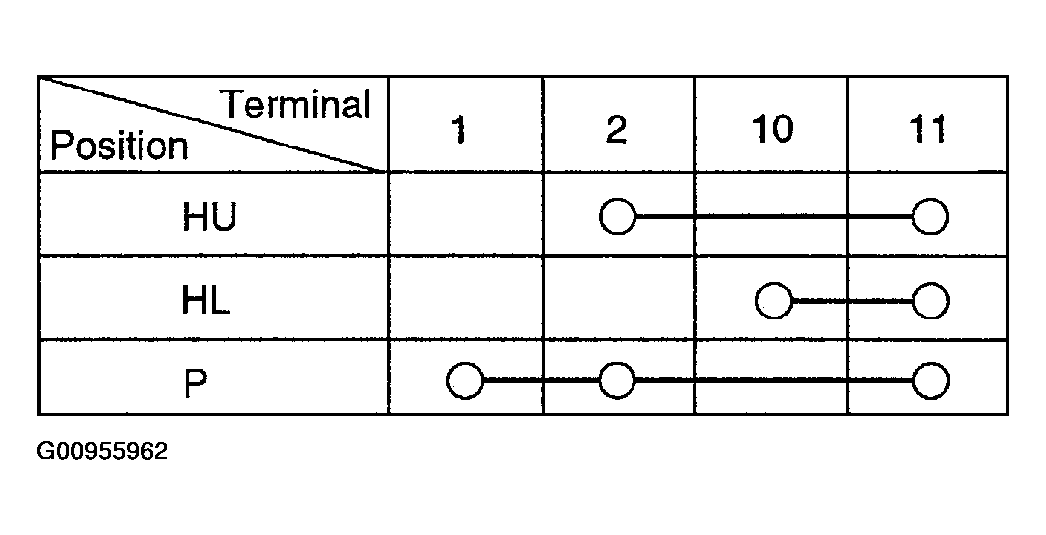

Fig 1: Dimmer & Passing Switch Continuity Table

G00955962

Courtesy of HYUNDAI MOTOR CO.
