Lighting Switch (Connector No. : M10-2)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Lighting Switch (Connector No. : M10-2)

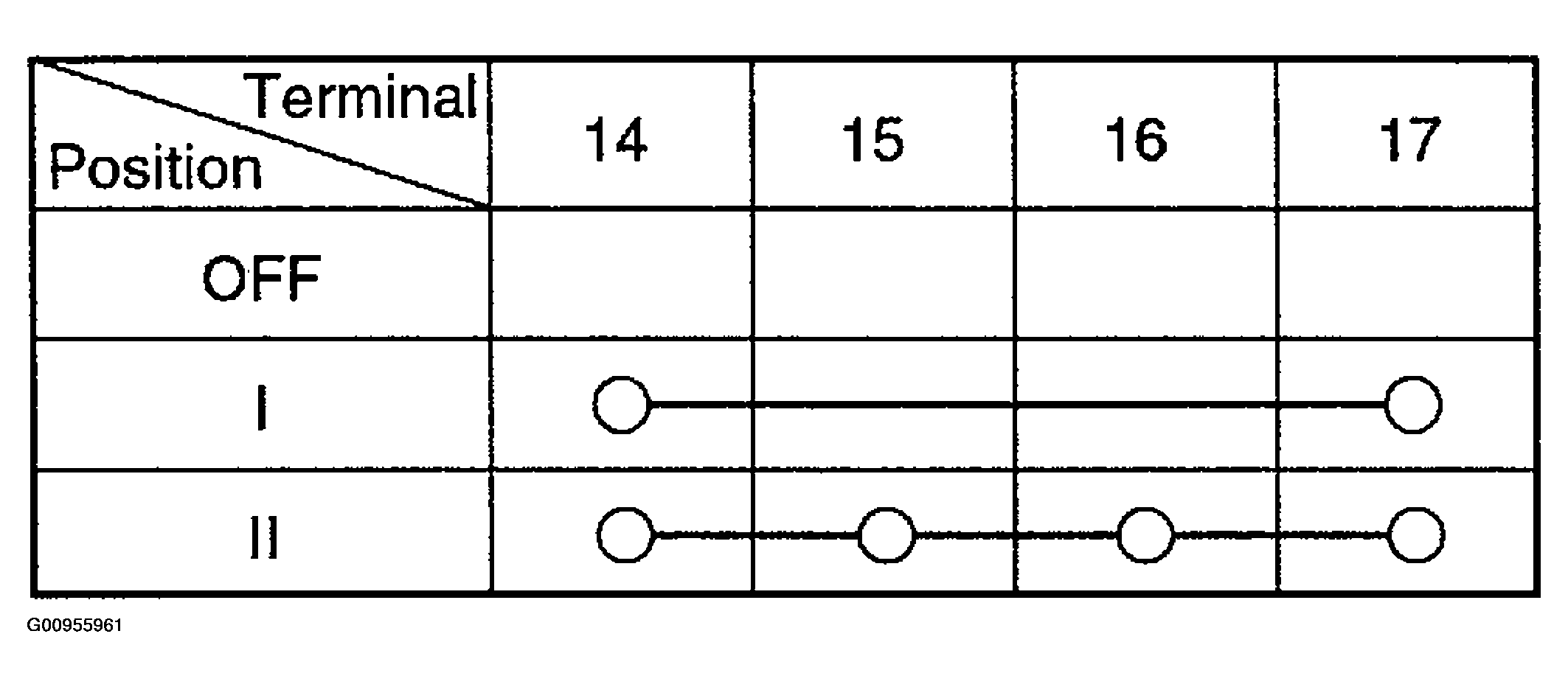

Fig 1: Lighting Switch Continuity Table
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
