Wiper & Washer Switch Inspection

With the multifunction switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the multifunction switch.

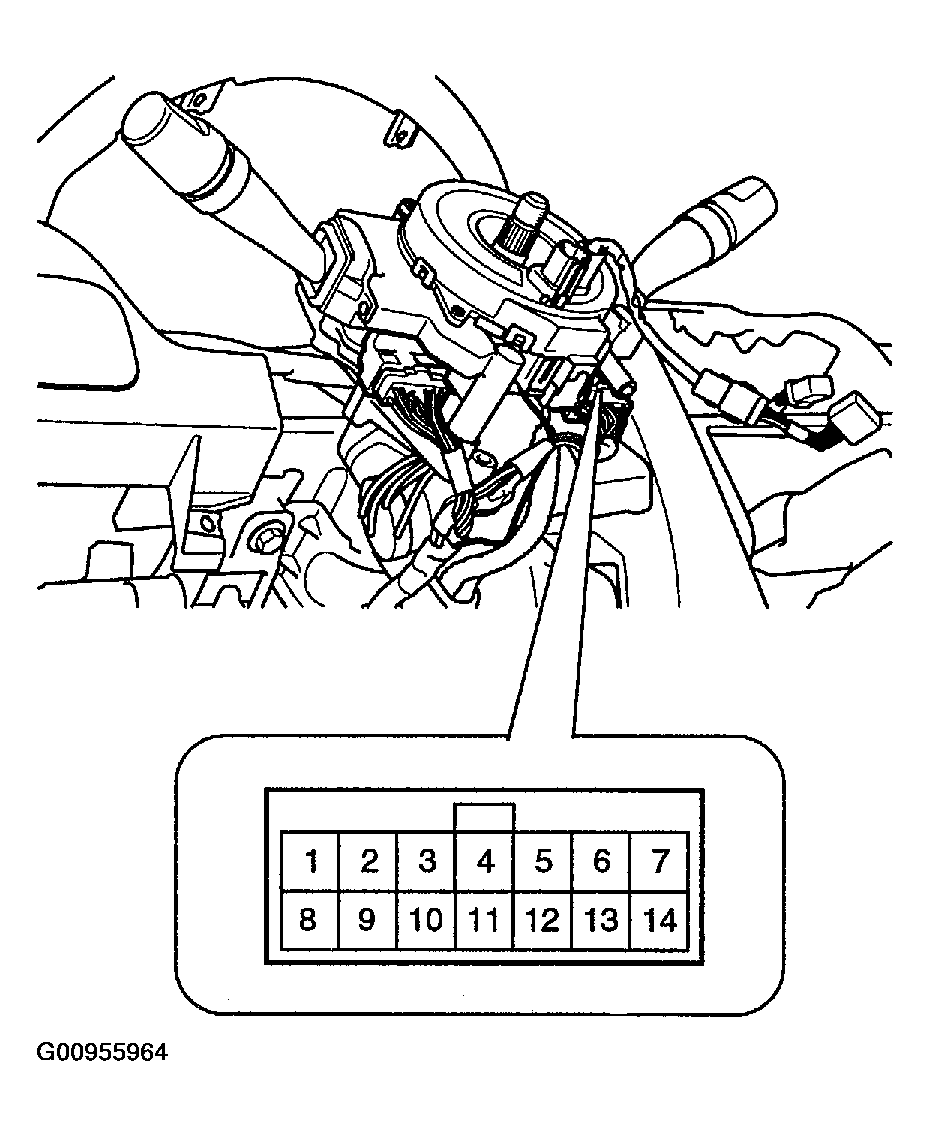

Fig 1: Identifying Wiper & Washer Switch Connector & Terminals
G00955964Courtesy of HYUNDAI MOTOR CO.
