Wiper Switch (Connector No. : M10-1)

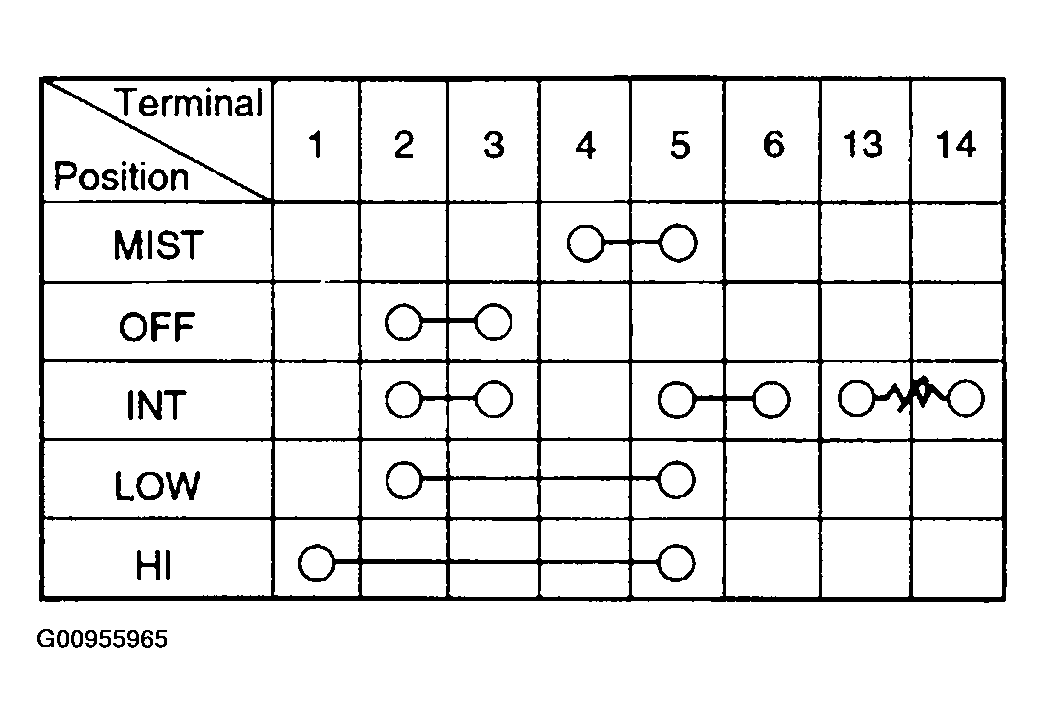

Fig 1: Wiper Switch Continuity Table
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
