Multi Function Switch: Components: Notes

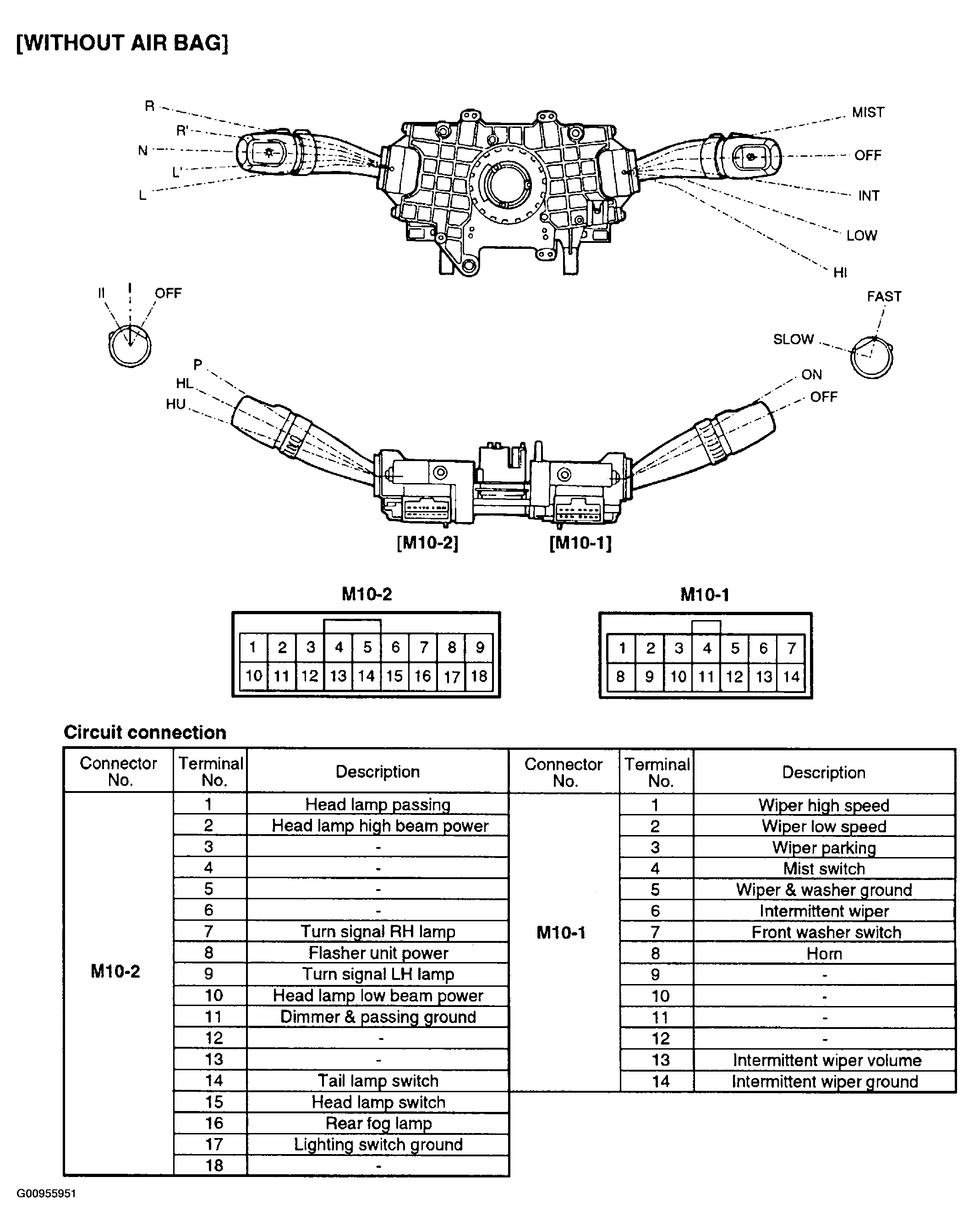

Fig 1: Multi Function Switch Components (Without Air Bag)
G00955951Courtesy of HYUNDAI MOTOR CO.

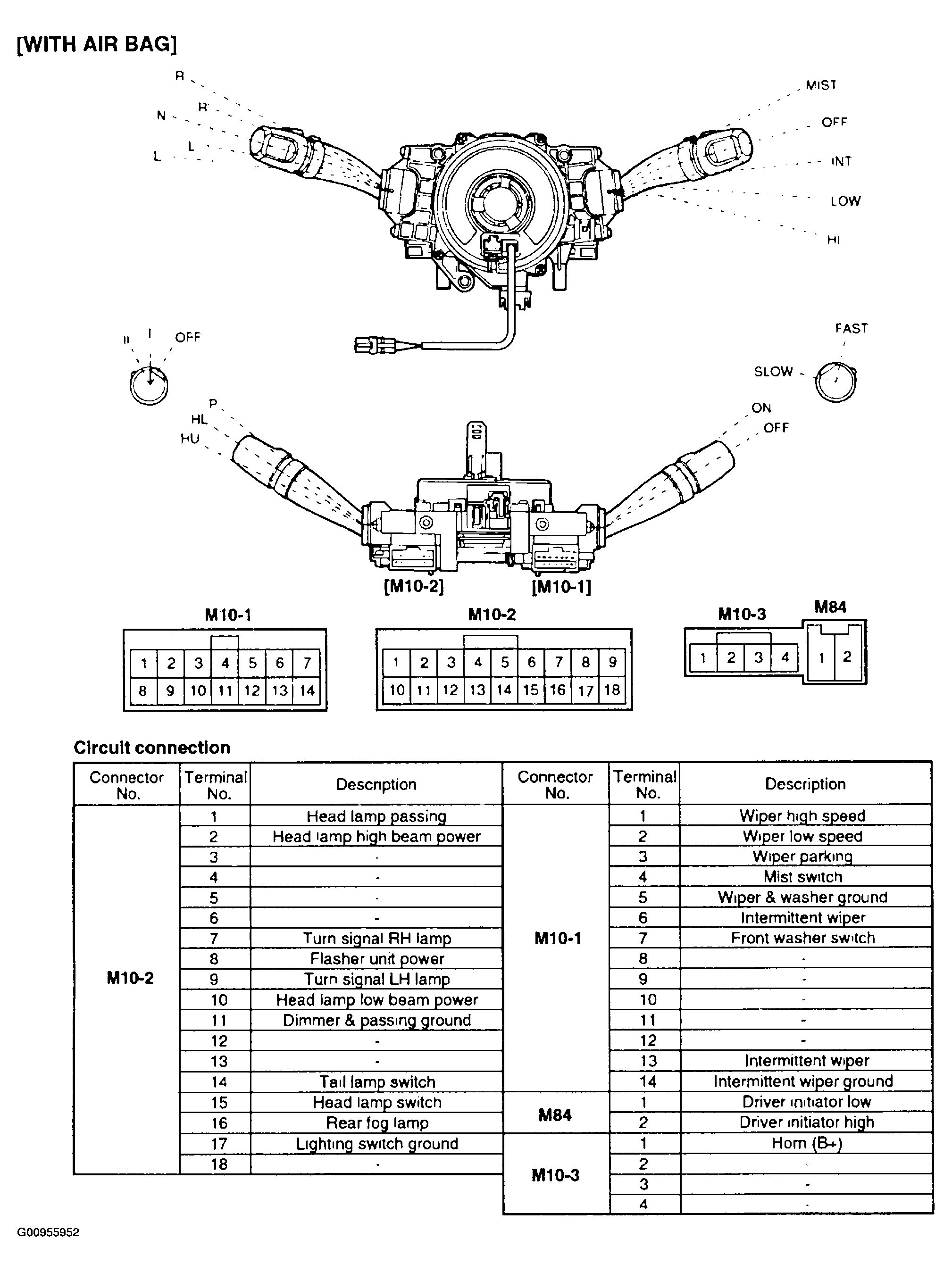

Fig 2: Multi Function Switch Components (With Air Bag)
G00955952Courtesy of HYUNDAI MOTOR CO.
