Without Air Bag

  1. Remove the horn pad and steering wheel.

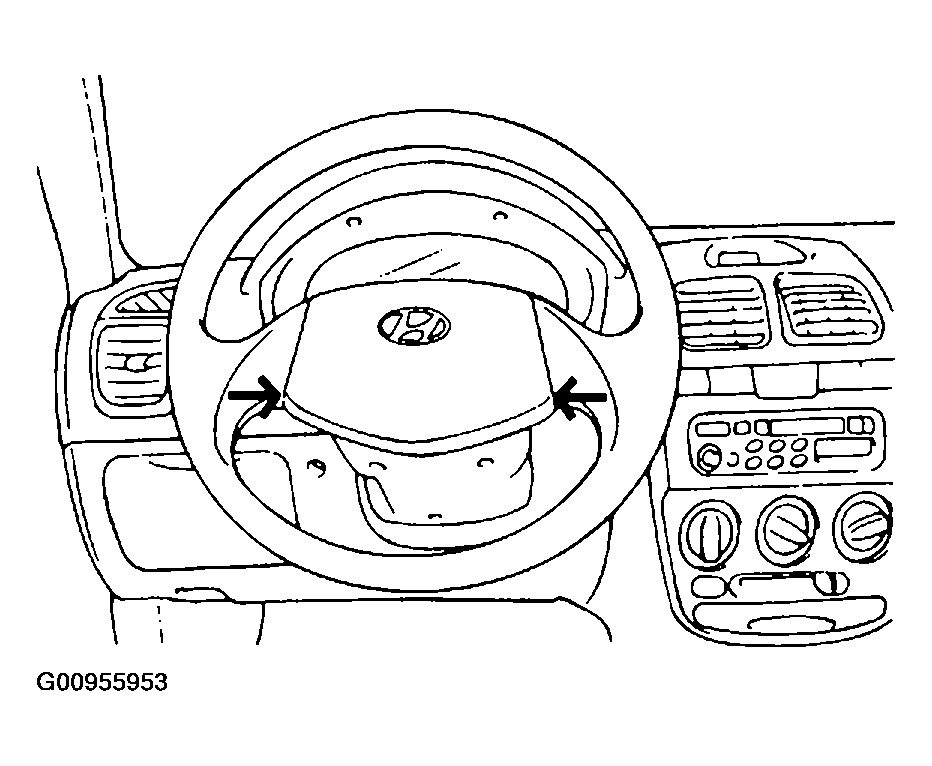

    Fig 1: Identifying Horn Pad
    G00955953Courtesy of HYUNDAI MOTOR CO.
  2. Remove the upper and lower steering column shrouds.

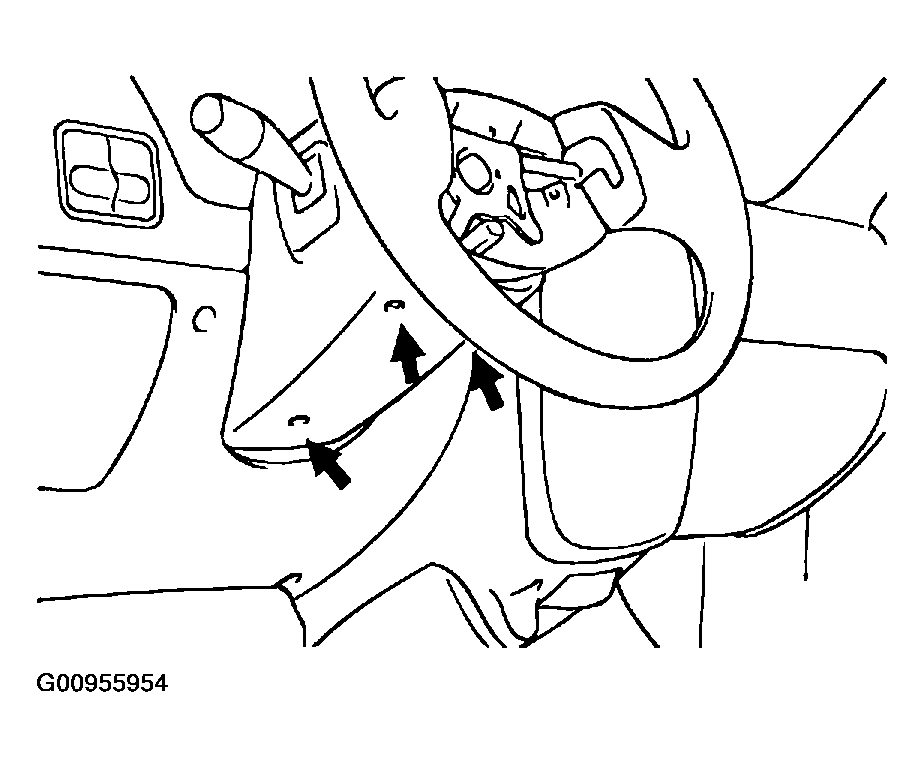

    Fig 2: Identifying Steering Column Shroud Screws
    G00955954Courtesy of HYUNDAI MOTOR CO.
  3. Remove the multifunction switch assembly mounting screws and remove the multifunction switch assembly.
  4. Installation is the reverse of removal.
