Tail Gate: Components

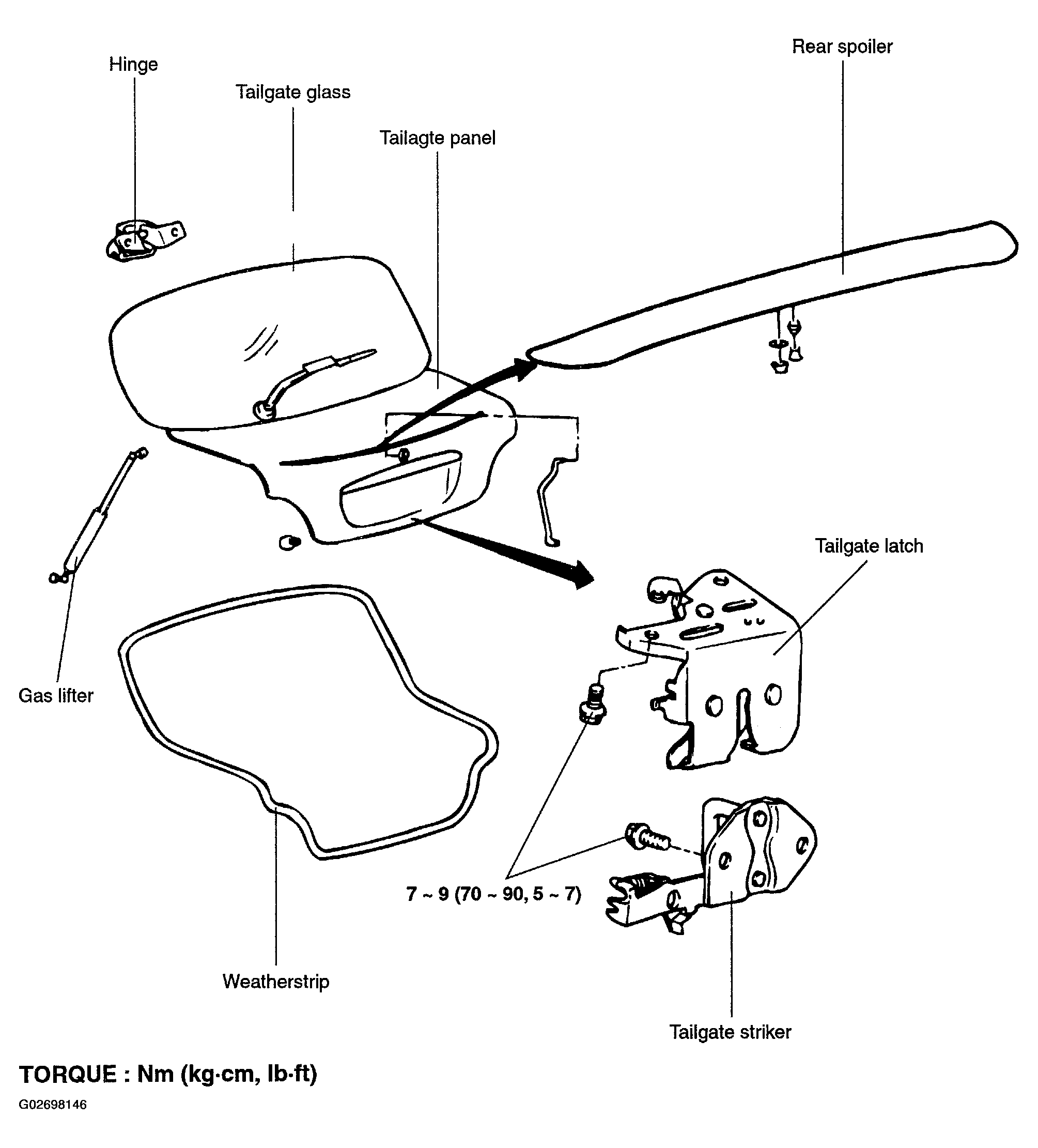

Fig 1: Tail Gate Components
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
