General Information - Body Electrical: General: Troubleshooting: Audio: Notes

There are six areas where a problem can occur: wiring harness, the radio, the cassette tape deck, the CD player, the speaker, and antenna. Troubleshooting enables you to confine the problem to a particular area.

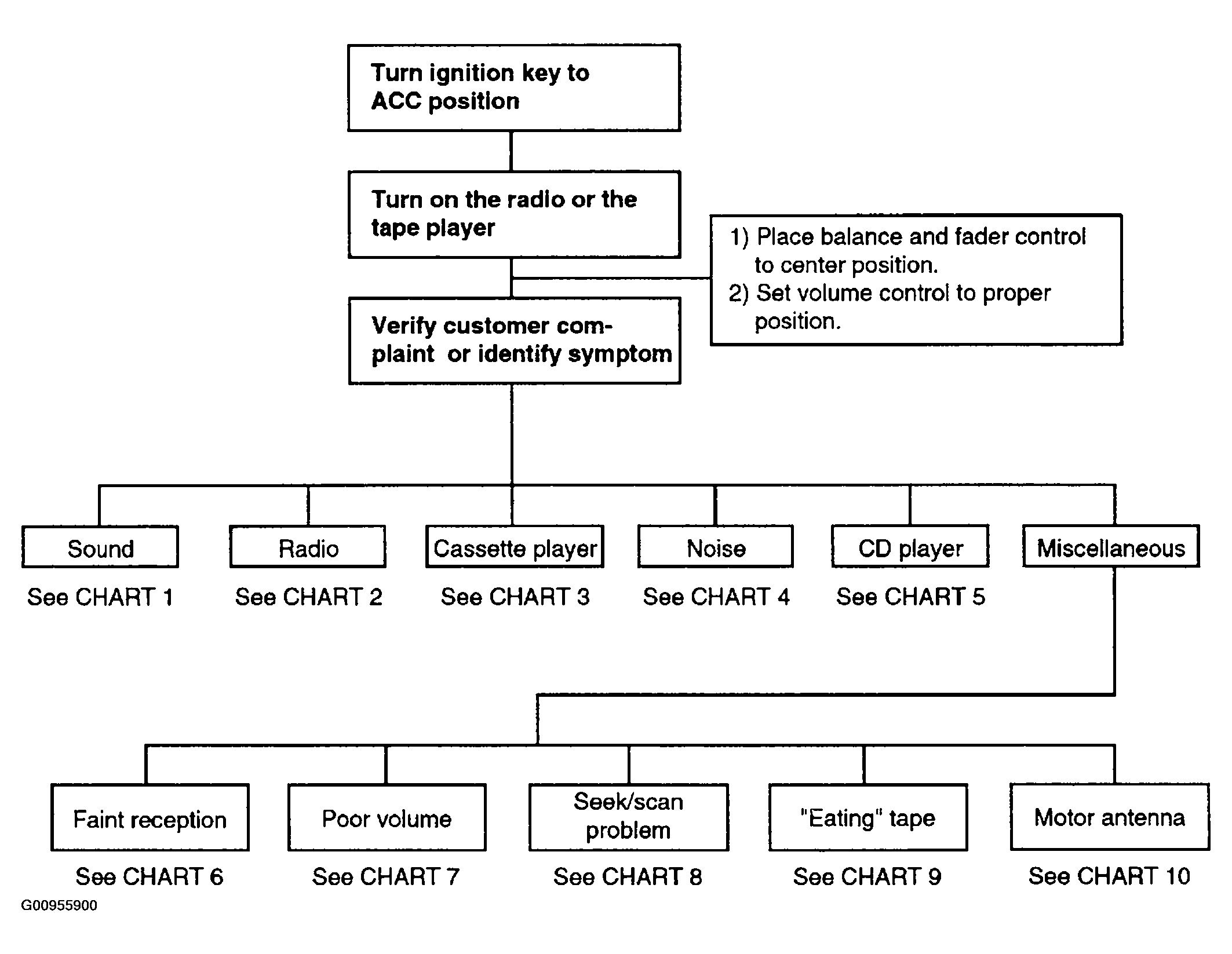

Fig 1: Audio Troubleshooting Flow Chart
G00955900Courtesy of HYUNDAI MOTOR CO.
