Emission Systems & Sub-Systems

Specific removal and installation procedures for emission systems and sub-systems components are not available from the manufacturer. Consult included illustrations to locate desired component(s) and provide visual reference for removal and installation. See Fig 1-Fig 9 .

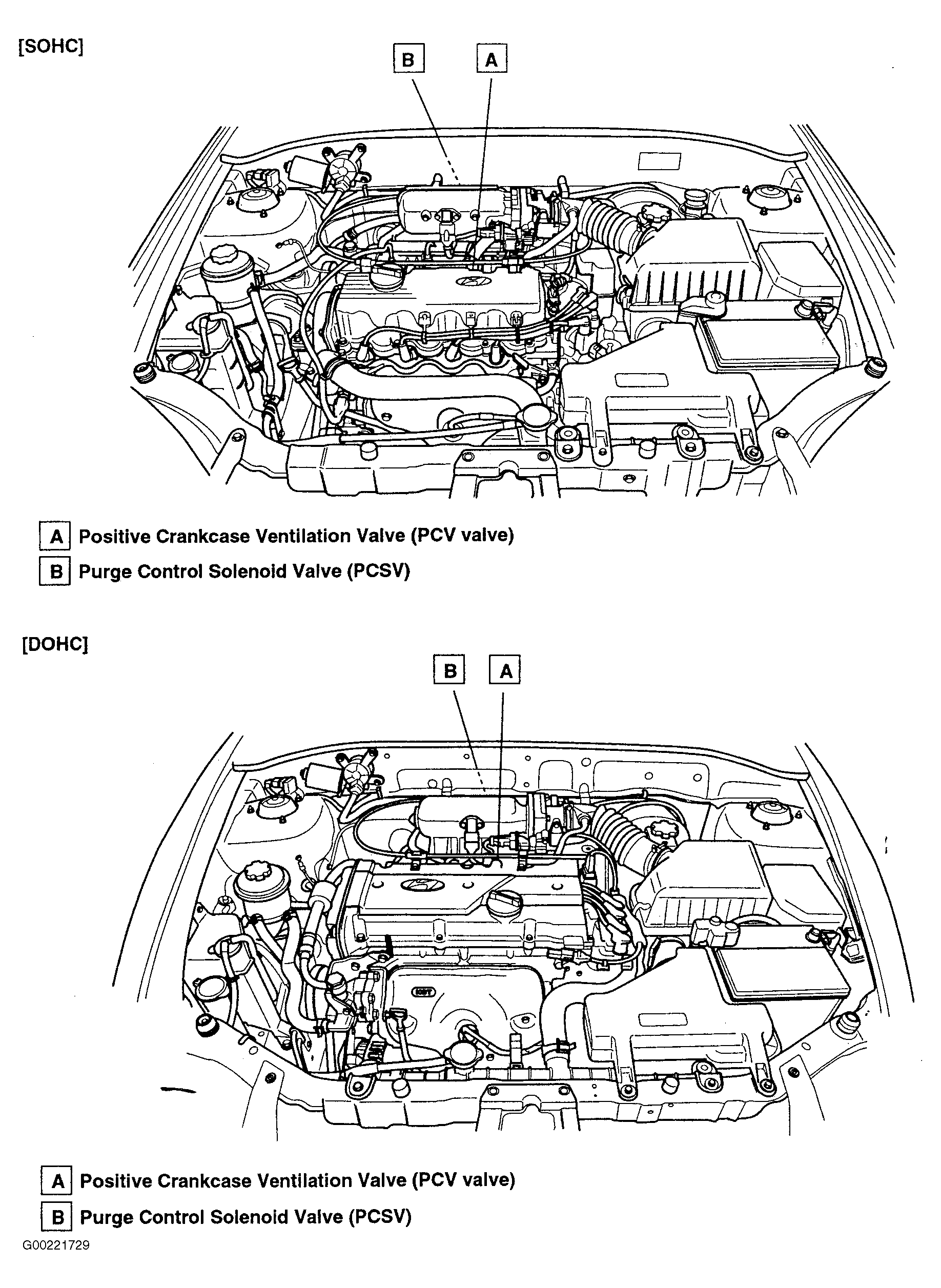

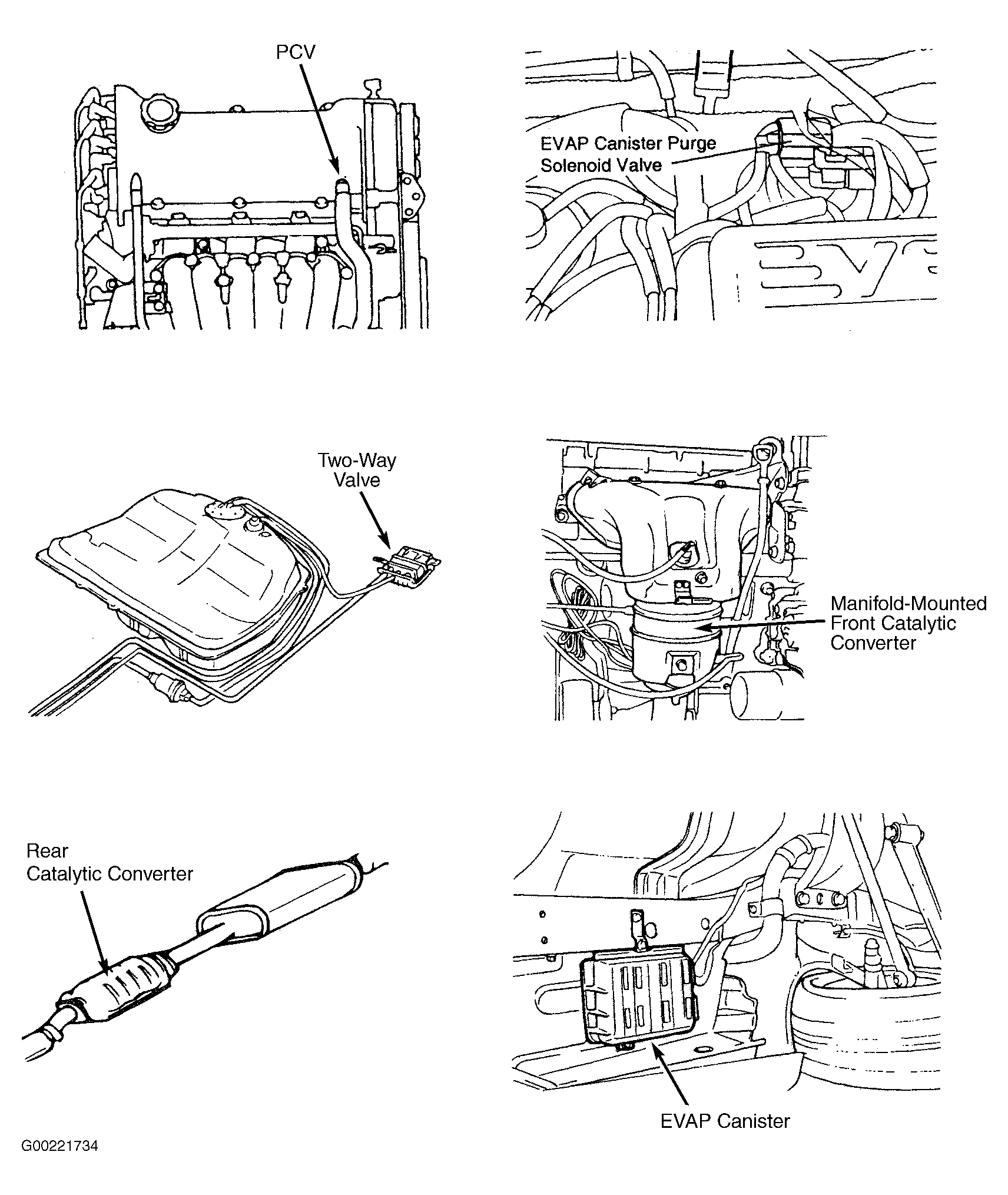

Fig 1: Locating Emissions Control Components (Accent - 1 Of 2)

Courtesy of HYUNDAI MOTOR CO.

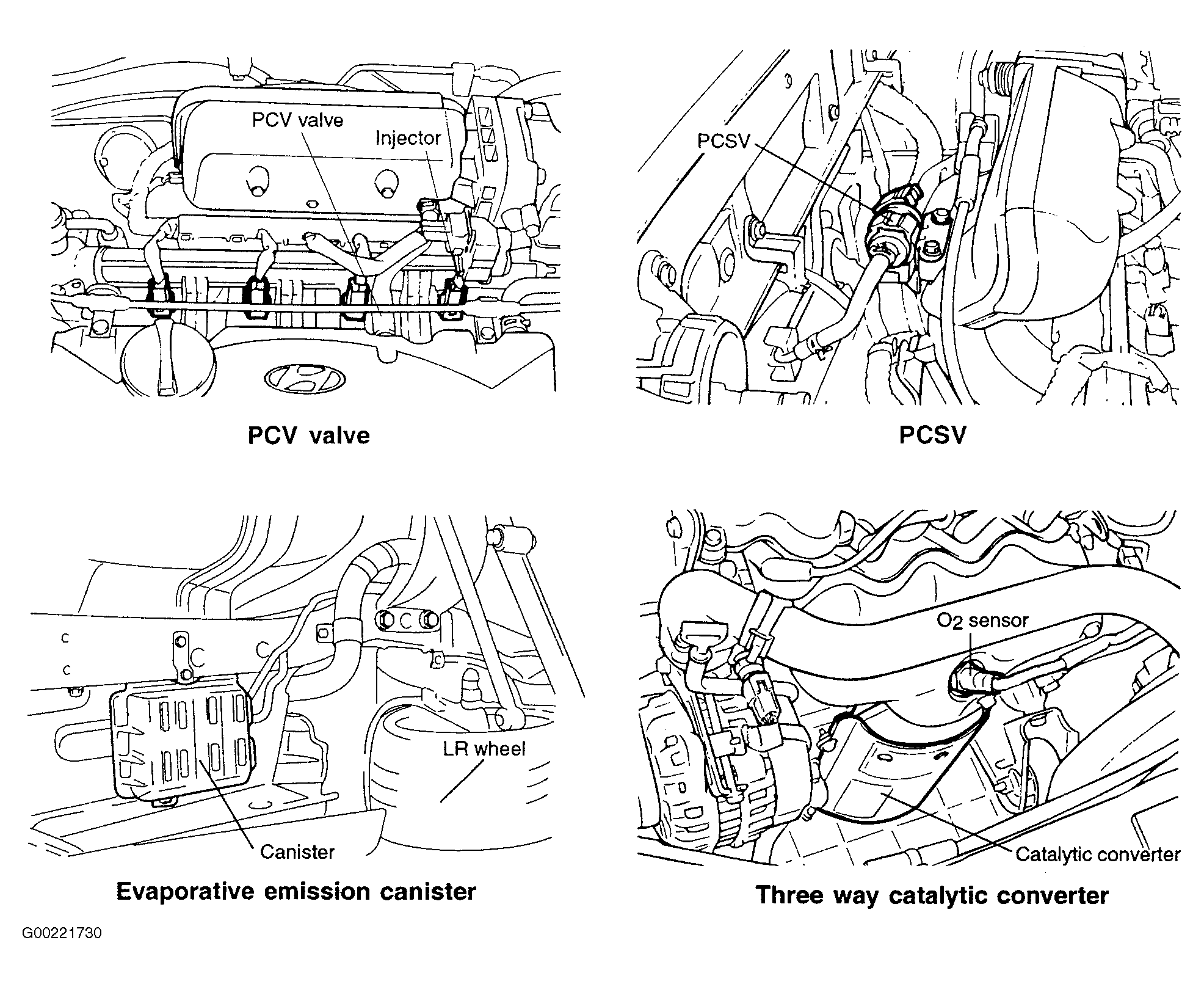

Fig 2: Locating Emissions Control Components (Accent - 2 Of 2)

Courtesy of HYUNDAI MOTOR CO.

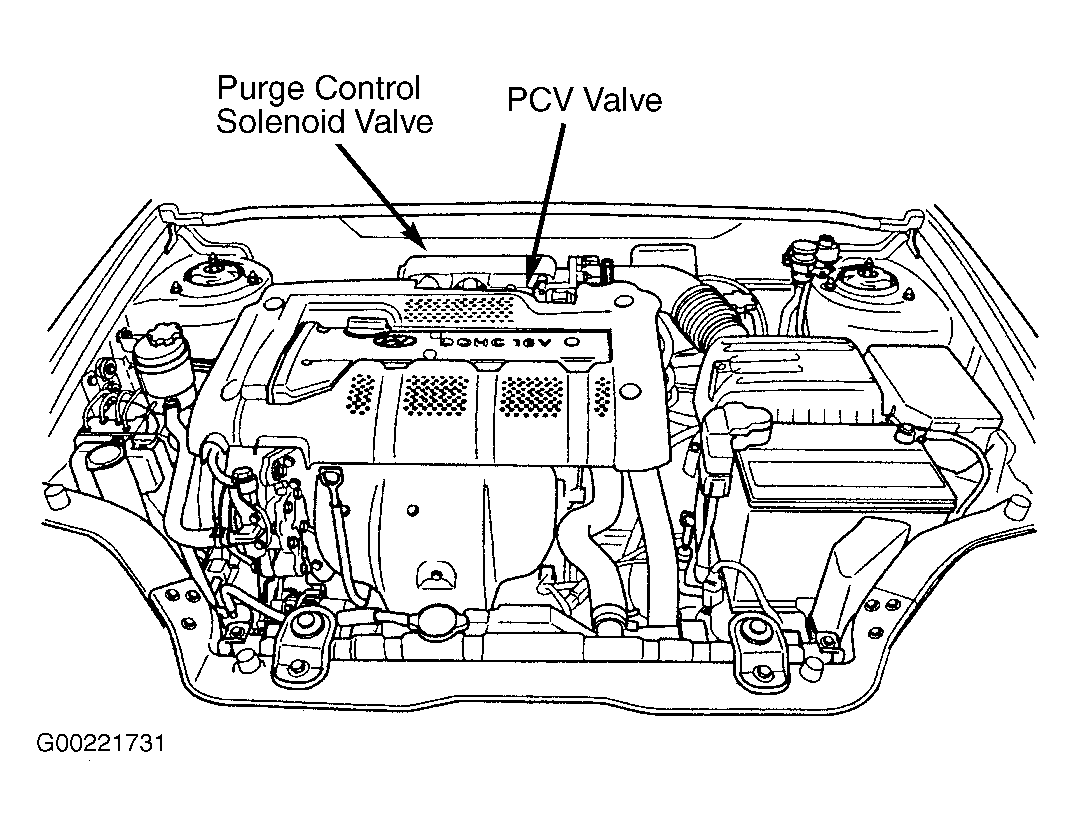

Fig 3: Locating Emissions Control Components (Sonata 2.4L Shown; Santa Fe 2.4L Is Similar)

Courtesy of HYUNDAI MOTOR CO.

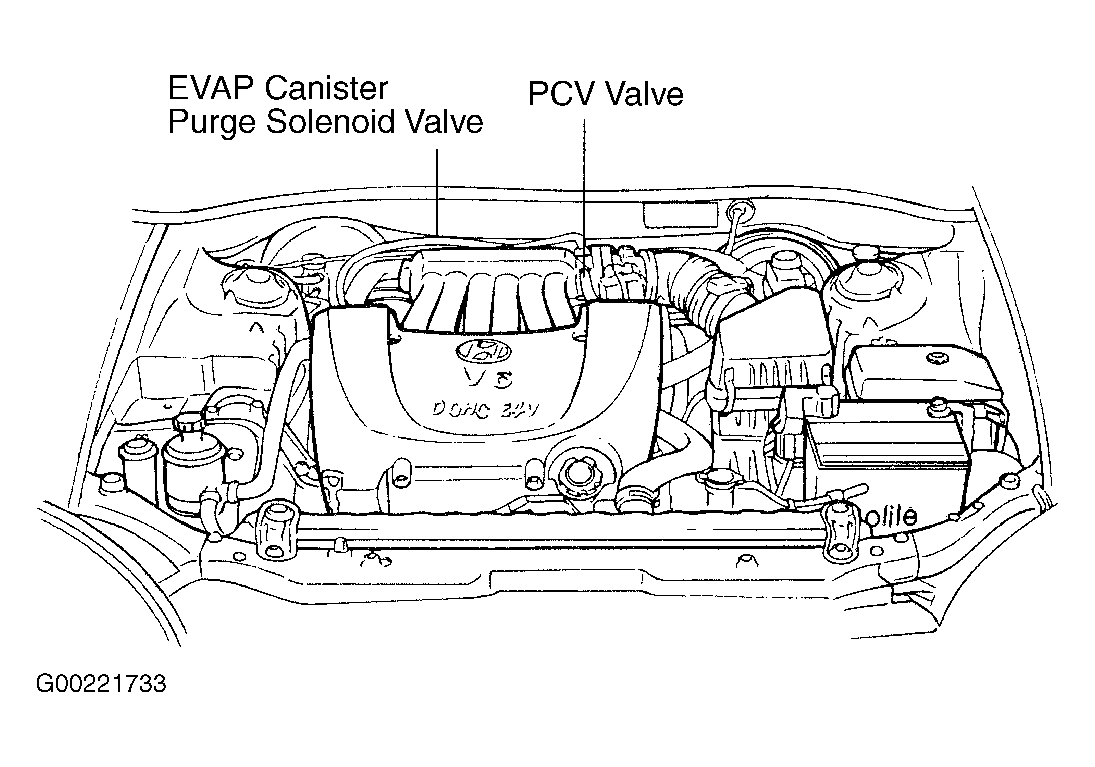

Fig 4: Locating Emissions Control Components (Sonata 2.7L Shown; Santa Fe 2.7L & Tiburon 2.7L Are Similar - 1 Of 2)

Courtesy of HYUNDAI MOTOR CO.

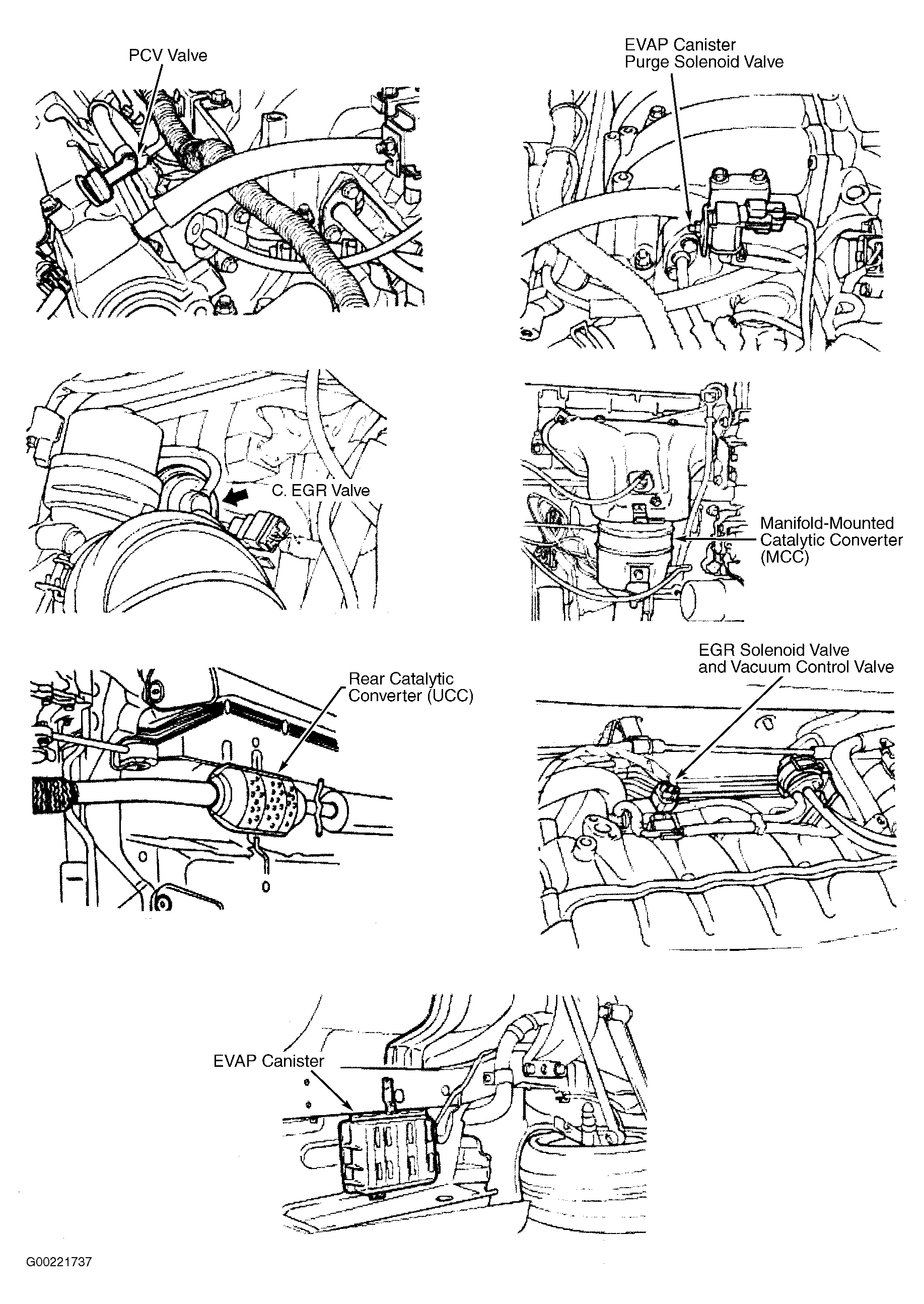

Fig 5: Locating Emissions Control Components (Sonata 2.7L Shown; Santa Fe 2.7L & Tiburon 2.7L Are Similar - 2 Of 2)

Courtesy of HYUNDAI MOTOR CO.

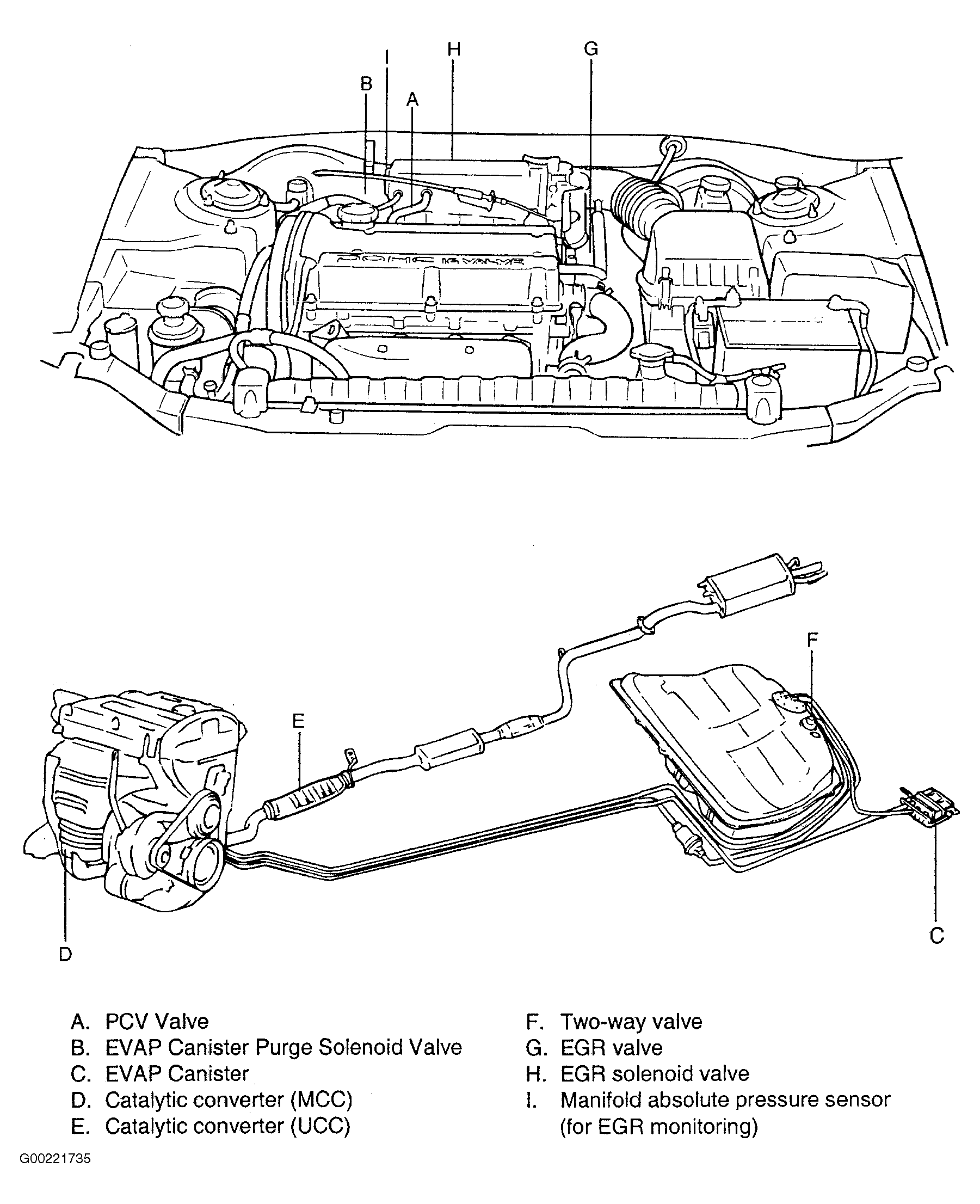

Fig 6: Locating Emissions Control Components (Tiburon 2.0L - 1 Of 2)

Courtesy of HYUNDAI MOTOR CO.

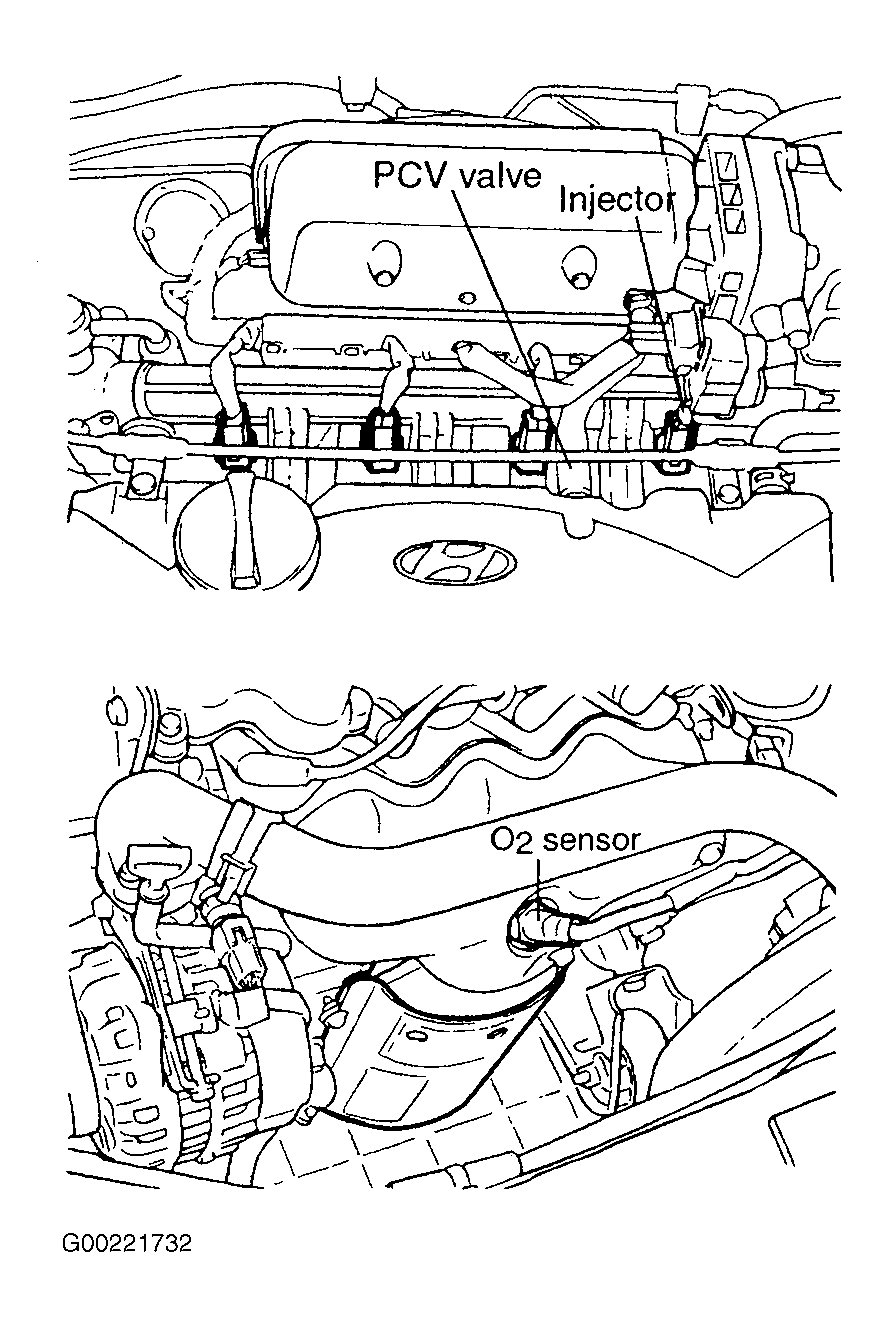

Fig 7: Locating Emissions Control Components (Tiburon 2.0L - 2 Of 2)

Courtesy of HYUNDAI MOTOR CO.

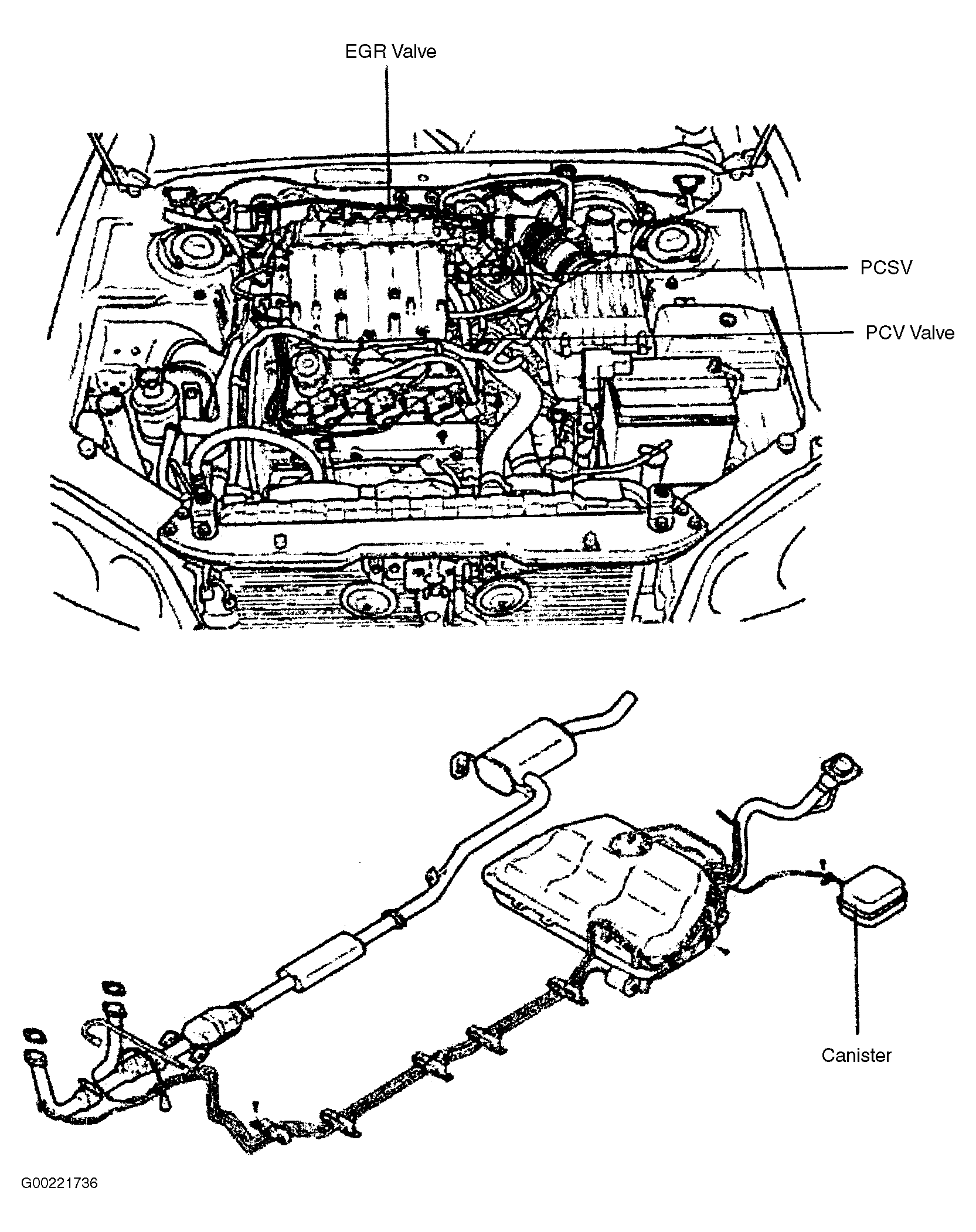

Fig 8: Locating Emissions Control Components (XG350 - 1 Of 2)

Courtesy of HYUNDAI MOTOR CO.

Fig 9: Locating Emissions Control Components (XG350 - 2 Of 2)

Courtesy of HYUNDAI MOTOR CO.
