Section 15 (Emissions Control System): General: Components
WARNING: This page is about a different car, the 2005 Hyundai Accent. However, it is still accessible from the selected car via links, so may be relevant.

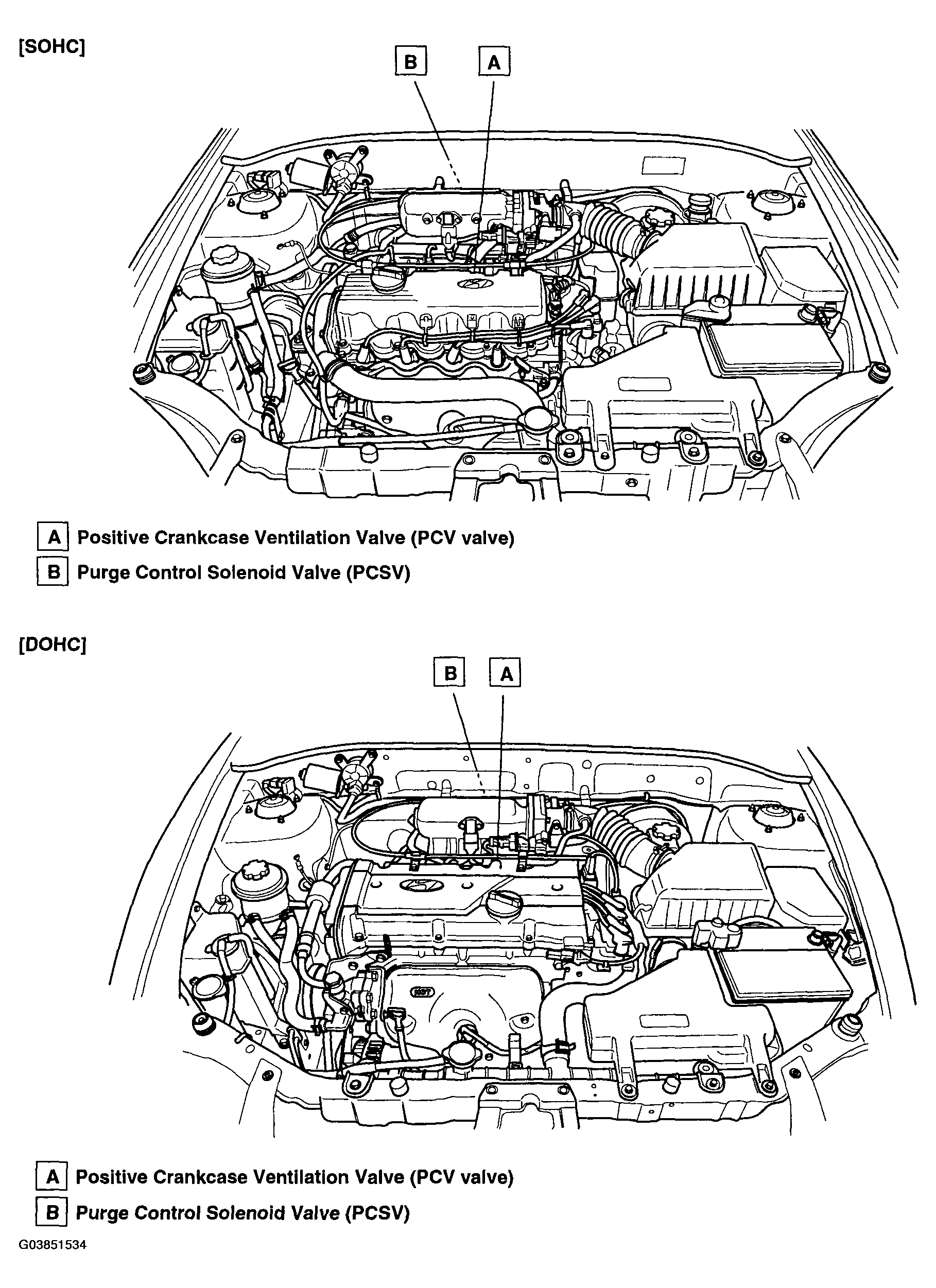

Fig 1: Locating Emission Control System Components (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

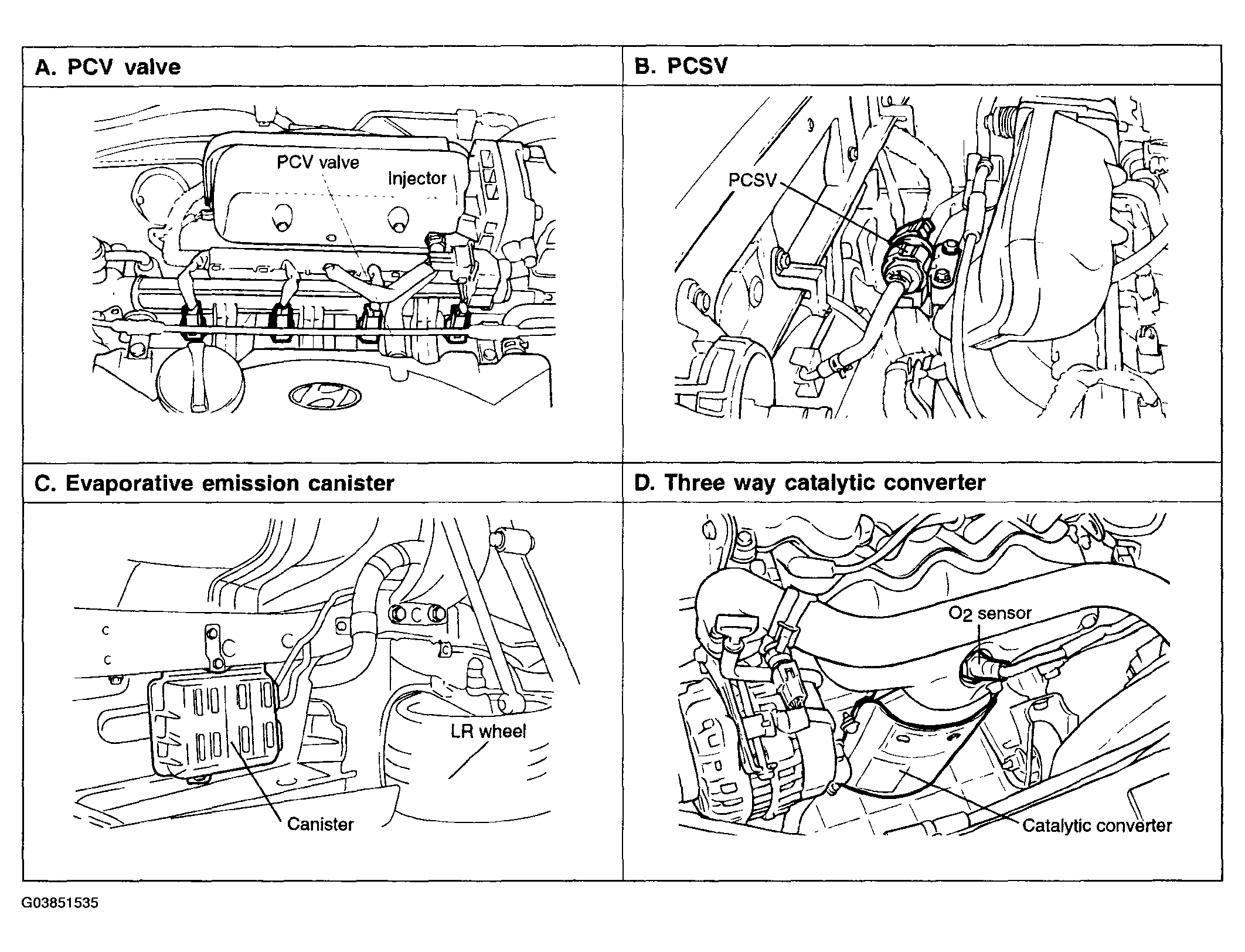

Fig 2: Locating Emission Control System Components (2 Of 2)
