Troubleshooting Flow

WARNING: This page is about a different variant/trim than selected.

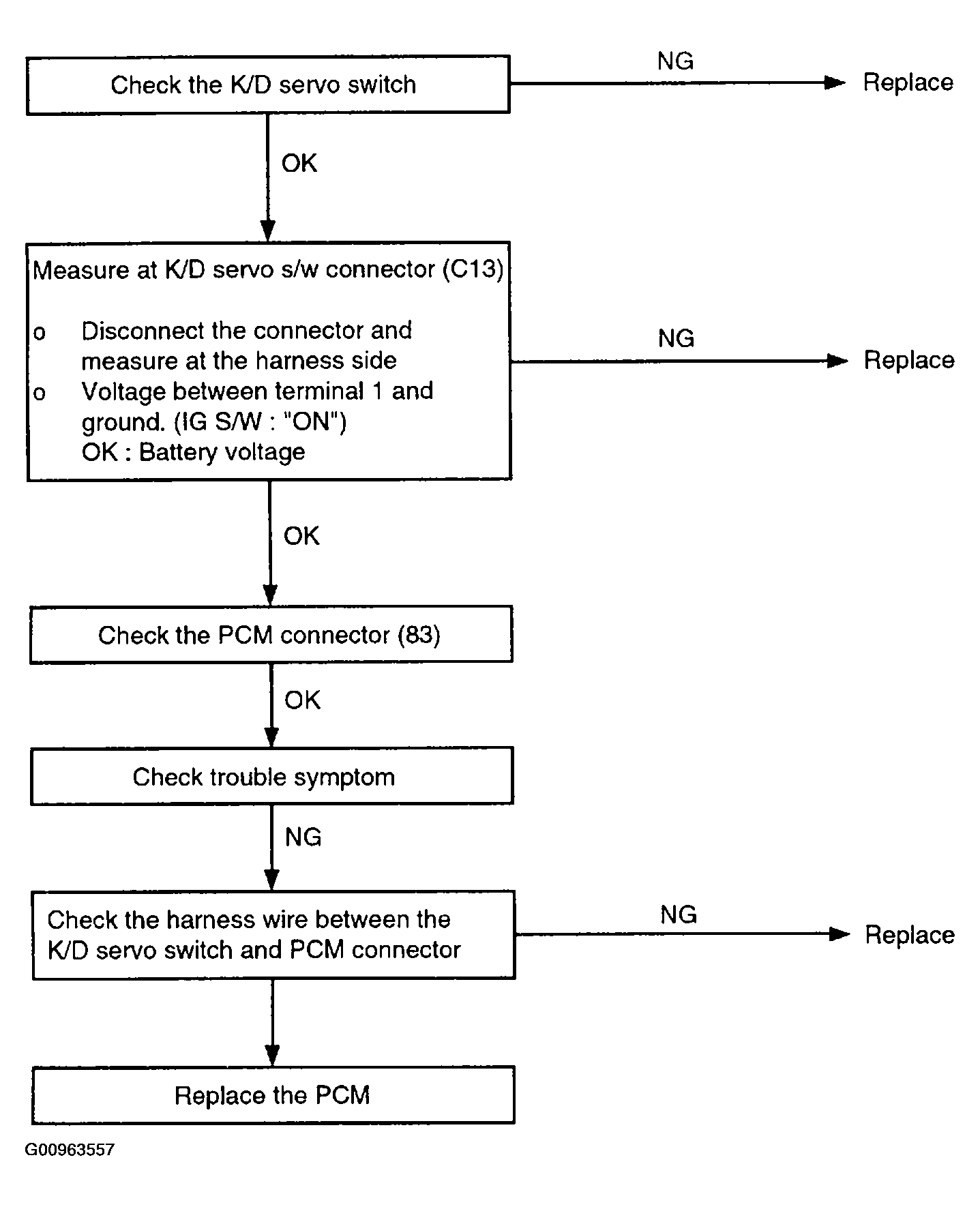

Fig 1: DTC P1709 Diagnostic Flow Chart
G00963557Courtesy of HYUNDAI MOTOR CO.
