Manual Valve
WARNING:
This page is about a different variant/trim than selected.

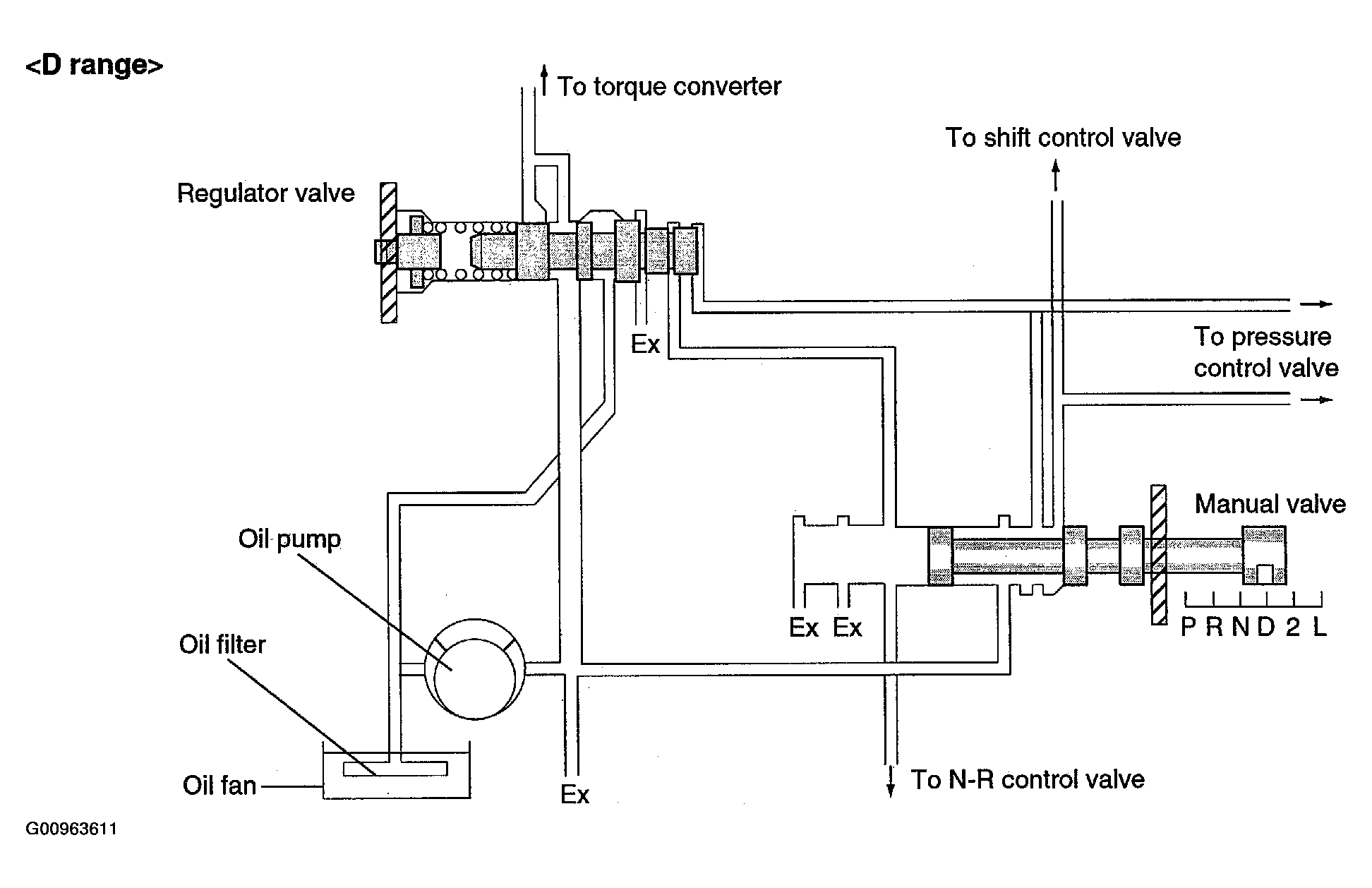

Fig 1: Manual Valve Hydraulic Control System In D-Range
Courtesy of HYUNDAI MOTOR CO.

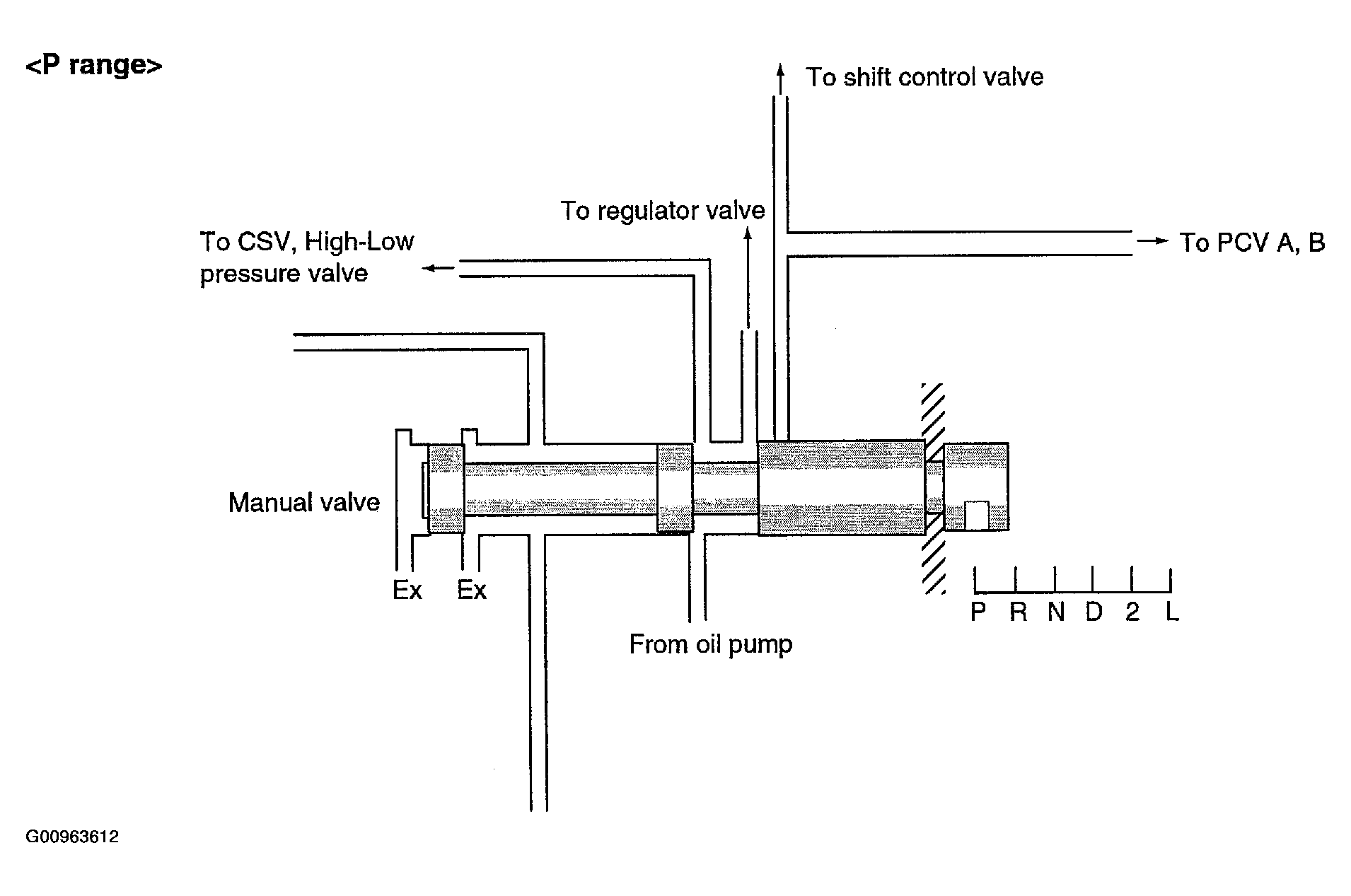

Fig 2: Manual Valve Hydraulic Control System In P-Range
Courtesy of HYUNDAI MOTOR CO.

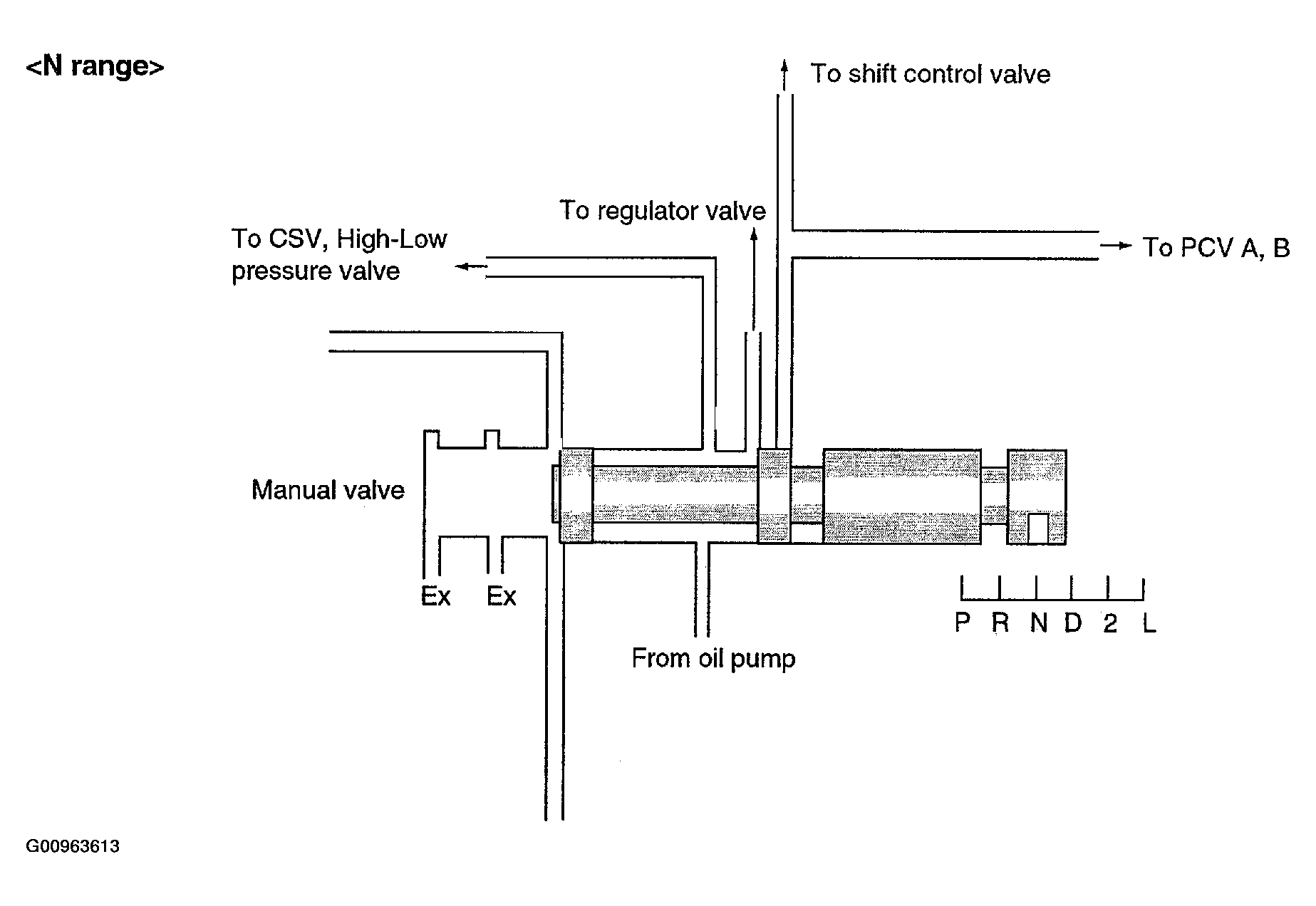

Fig 3: Manual Valve Hydraulic Control System In N-Range
Courtesy of HYUNDAI MOTOR CO.
