Control Switch Valve & E/C valve
WARNING: This page is about a different variant/trim than selected.
- Function
Switching the pressure of E/C and SA.

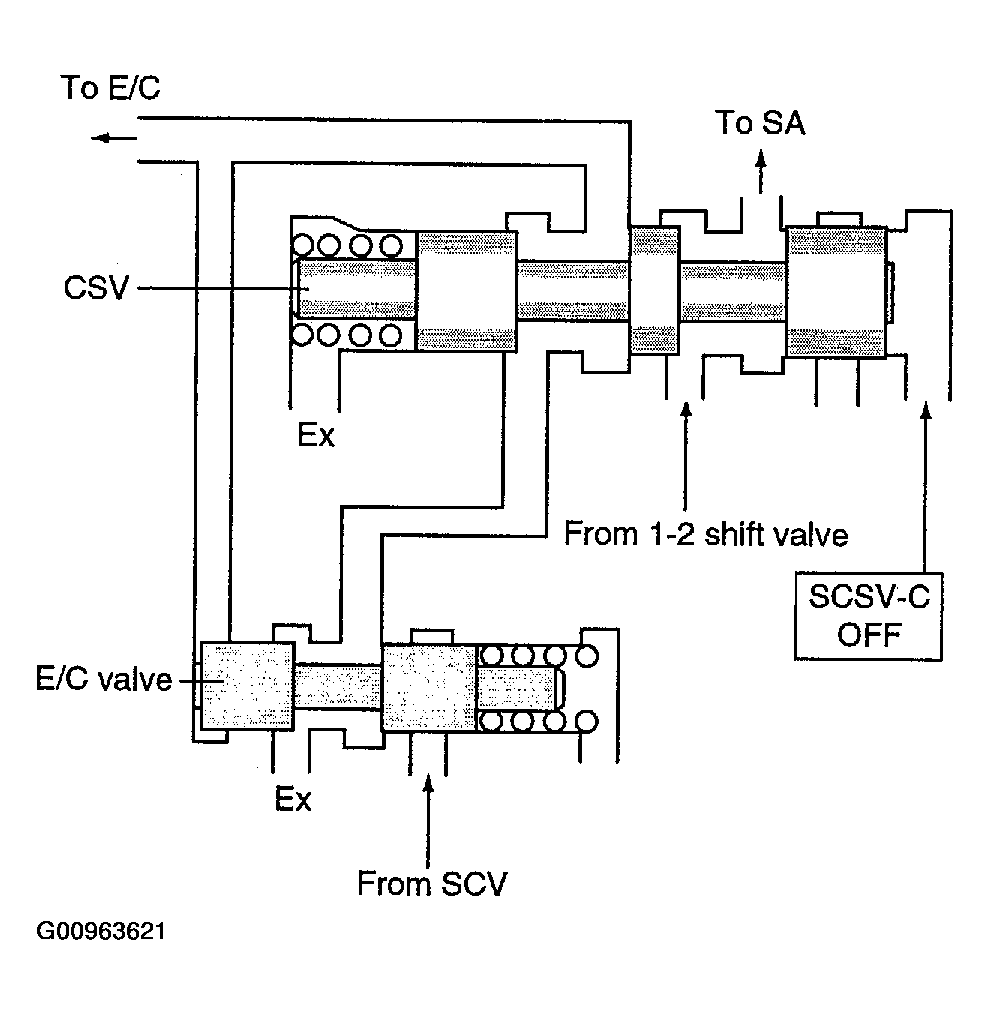

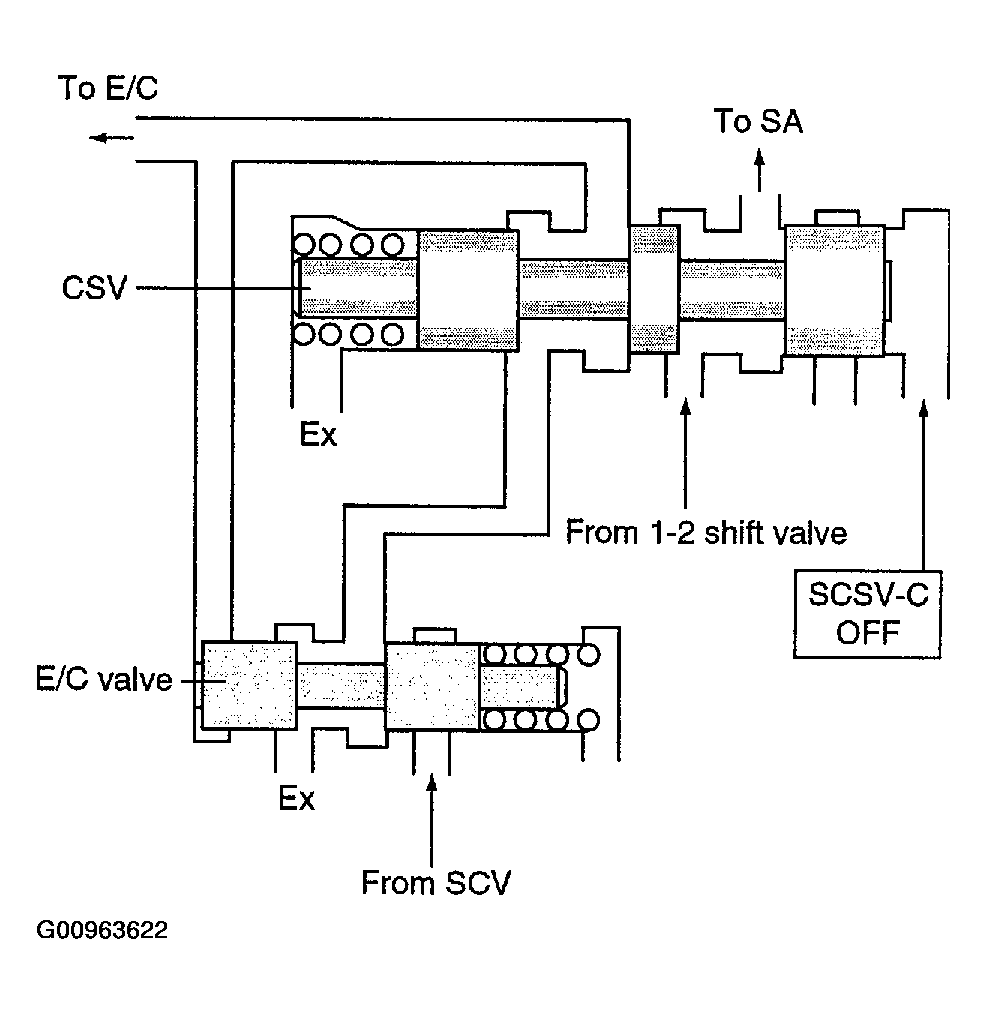

- 2nd. Gear
- The 2nd. pressure is supplied to SA through CSV.
- SCSV-C is OFF as well as 1st. gear.

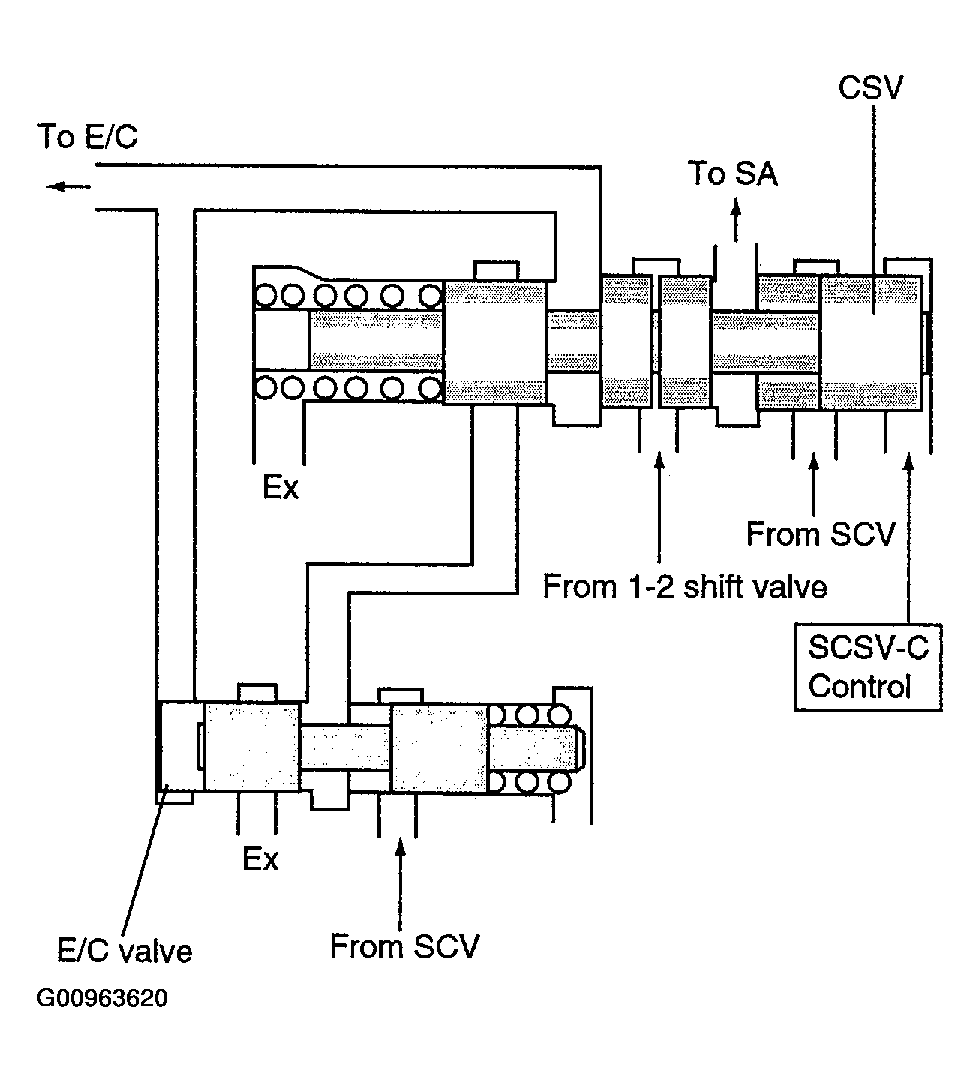

- 2nd. to 3rd. gear
- SCSV-C maintains OFF as well as 2nd gear.
- The E/C pressure from shift control valve is intercepted at the E/C valve during up-shifting from 2nd to 3rd gear.
- SA pressure is supplied from 1-2 shift valve, but the front clutch and SR pressure is also supplied from the 2-3/4-3 shift valve, so the both SR and SA pressure will be set off.

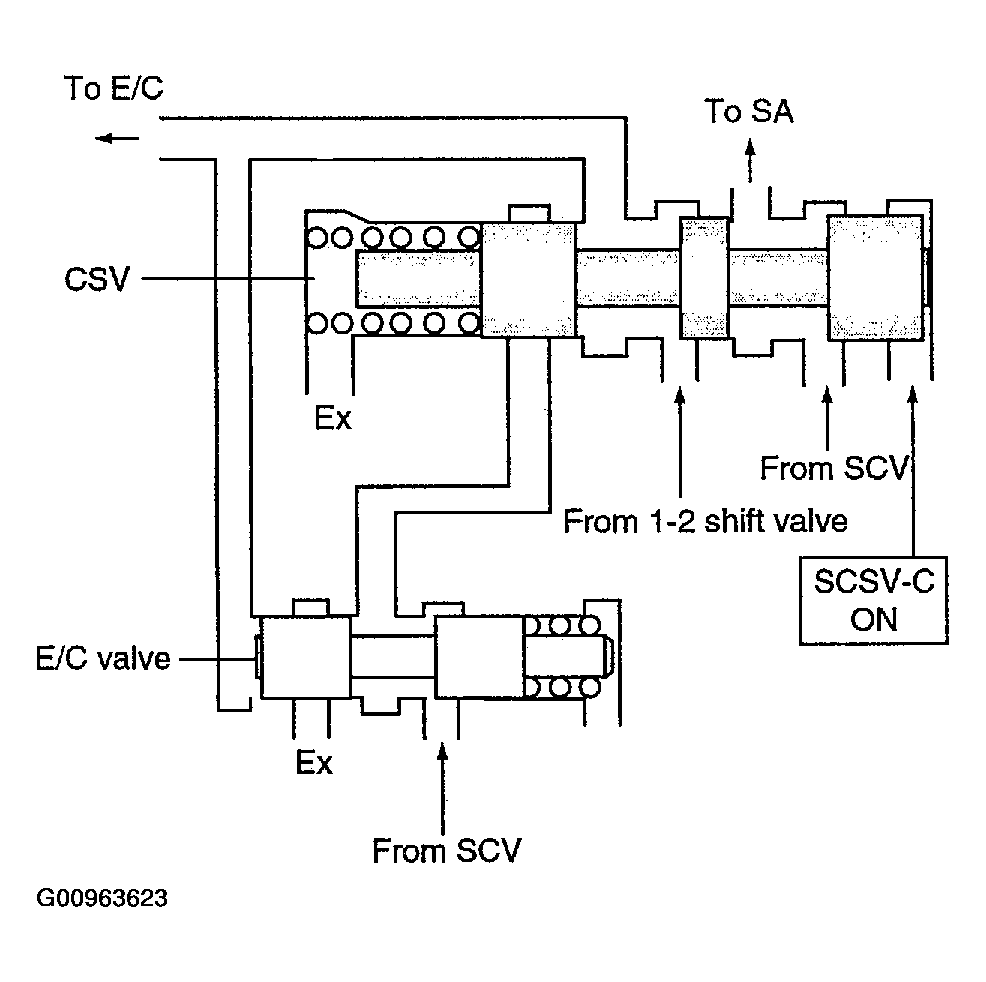

- 3rd. gear
- SCSV-C is changed from OFF to ON.
- The E/C pressure is supplied from 1-2 shift valve at the CSV after finishing the up-shifting from 2nd to 3rd gear.
- SA pressure is supplied from shift control valve, but the front clutch and SR pressure is also supplied from the 2-3/4-3 shift valve, so the both SR and SA pressure will be set off.
