Pressure Control Valve A, B: Overview

WARNING: This page is about a different variant/trim than selected.

Pressure control valve A, B regulate the pressure supplied to each clutch under the control of the pressure control solenoid valve A, B to eliminate shock at the time of shifting.

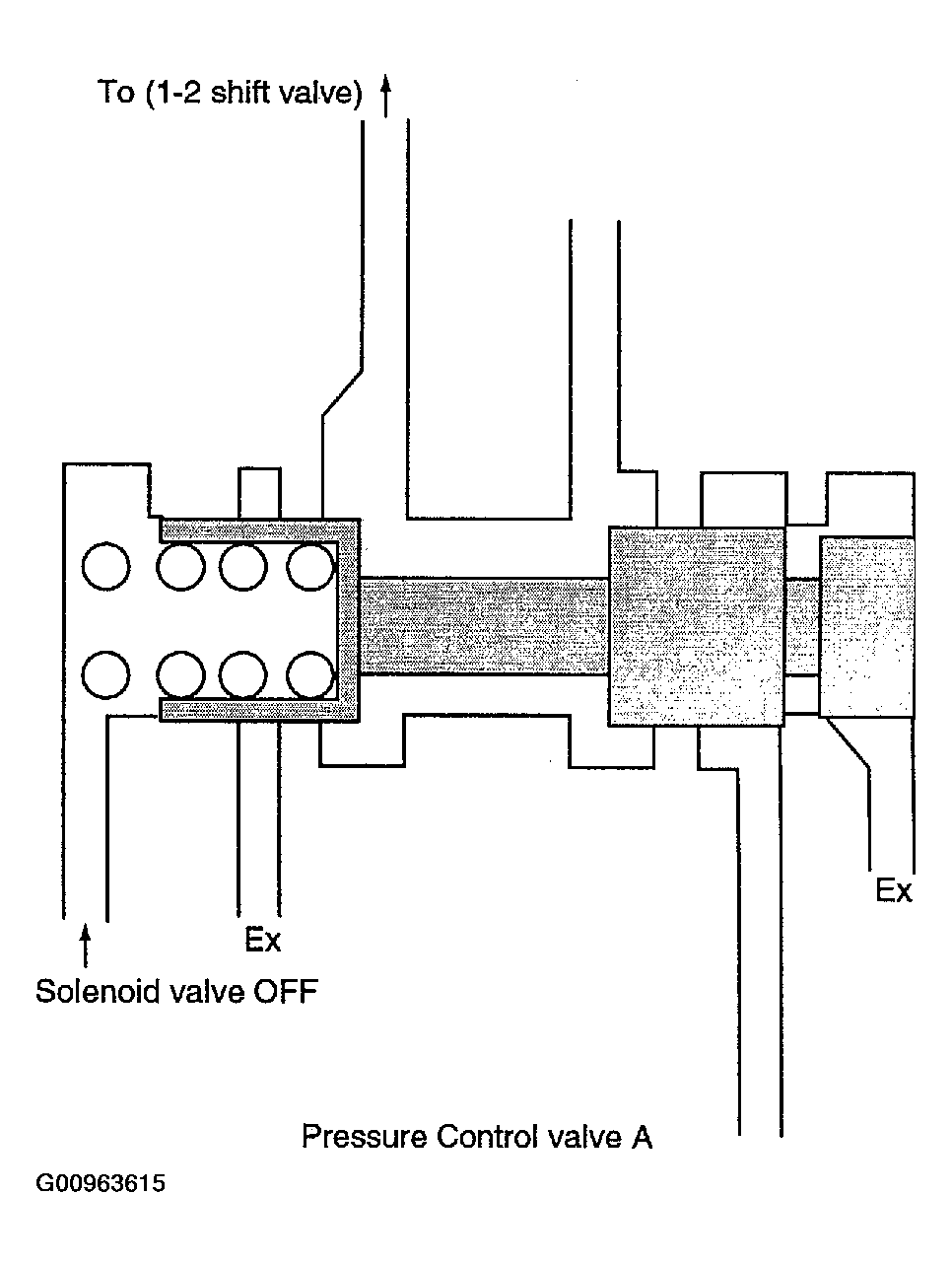

(1) pressure control valve A - Not operated

Fig 1: Pressure Control Valve A - Not Operated

Courtesy of HYUNDAI MOTOR CO.

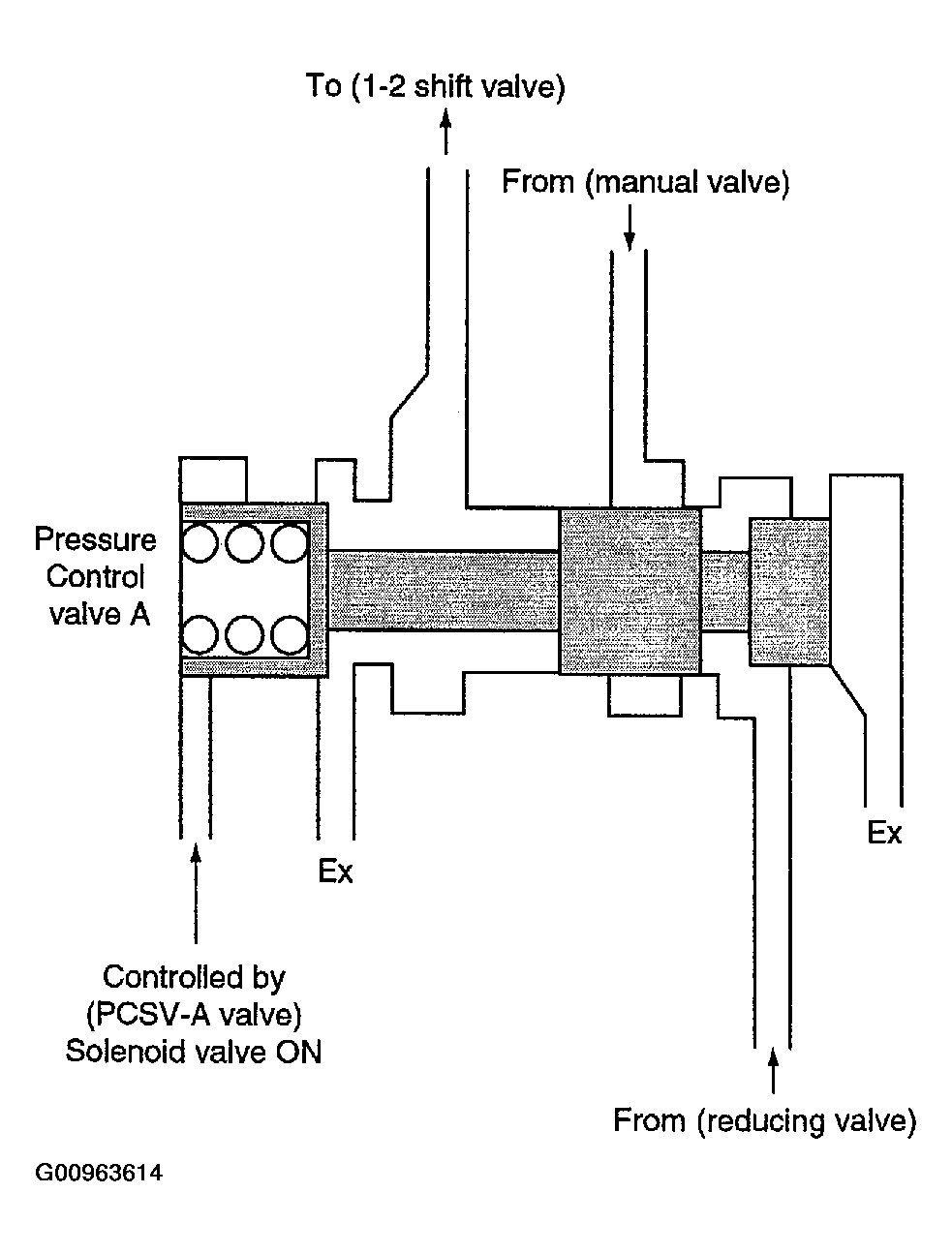

(1) Pressure control valve A - Operation

Fig 1: Pressure Control Valve A - Operation

Courtesy of HYUNDAI MOTOR CO.

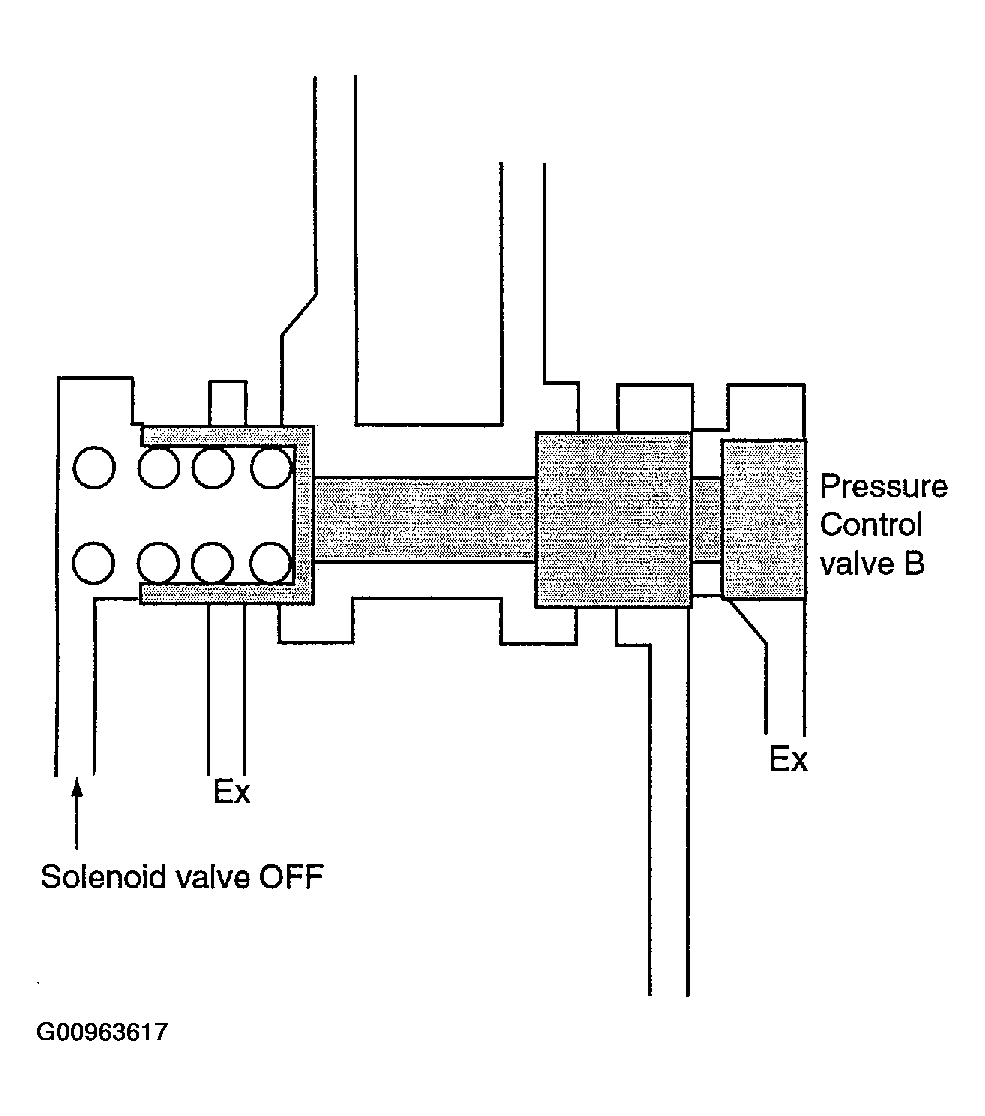

(2) Pressure control valve B - Not Operated

Fig 1: Pressure Control Valve B - Not Operated

Courtesy of HYUNDAI MOTOR CO.

(2) Pressure control valve B - Operation

Fig 1: Pressure Control Valve B - Not Operated

Courtesy of HYUNDAI MOTOR CO.

The main function of this valve controls the rear clutch independently.
