Inspection Chart For Trouble Symptoms: Notes

WARNING: This page is about a different variant/trim than selected.

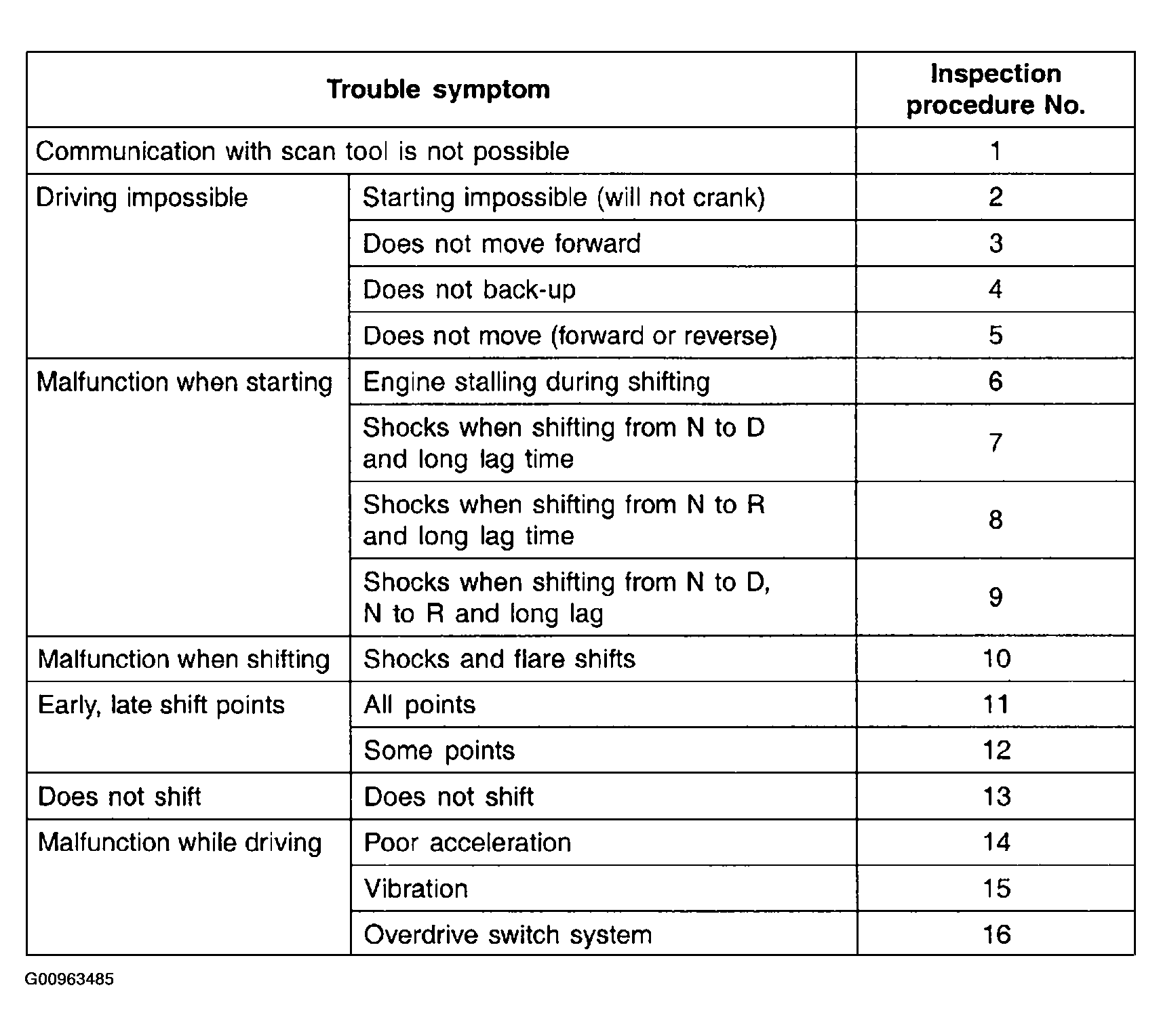

Fig 1: Trouble Symptom & Inspection Procedure Table
G00963485Courtesy of HYUNDAI MOTOR CO.
