Inspection Of Electronic Control System Components

WARNING: This page is about a different variant/trim than selected.

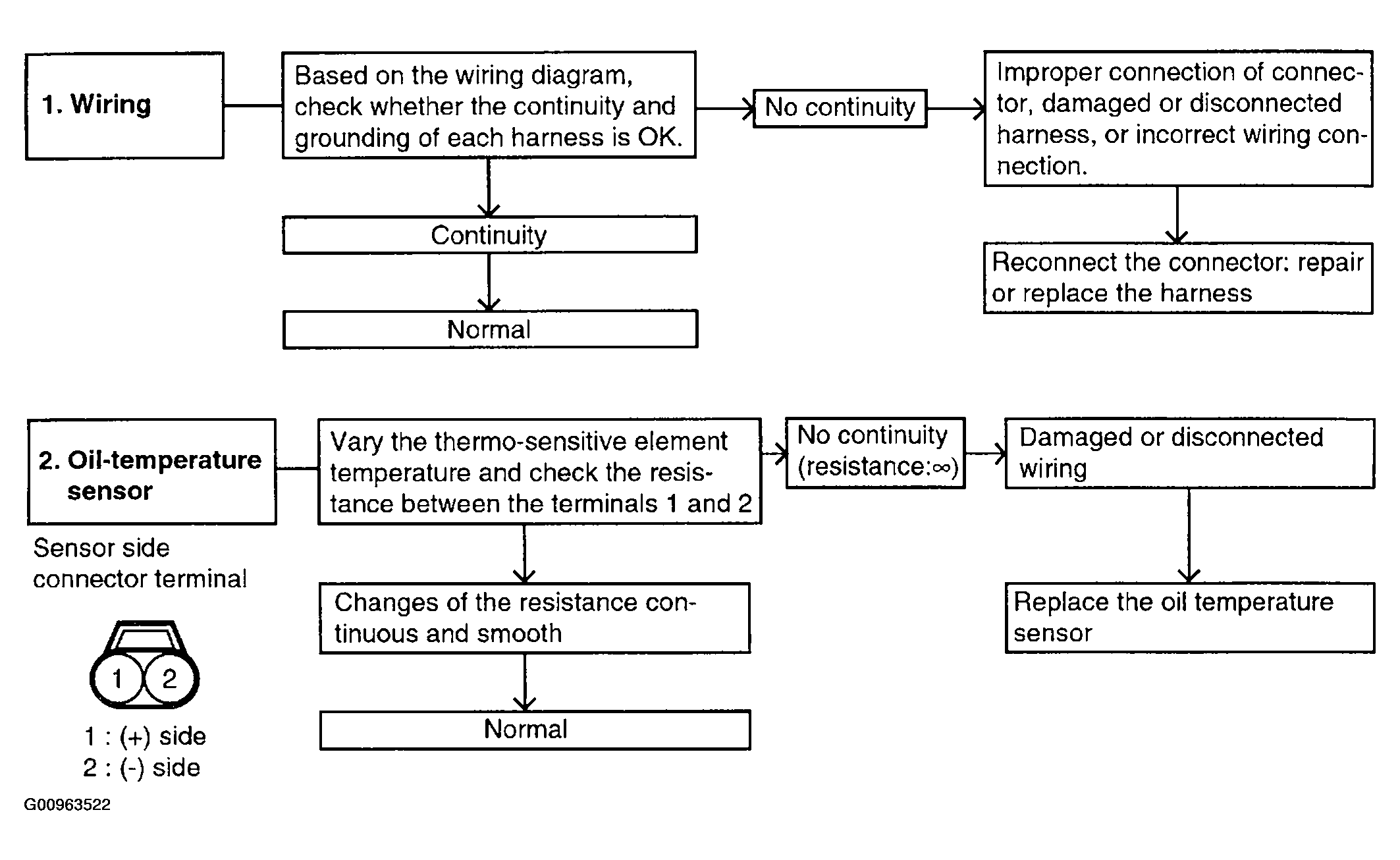

Fig 1: Wiring & Oil Temperature Sensor Inspection Flow Chart

Courtesy of HYUNDAI MOTOR CO.

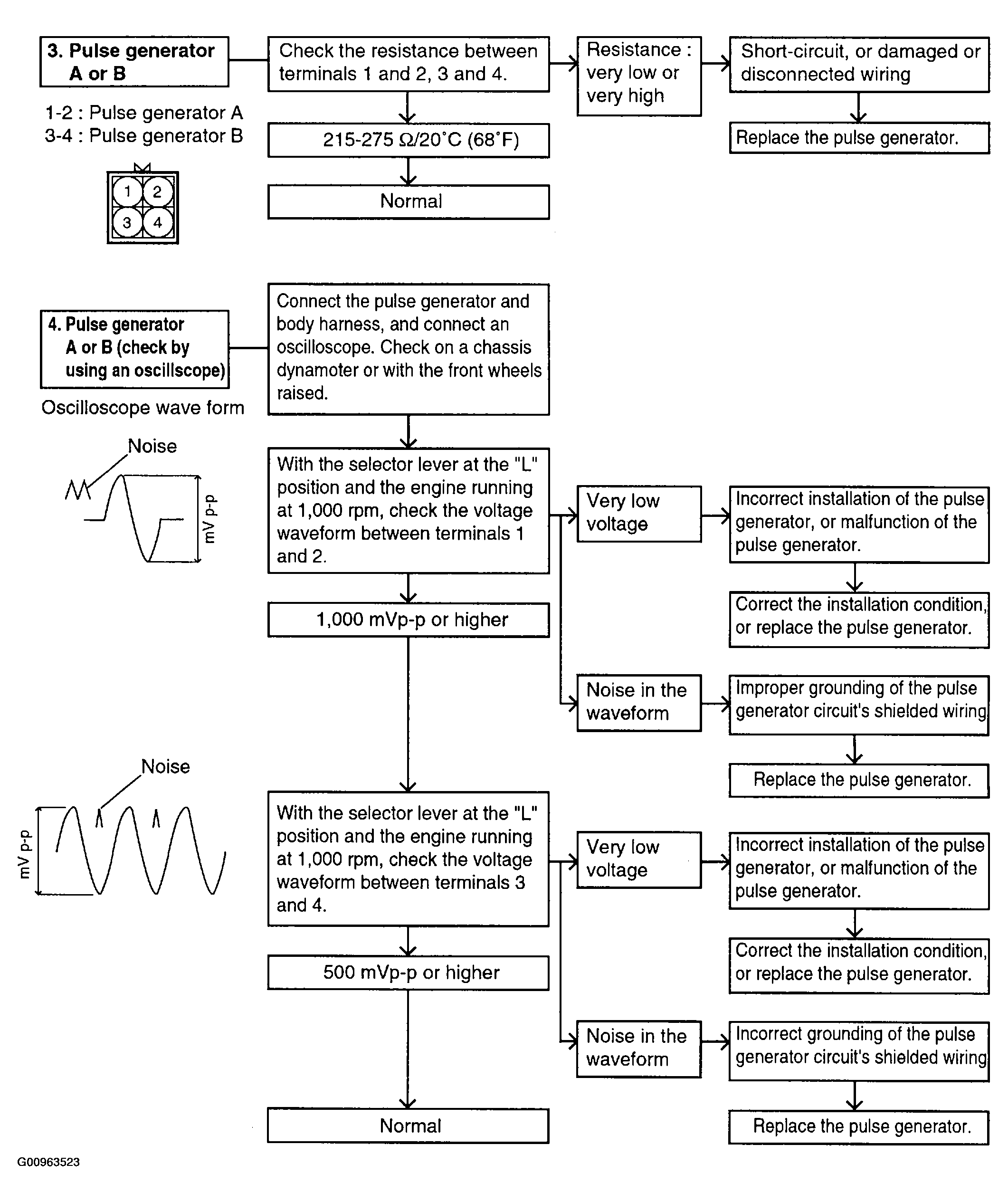

Fig 2: Pulse Generator A Or B Inspection Flow Chart

Courtesy of HYUNDAI MOTOR CO.

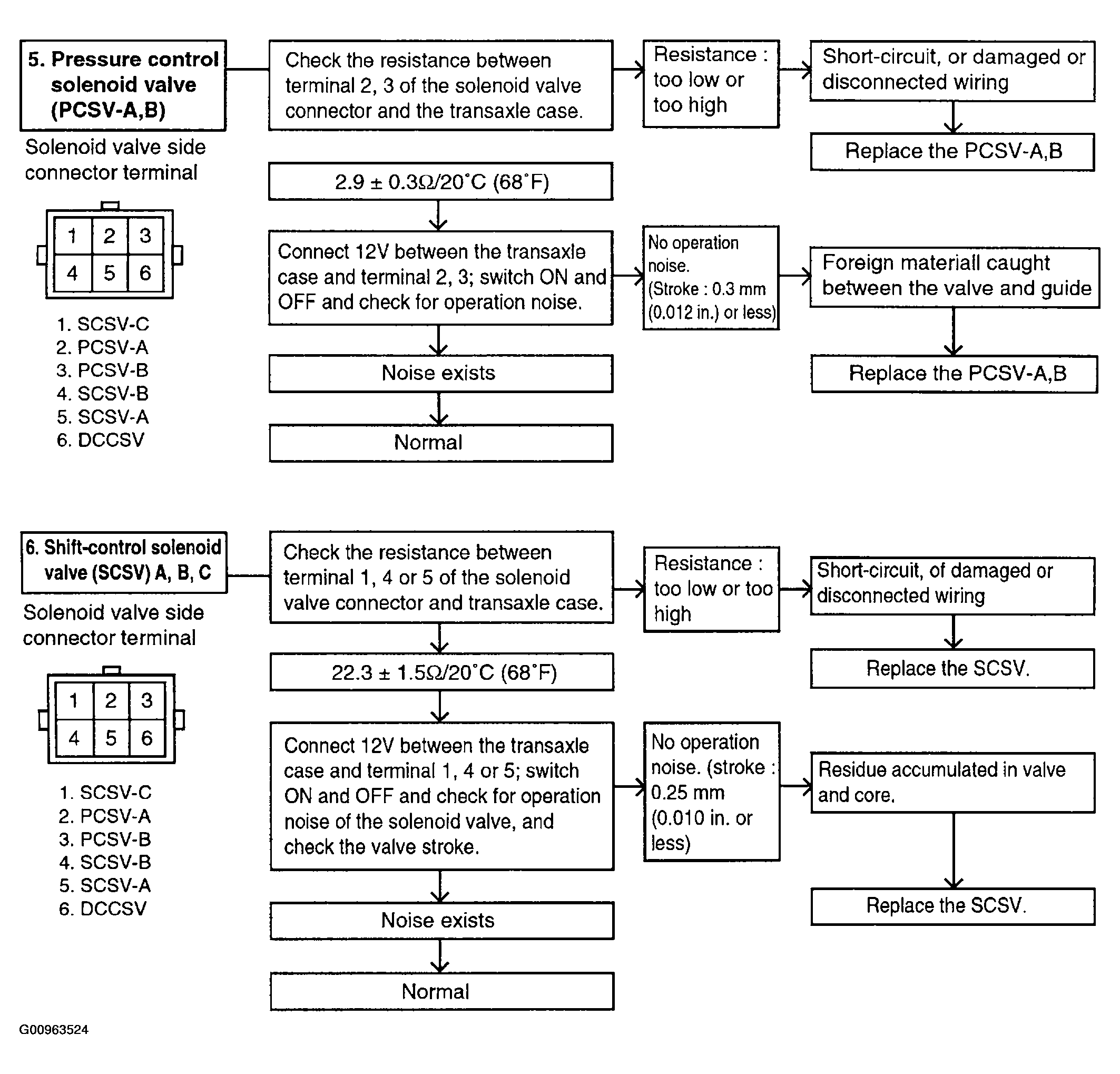

Fig 3: Pressure Control Solenoid Valve & Shift Control Solenoid Valve Inspection Flow Chart

Courtesy of HYUNDAI MOTOR CO.

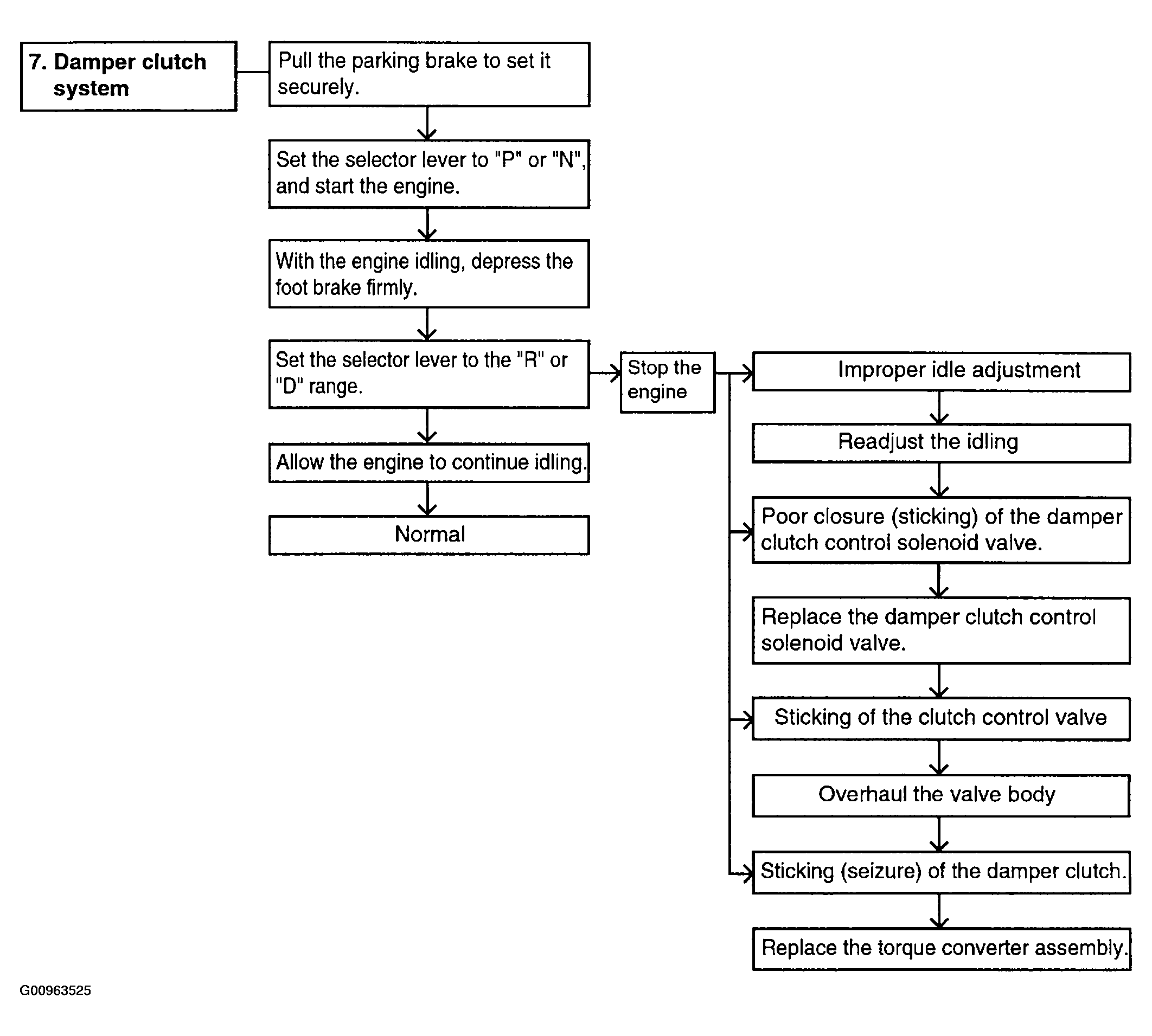

Fig 4: Damper Clutch System Inspection Flow Chart

Courtesy of HYUNDAI MOTOR CO.

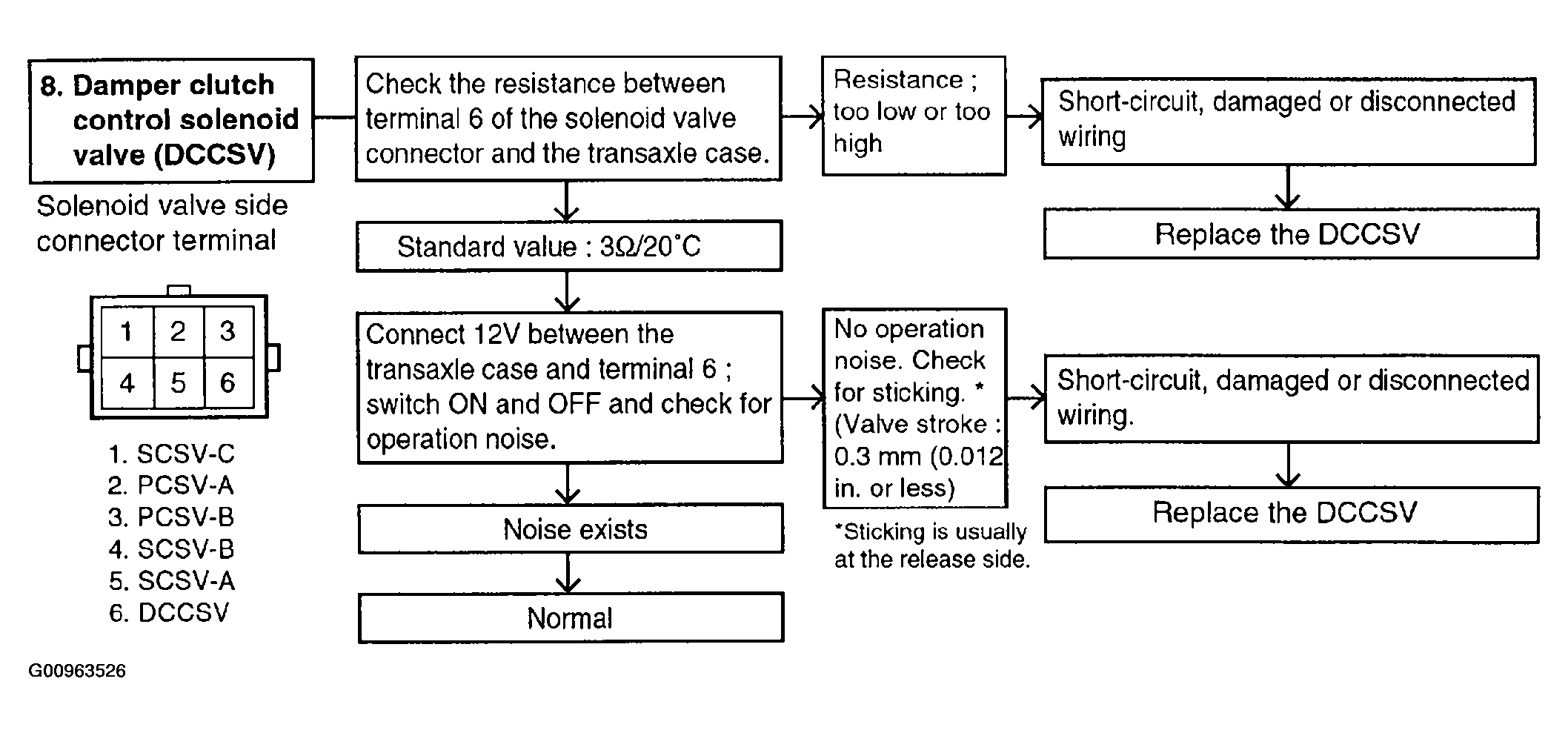

Fig 5: Damper Clutch Control Solenoid Valve Inspection Flow Chart

Courtesy of HYUNDAI MOTOR CO.

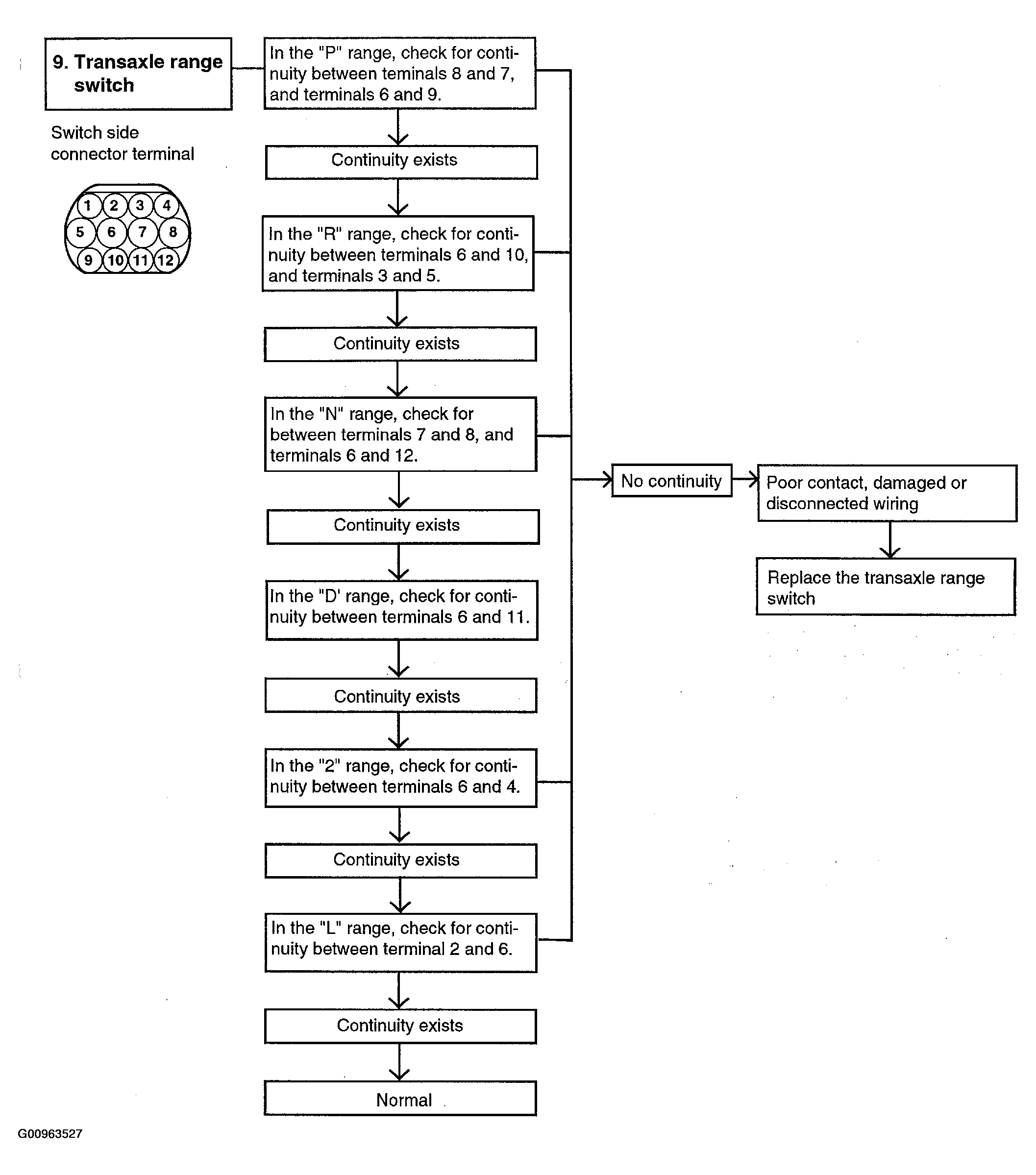

Fig 6: Transaxle Range Switch Inspection Flow Chart

Courtesy of HYUNDAI MOTOR CO.

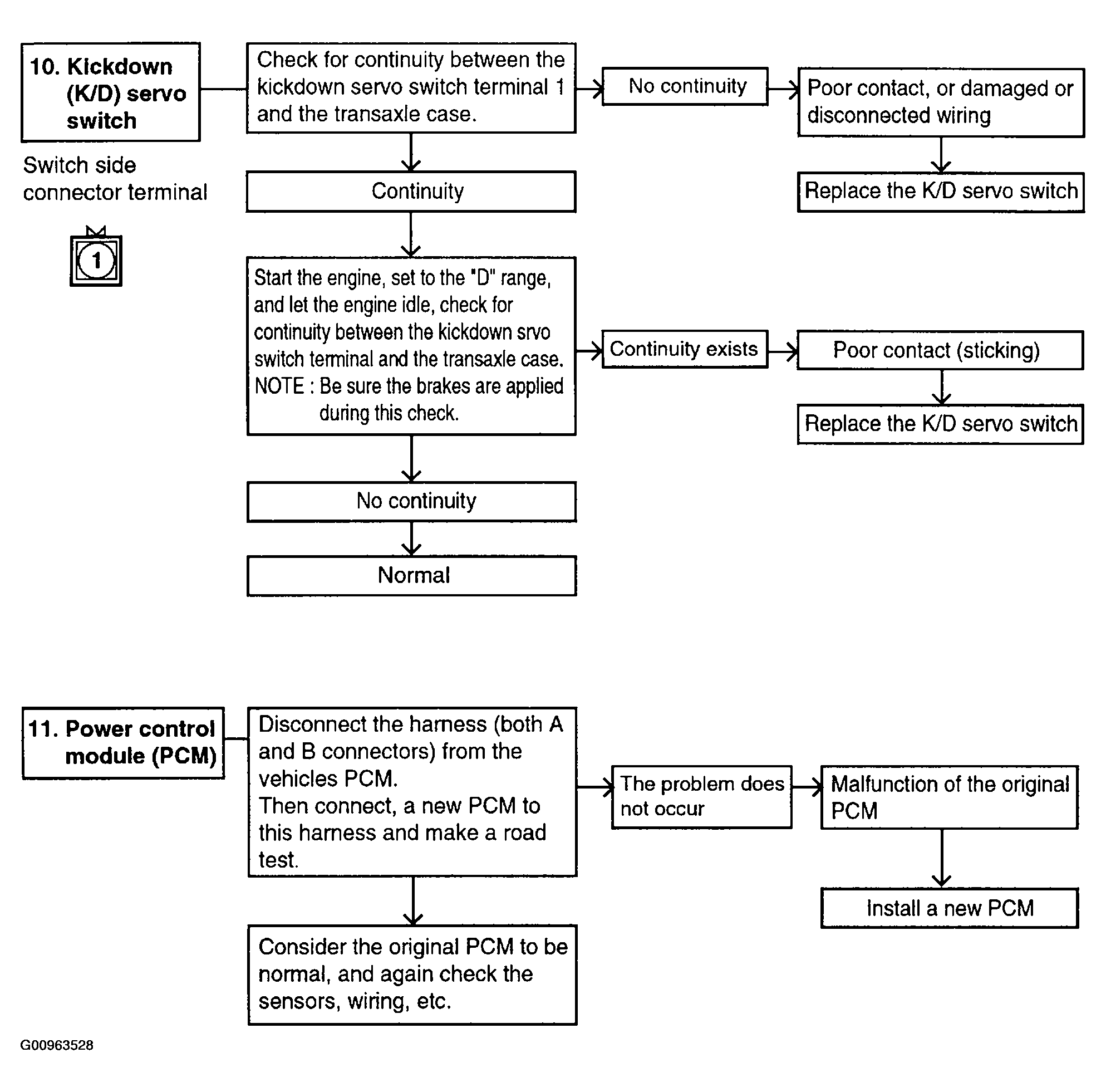

Fig 7: Kickdown Servo Switch & Power Control Module Inspection Flow Chart

Courtesy of HYUNDAI MOTOR CO.
