Shift Lever: Reassembly

WARNING: This page is about a different variant/trim than selected.

Apply a coating of grease to the sliding part of the bushing.
Specified grease: Chassis grease SAE J310, NLGI No.2

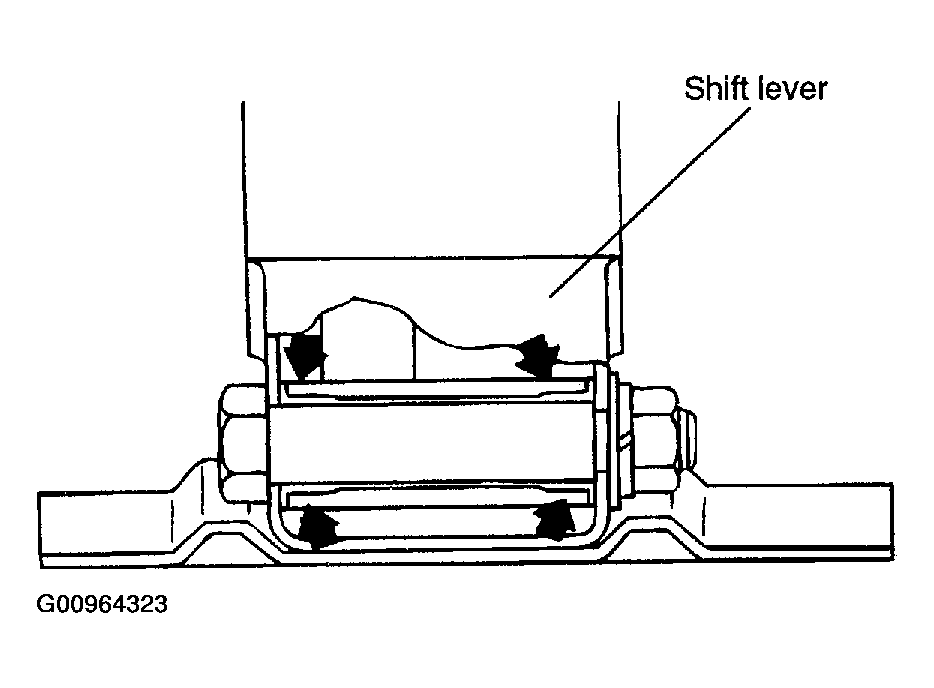

Fig 1: Applying A Coating Of Grease To Sliding Part Of Bushing
Courtesy of HYUNDAI MOTOR CO.
Apply the specified grease at the places shown in the figure.
Specified grease: Multipurpose grease SAE J310, NLGI No.2

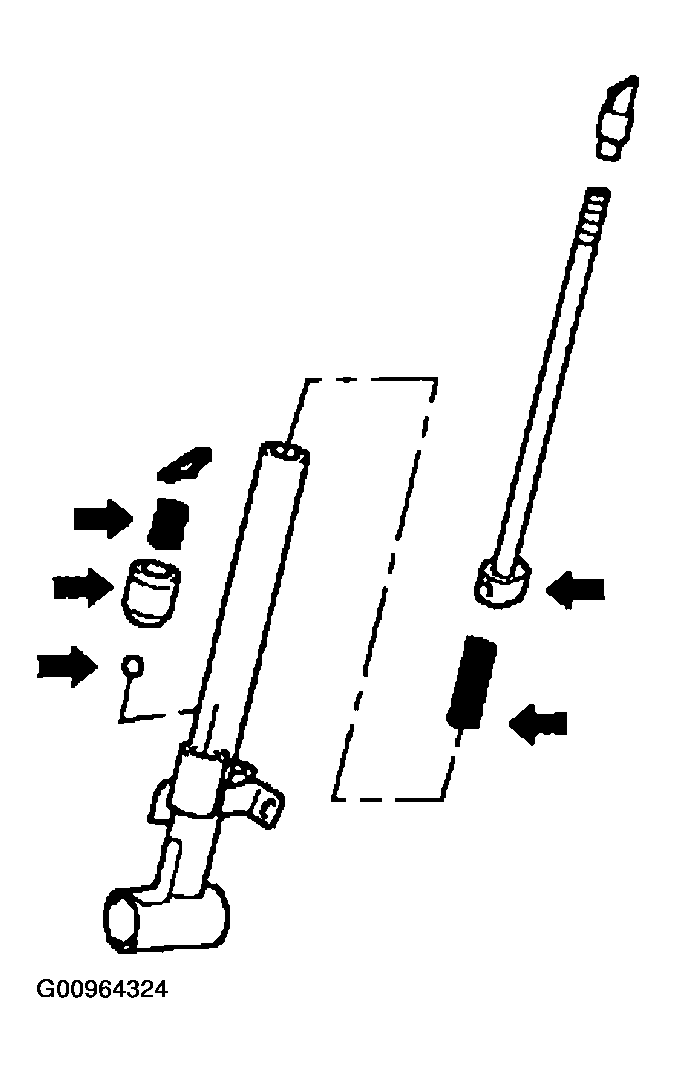

Fig 2: Applying Specified Grease
Courtesy of HYUNDAI MOTOR CO.
