Manual Steering Gear Box: Reassembly

Apply the specified grease to the rack, insert the rack into the gear housing, and then insert the pinion into the gear housing.
- Make sure that the rack is inserted into the gear housing from the left side.
- When inserting the pinion into the gear housing, the pinion gear should be in mesh with the rack gear.
- Wipe off excessive grease.

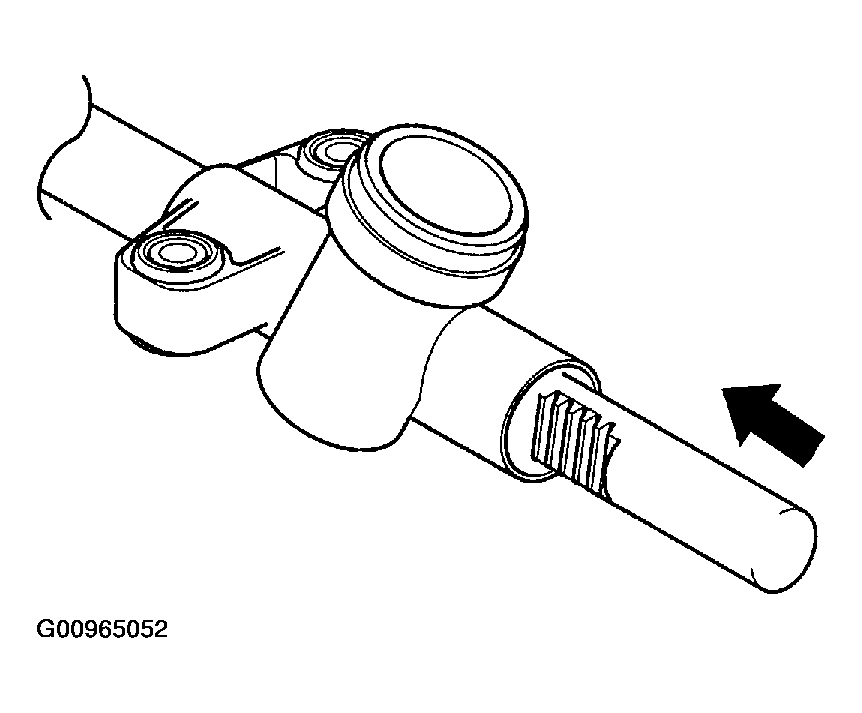

Fig 1: Inserting Rack Into The Gear Housing
Courtesy of HYUNDAI MOTOR CO.
Prior to oil seal installation in the gear box, apply grease to the surface of the oil seal.
NOTE: Be sure to use a new oil seal.
Install the rack support yoke, rack support spring, yoke plug, and lock nut to the pinion gear box.

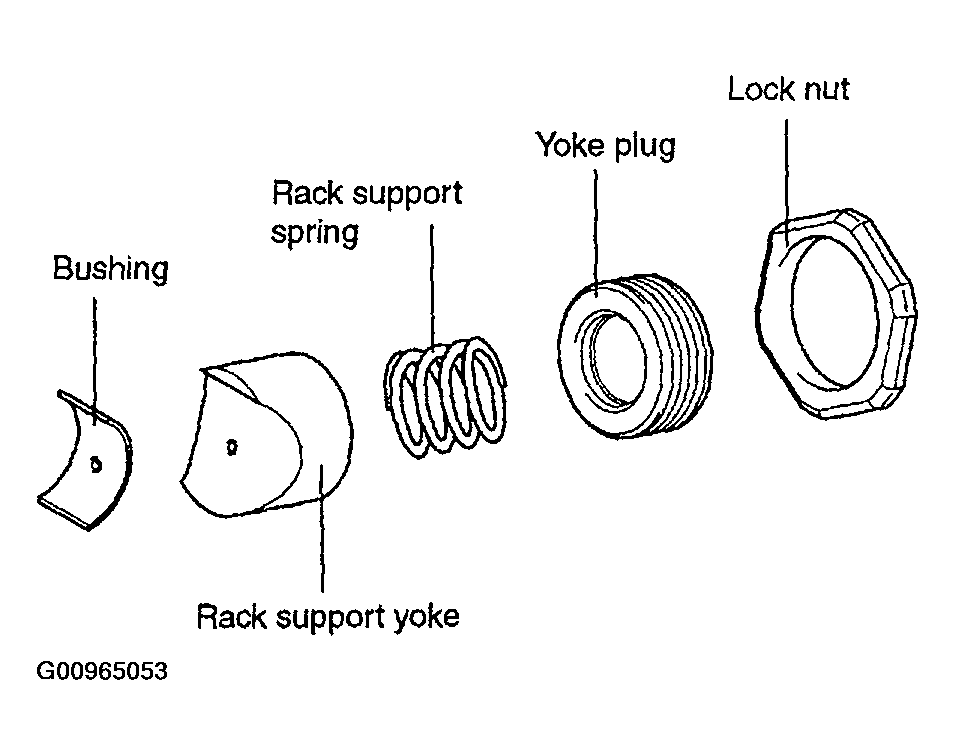

Fig 2: Installing Rack Support Yoke, Rack Support Spring, Yoke Plug, & Lock Nut Into The Pinion Gear Box
Courtesy of HYUNDAI MOTOR CO.
Tighten the yoke plug to 11 N.m (112 kg.cm, 8 lb.ft) and then back off 30°-60°. Secure the yoke plug with the lock nut.
CAUTION:
1. Adjust the yoke plug with the rack in the neutral position.
2. Apply a sealer between the lock nut and the housing.

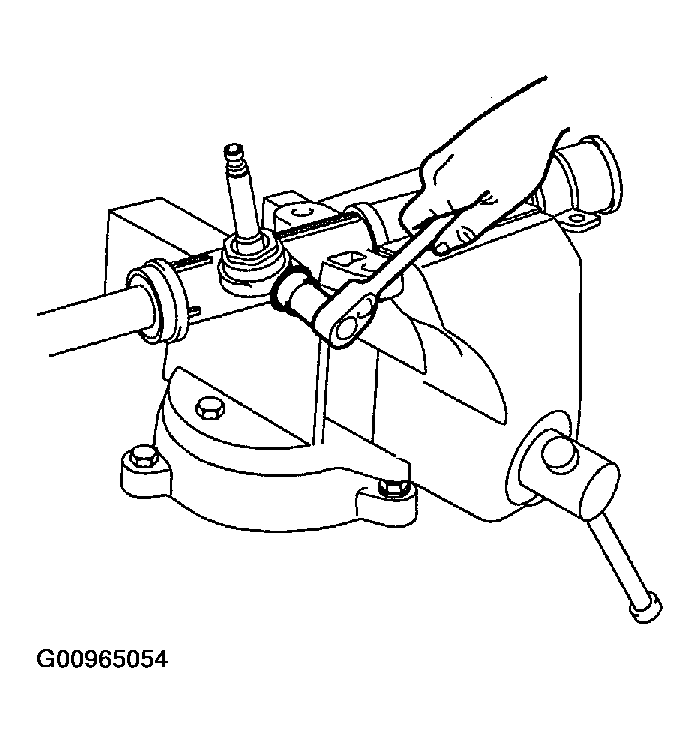

Fig 3: Tightening Yoke Plug
Courtesy of HYUNDAI MOTOR CO.
After installing the tie rod to the rack, punch on a point over the tie rod with a chisel.

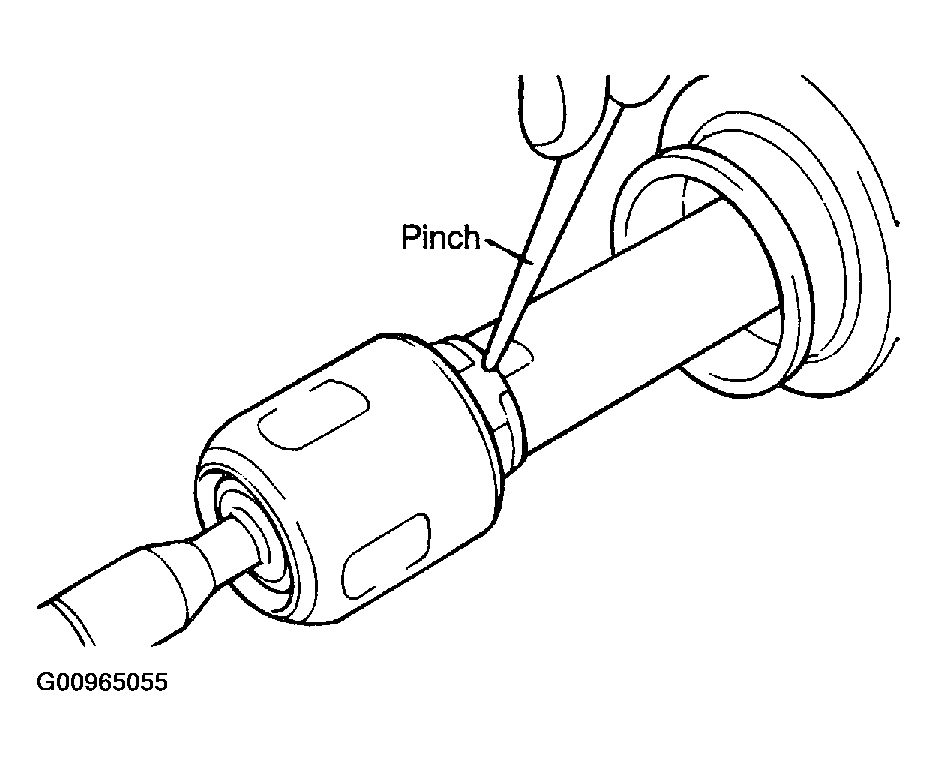

Fig 4: Punching Tie Rod With A Chisel
Courtesy of HYUNDAI MOTOR CO.
Install the bellows in position and fix it with the band and clip.

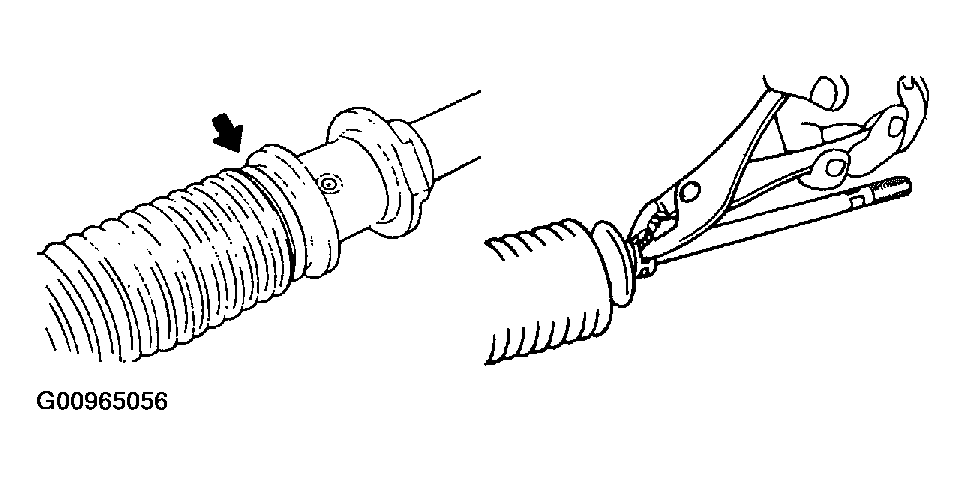

Fig 5: Installing Bellows
Courtesy of HYUNDAI MOTOR CO.
Mount tie rod end in a vise and install the dust cover to the tie rod end.

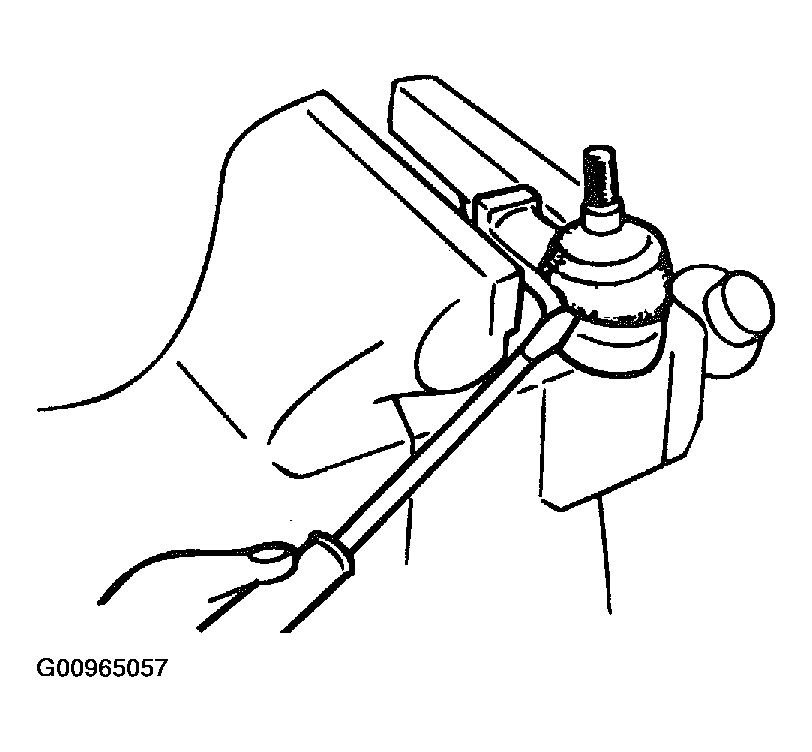

Fig 6: Mounting Tie Rod End In Vise
Courtesy of HYUNDAI MOTOR CO.
Install the tie rod to the tie rod end.

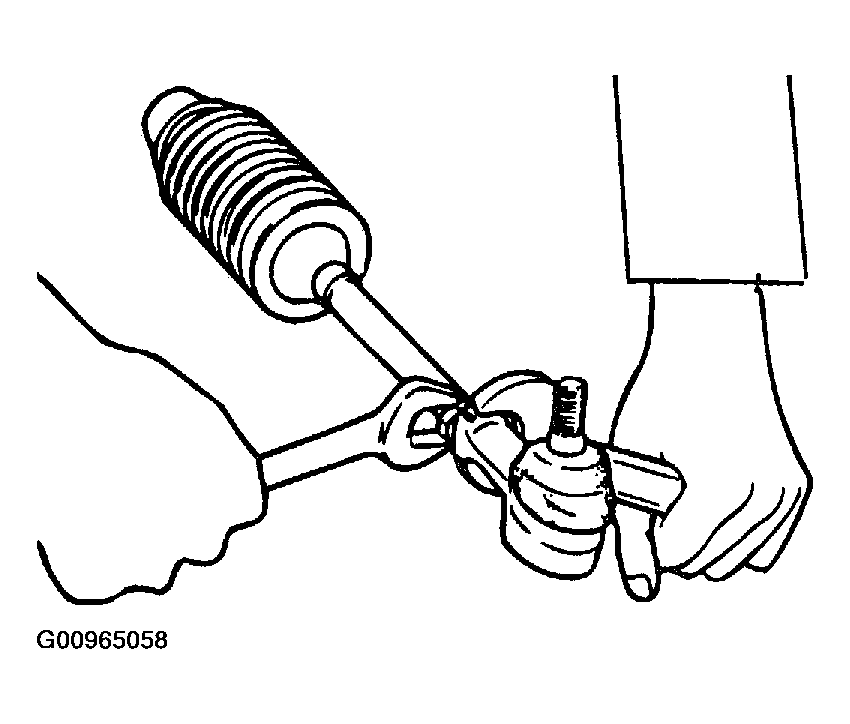

Fig 7: Installing Tie Rod To Tie Rod End

Courtesy of HYUNDAI MOTOR CO.
