Power Steering Hoses: Installation

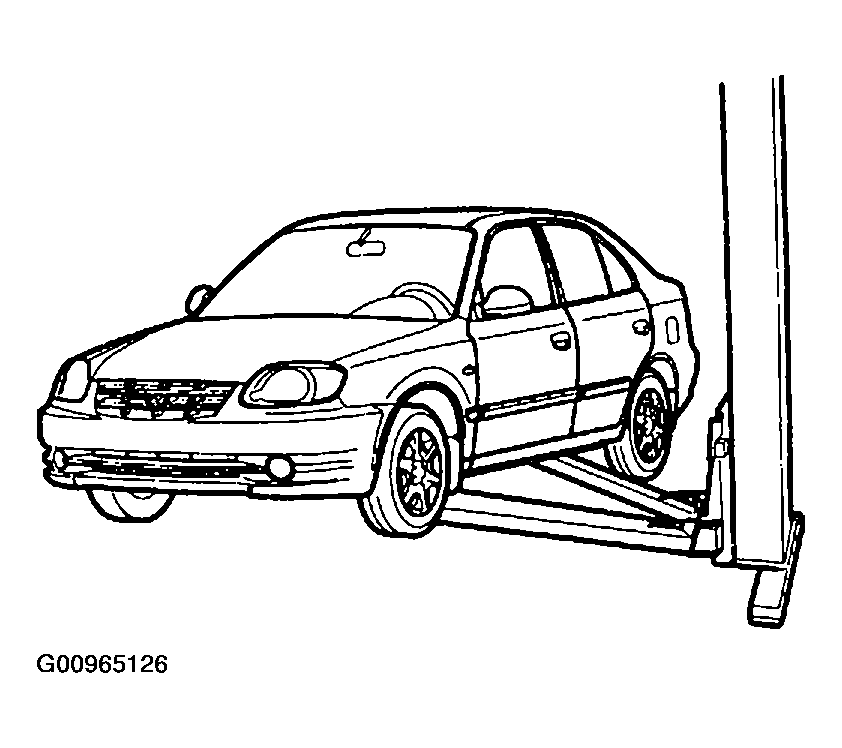

Support the specified portion of the vehicle with a lift.

Fig 1: Supporting Vehicle
Courtesy of HYUNDAI MOTOR CO.
Insert the color tube from the front pump upper part to the lower part and install 2 mounting bolts.

Fig 2: Inserting The Color Tube From The Front Pump Upper Part To The Lower Part
Courtesy of HYUNDAI MOTOR CO.

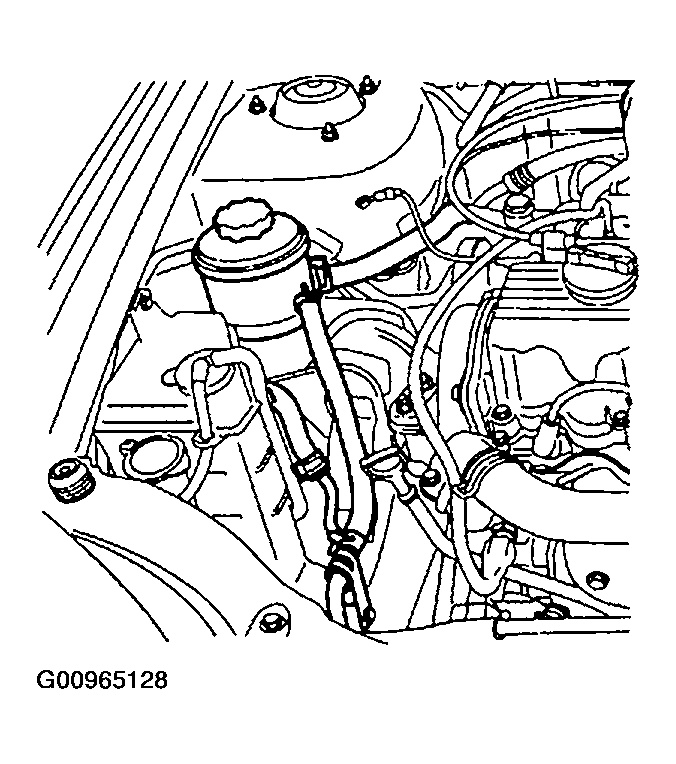

Connect the color tube to the power steering oil reservoir tank side hose, return tube and hose side and fix it with clips. (When installing the color tube)

Fig 3: Connecting The Color Tube To The Power Steering Oil Reservoir Tank Side Hose, Return Tube & Hose Side
Courtesy of HYUNDAI MOTOR CO.

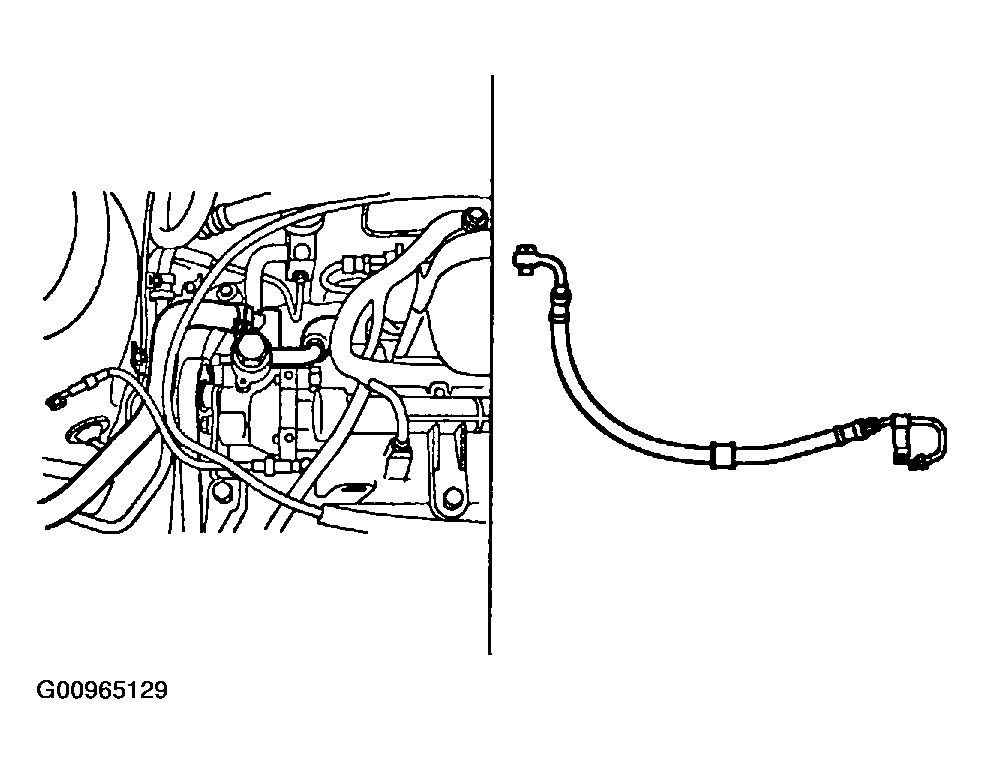

Place the pressure hose and tube assembly in position and connect it to the oil pump. (When installing the pressure hose and tube)

Fig 4: Place The Pressure Hose And Tube Assembly In Position & Connect It To The Oil Pump
Courtesy of HYUNDAI MOTOR CO.

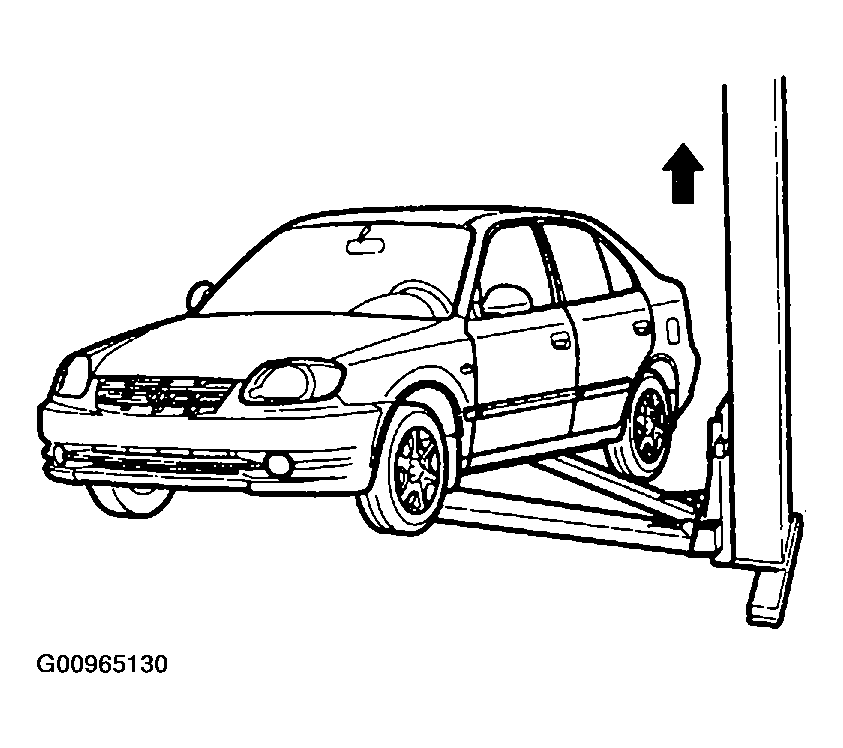

Raise the vehicle with a lift.

Fig 5: Raising Vehicle
Courtesy of HYUNDAI MOTOR CO.

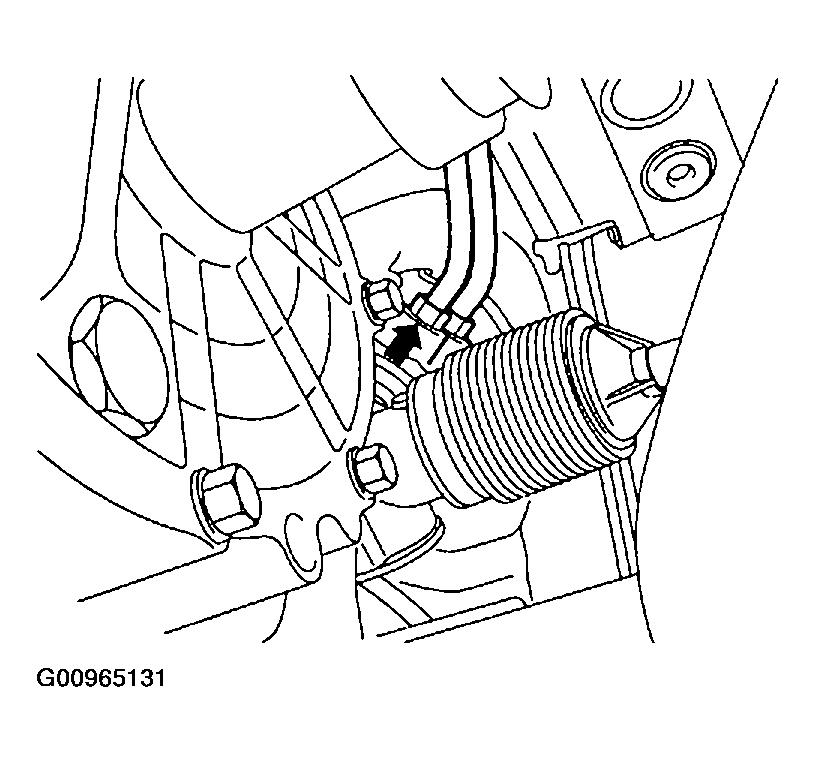

Fix the pressure tube and return tube fitting to the power steering gear box.

Fig 6: Fixing Pressure Tube & Return Tube Fitting To Power Steering Gear Box
Courtesy of HYUNDAI MOTOR CO.

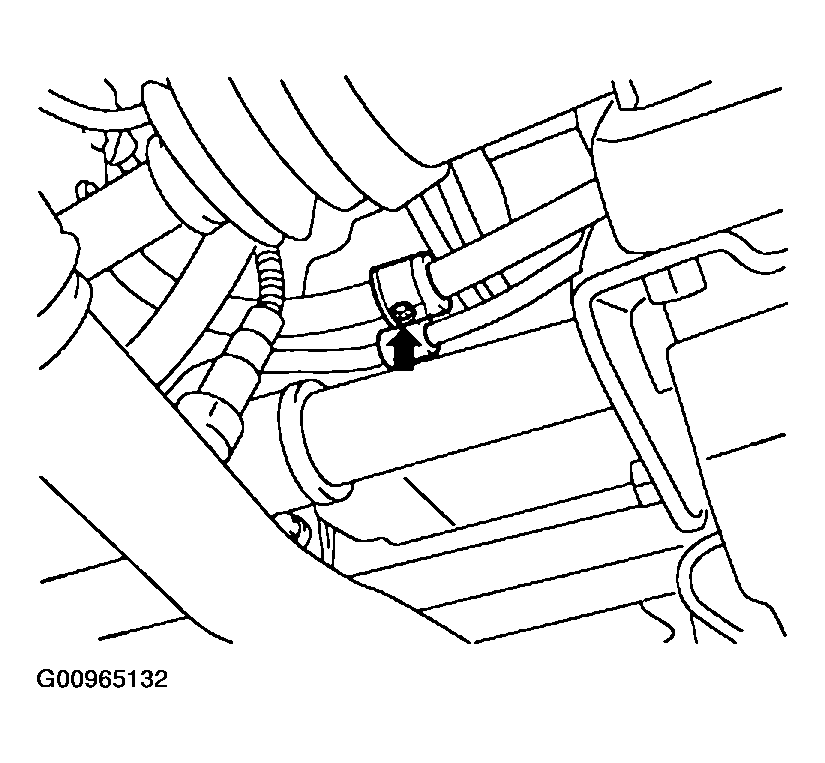

Fix the power steering pressure tube and return tube mounting clamp with a bolt.

Fig 7: Fixing The Power Steering Pressure Tube & Return Tube Mounting Clamp
Courtesy of HYUNDAI MOTOR CO.
Lower the vehicle.

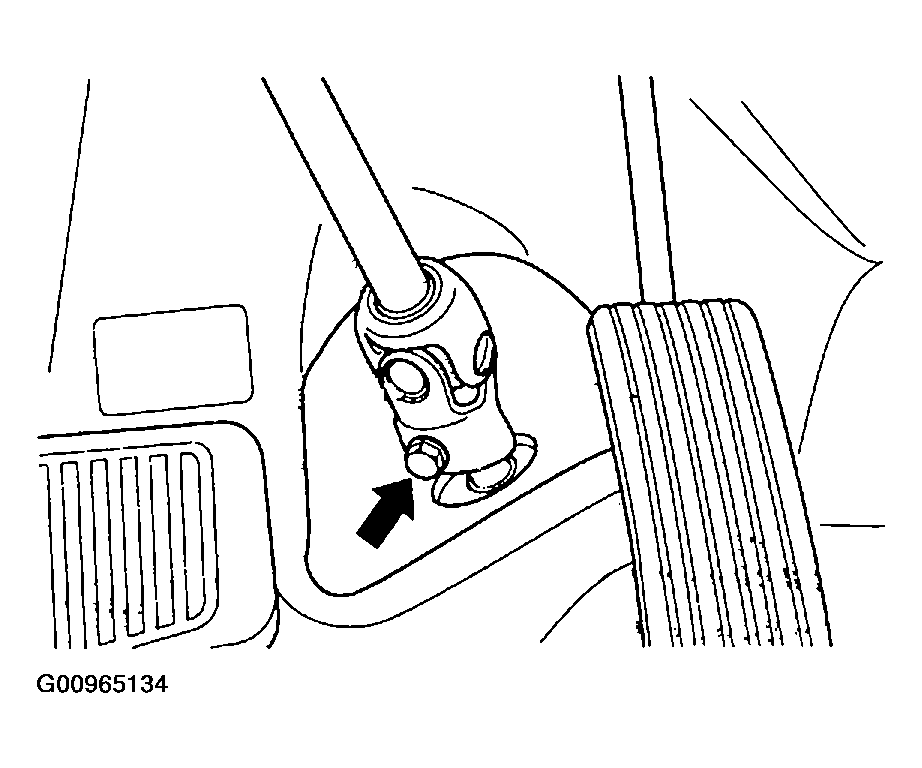

Connect the gear box and steering column shaft universal joint in the passenger compartment.

Fig 8: Connecting The Gear Box & Steering Column Shaft Universal Joint
Courtesy of HYUNDAI MOTOR CO.
Connect the tie rod end to the LH/RH knuckles.
Install the tires (LH/RH).
Fill the power steering oil reservoir with fluid.
