Timing Chart

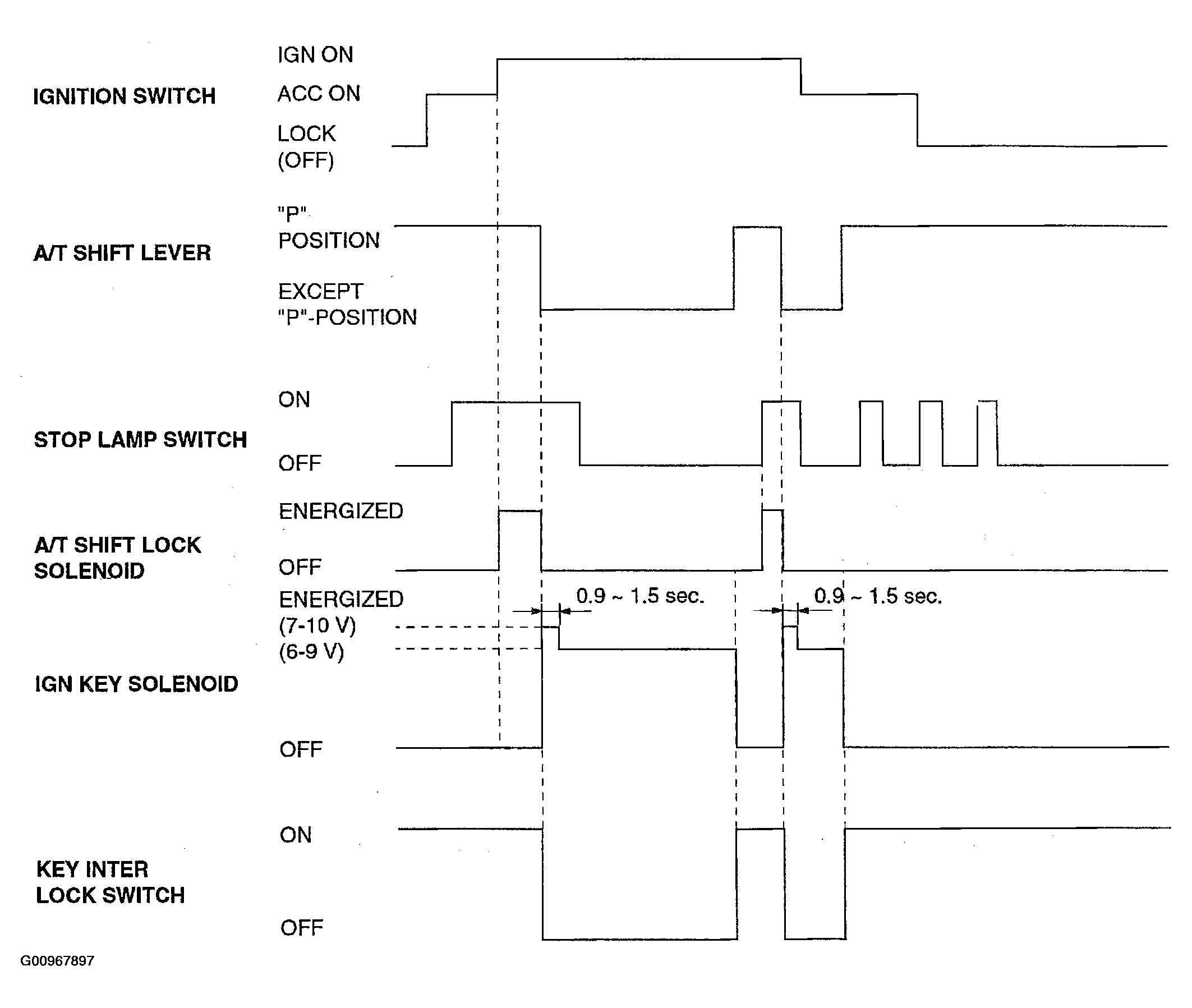

Fig 1: Shift & Key Lock Control System Timing Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
