Clutch Control: Components

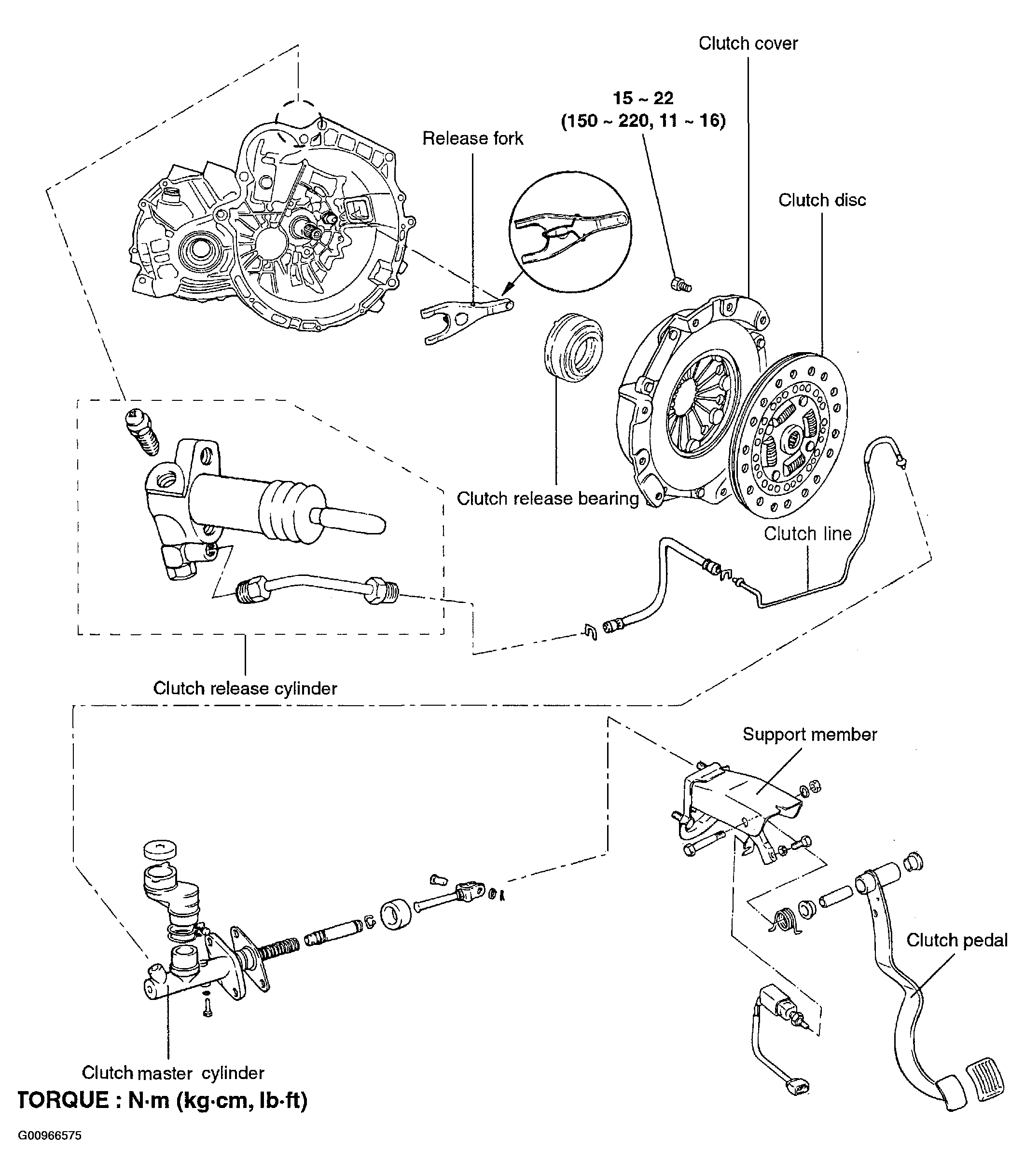

Fig 1: Clutch Control Components

G00966575

Courtesy of HYUNDAI MOTOR CO.
